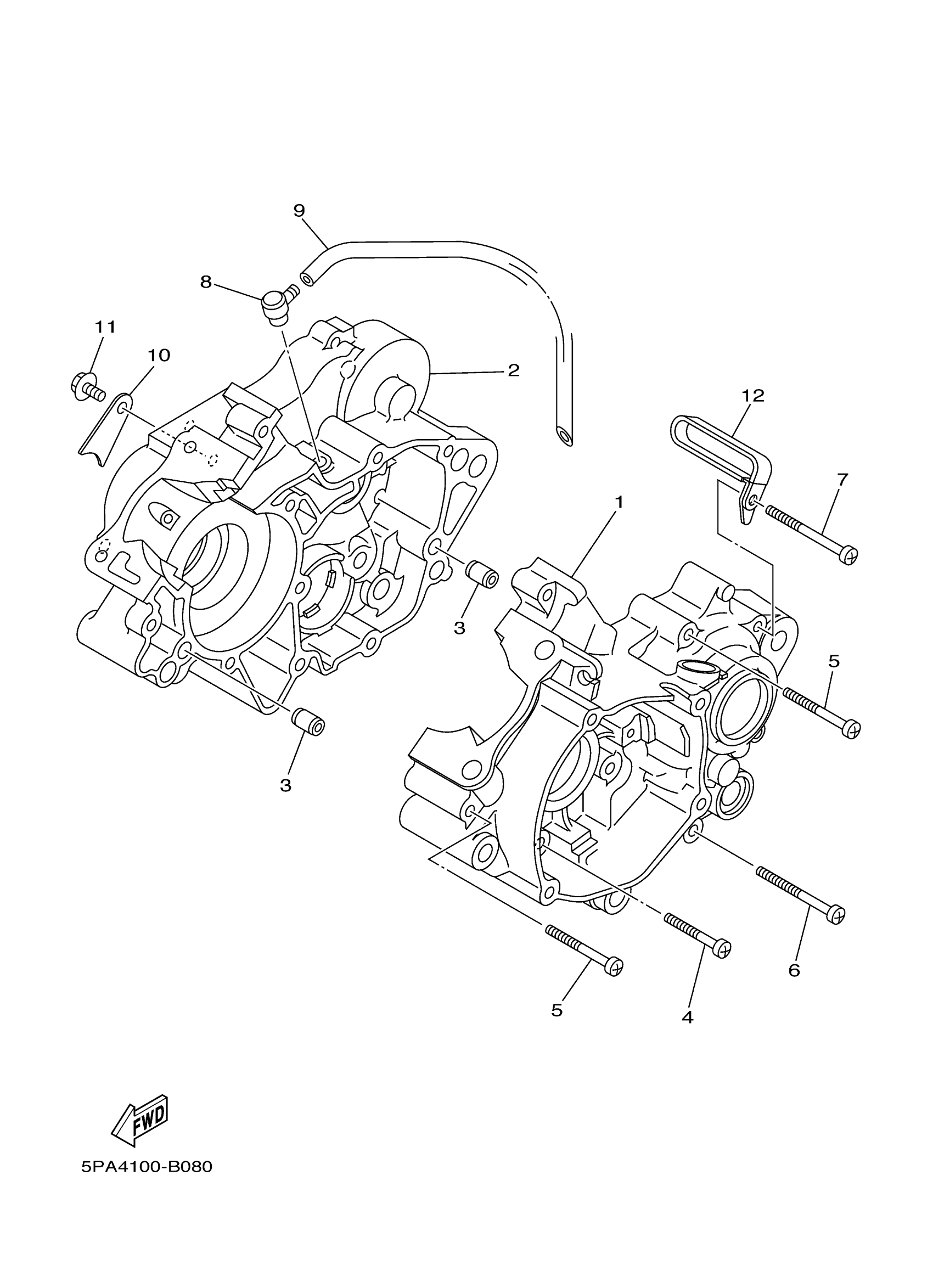

Yamaha YZ85A (YZ85) 5PAV 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

5PA-15111-00-00

Unavailable

2

CRANKCASE 2

5PA-15121-10-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

SCREW, PAN HEAD

98502-06040-00

$3.28

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW, PAN

98507-06060-00

$7.99

7

SCREW PAN HEAD

98580-06570-00

$18.99

8

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

9

HOSE (L340)

90445-08684-00

$4.29

10

HOLDER

5PA-15118-00-00

$6.99

11

BOLT, FLANGE

95022-08012-00

$12.49

12

CLAMP(4NX)

90461-10136-00

$23.99
