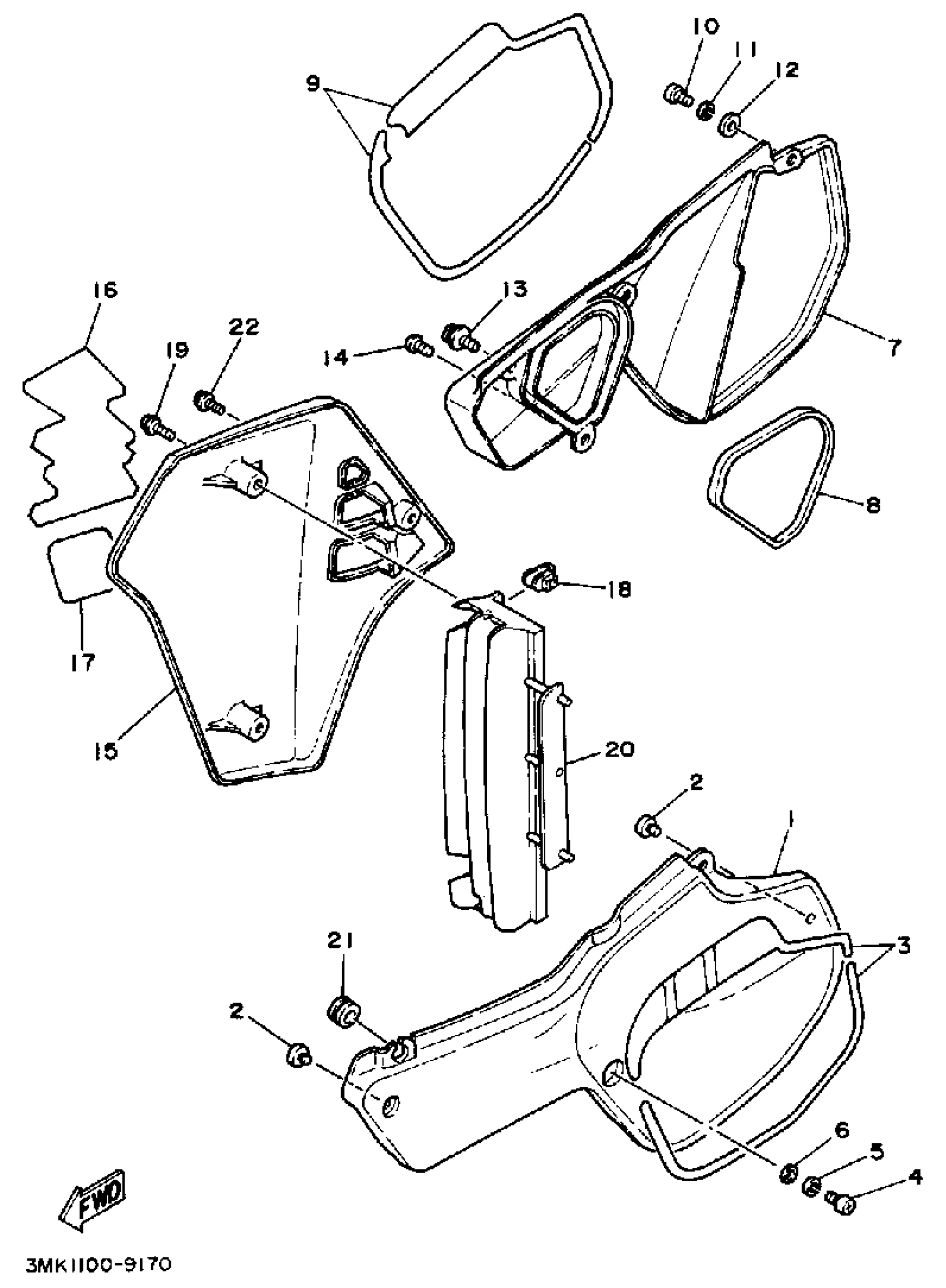

Yamaha YZ80W (YZ80W) 1989 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

39K-21711-11-00

Unavailable

2

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

3

GRAPHIC SET 1

3MM-2173L-00-00

Unavailable

4

SCREW, PAN

98507-06014-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

7

COVER, SIDE 2

2HF-21721-00-98

Unavailable

8

SEAL

39W-14452-00-00

Unavailable

9

GRAPHIC SET 2

3MM-2174L-00-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

13

SCREW, W/WASHER

90159-06032-00

Unavailable

14

SCREW, BIND(1JK)

98980-06010-00

$9.49

15

COVER, SIDE 4

2HF-21741-00-00

Unavailable

16

GRAPHIC, FUEL TNK 2

3JD-24245-01-00

Unavailable

17

EMBLEM 1

3MM-21781-00-00

Unavailable

18

NUT

22W-21791-00-00

Unavailable

19

SCREW, WITH WASHER

90159-05101-00

Unavailable

20

PANEL 1

1LR-2172A-00-00

Unavailable

21

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

22

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable
