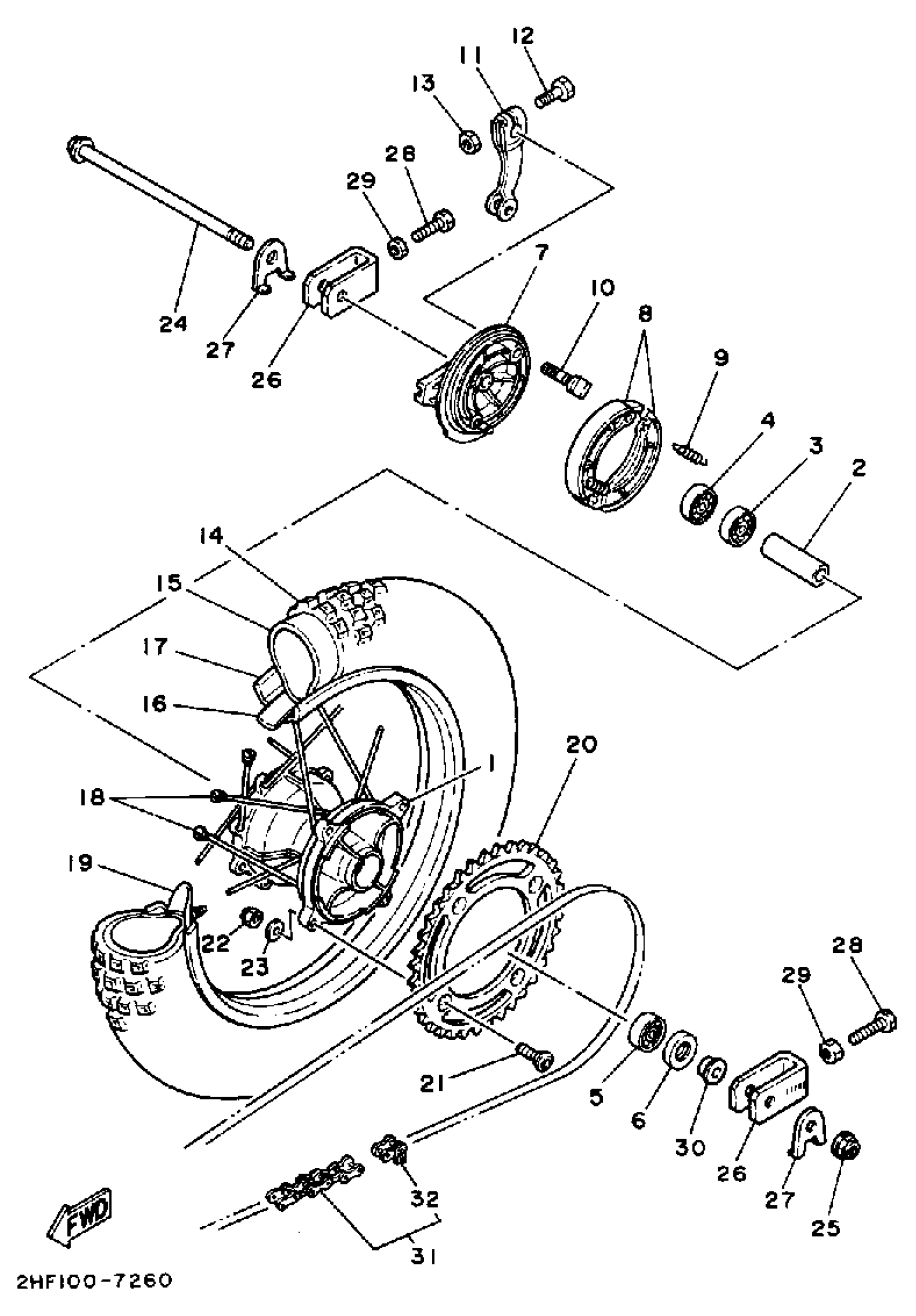

Yamaha YZ80W (YZ80W) 1989 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

39K-25311-00-98

Unavailable

2

SPACER

90560-12320-00

Unavailable

3

BEARING (32N)

93306-00108-00

$33.99

4

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

5

BRG.

93306-30101-00

$36.99

6

OIL SEAL(3TU)

93106-20033-00

$13.49

7

PLATE, BRAKE SHOE

39K-25321-00-98

Unavailable

8

BRAKE SHOE KIT

3EC-W253A-00-00

$32.99

9

SPRING TENSION 451251330000

90506-14081-00

$8.49

10

CAMSHAFT

4N0-25151-00-00

Unavailable

11

LEVER, CAMSHAFT

3R0-25355-11-00

Unavailable

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

90/100-14 M5A IRC (4.10-14)

94109-147R7-00

Unavailable

15

TUBE (80-90/100-14 TR4)(4ES)

94208-14285-00

$25.99

16

BAND, RIM (1K8)

94327-14076-00

Unavailable

17

RIM 1.60X14 (1.50-14)

94416-14375-00

Unavailable

18

SPOKE SET, REAR

39K-25304-00-00

Unavailable

19

SPACER, BEAD

5X2-25394-00-00

Unavailable

20

SPROCKET, DRIVEN 44T

39K-25444-01-XX

Unavailable

20

SPROCKET, DRIVEN (46T) (39K-25446-00)

39K-25446-01-XX

Unavailable

20

SPROCKET, DRIVEN 48T (39K-25448-00)

39K-25448-01-XX

Unavailable

20

SPROCKET, DRIVEN 50T DRIVEN

39K-25450-01-XX

Unavailable

21

BOLT(1TJ)

90109-081G2-00

Unavailable

22

NUT, U

95617-08100-00

Unavailable

23

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

24

AXLE, WHEEL

1LR-25381-01-00

Unavailable

25

NUT, U FLANGE

95607-12200-00

Unavailable

26

PULLER, CHAIN 1

2HF-25388-00-00

Unavailable

27

PLATE, INDICATOR

51L-2533A-00-00

Unavailable

28

BOLT

90101-08060-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

COLLAR(2HF)

90387-126R2-00

Unavailable

31

CHAIN 428-112L

94580-88112-00

Unavailable

32

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable
