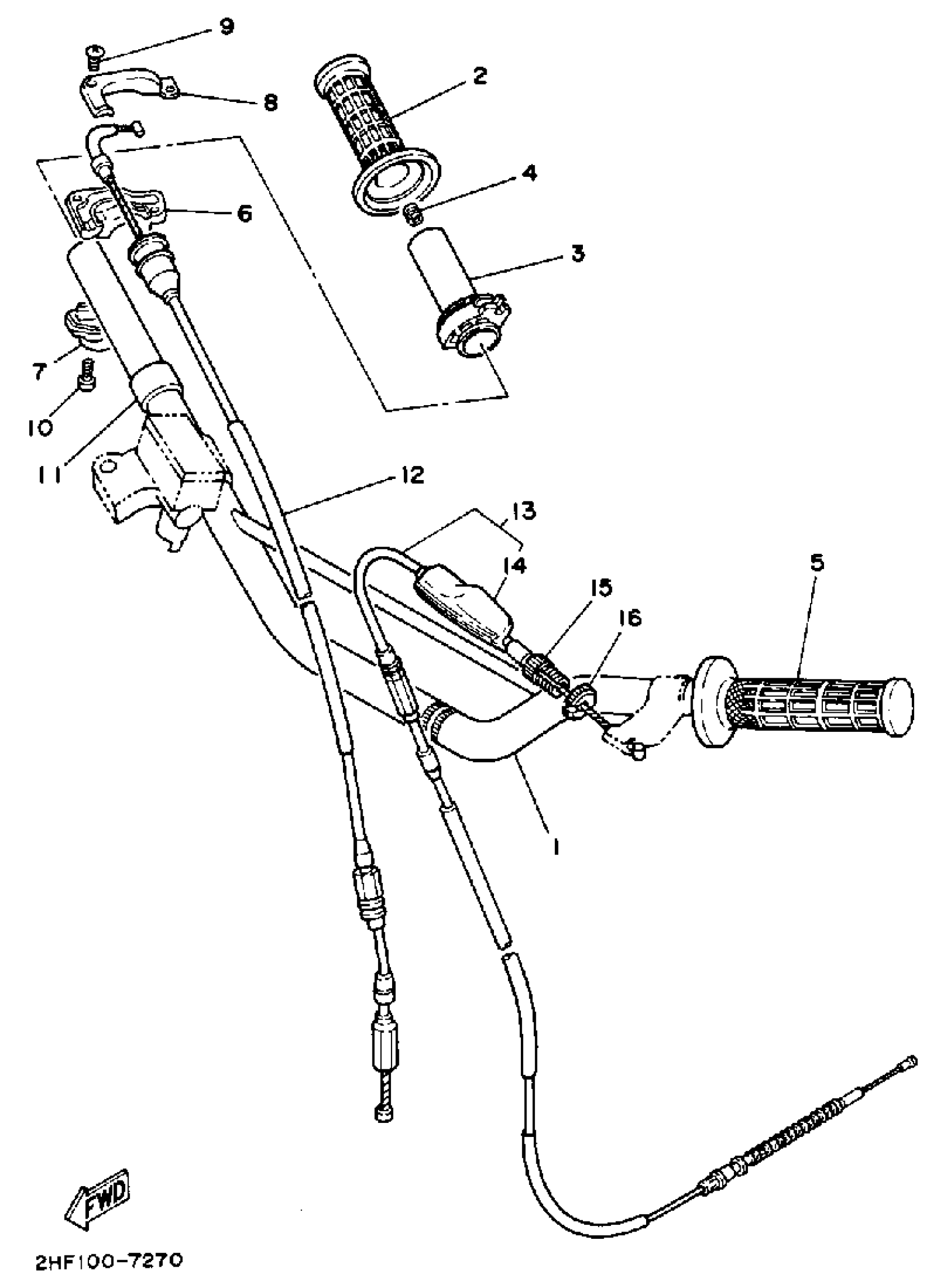

Yamaha YZ80W (YZ80W) 1989 HANDLEBAR-CABLE Diagram

#

Description
Price

1

HANDLE BAR

4ES-26111-20-8L

Unavailable

2

GRIP (R.H)

1LX-26242-01-00

$34.99

3

TUBE, THROTTLE GUIDE

22W-26243-00-00

$30.99

4

PLUG(2GU)

90338-12192-00

$8.49

5

GRIP (L.H)

1LX-26241-01-00

$33.99

6

CAP, GRIP UPPER

5X2-26281-00-00

$37.99

7

CAP, GRIP UNDER

322-26282-00-00

$28.99

8

CAP, WIRE

5X2-2628H-01-00

$27.99

9

SCREW, FLAT

98707-04012-00

$2.18

10

SCREW, PAN HEAD

90157-05M19-00

Unavailable

11

COLLAR

90387-22647-00

Unavailable

12

CABLE, THROTTLE 1

22W-26311-00-00

Unavailable

13

CABLE, CLUTCH

39K-26335-01-00

Unavailable

14

COVER, LEVER

498-26372-00-00

Unavailable

15

BOLT

90123-08002-00

$10.49

16

NUT

90179-08030-00

Unavailable
