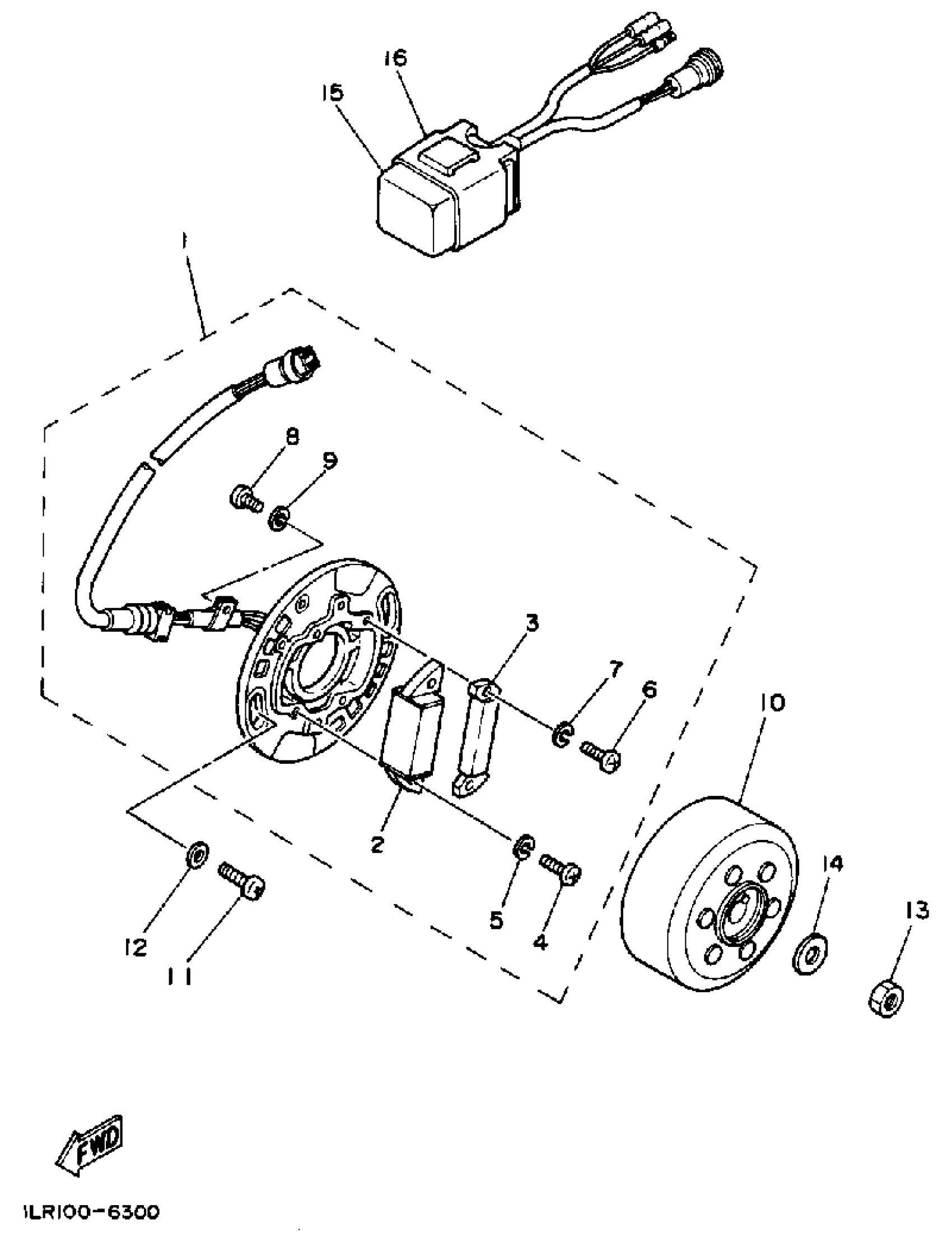

Find the part on the Generator diagram for your 1989 Yamaha YZ80W (YZ80W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha YZ80W (YZ80W) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

1LR-85510-20-00

1
Out of stock

2

. COIL SOURCE 2

39K-85512-20-00

1
Out of stock

3

. COIL, PULSER

39K-85580-20-00

1
Out of stock

4

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

ROTOR ASSEMBLY

39K-85550-20-00

1
Out of stock

11

SCREW, PAN

98507-06014-00

1

$6.18

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

NUT(3BM)

95314-10600-00

1

$1.74

In stock

14

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

15

CDI UNIT ASSEMBLY

1LR-85540-20-00

1
Out of stock

16

BAND

2A7-85546-00-00

—

$20.40

In stock
