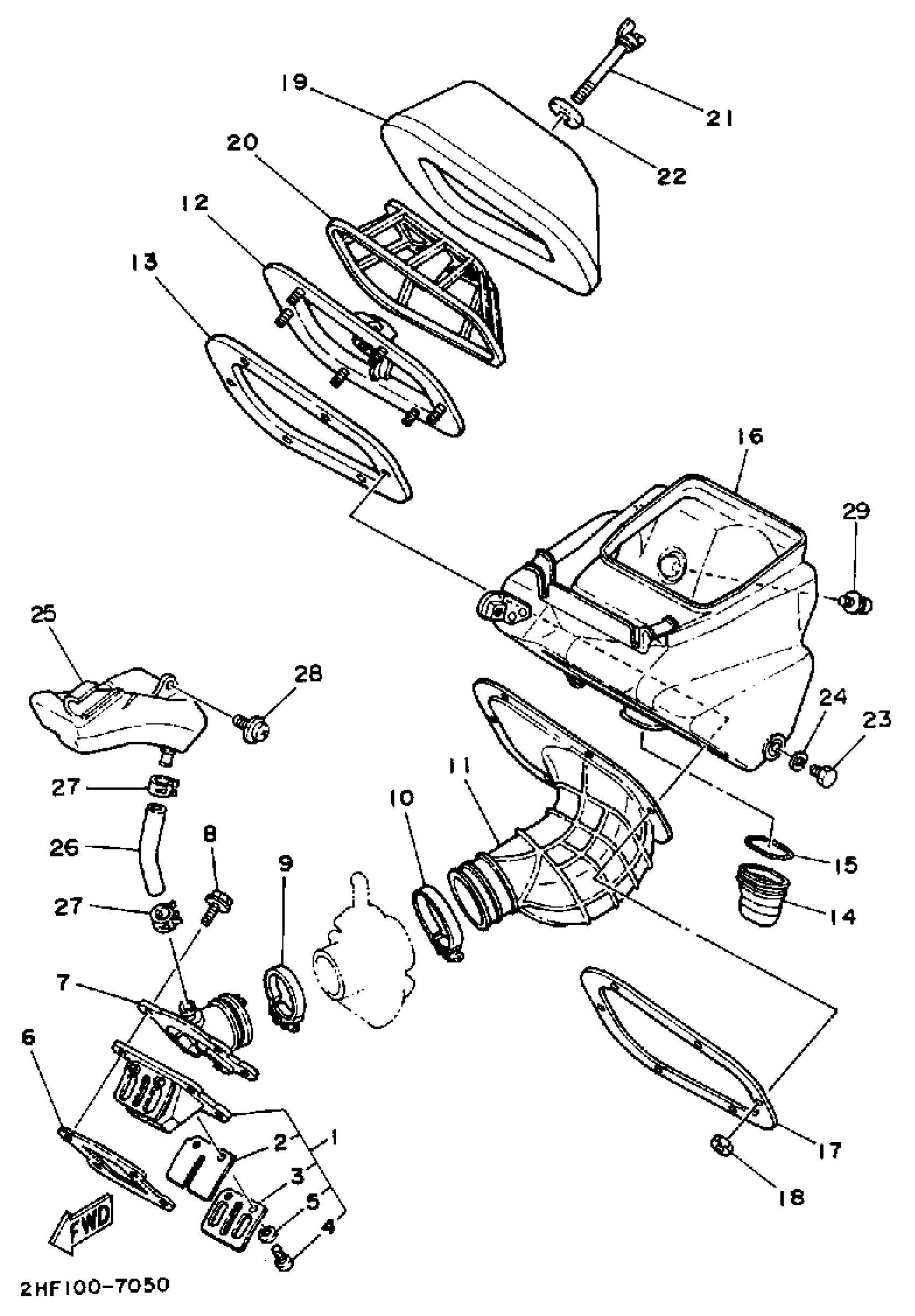

Yamaha YZ80W (YZ80W) 1989 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSY

2HF-13610-01-00

$183.99

2

REED, VALVE

2HF-13613-00-00

$23.99

3

STOPPER, REED VALVE

58T-13616-01-00

$9.99

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

3JM-13621-00-00

$17.49

7

JOINT, CARBURETOR

1LR-13565-00-00

Unavailable

8

. BOLT, FLANGE

95027-06020-00

Unavailable

9

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

10

CLAMP HOSE 304144550000

90460-51059-00

$16.99

11

JOINT, AIR CLNR 1

2HF-14453-00-00

Unavailable

12

HOLDER, GUIDE

2HF-14459-00-00

Unavailable

13

SEAL

2HF-14462-00-00

Unavailable

14

SEAL

39K-14457-00-00

Unavailable

15

SPRING, COMPRESSION

90504-03033-00

Unavailable

16

AIR CLNR CASE COMP

2HF-W1441-01-00

Unavailable

17

PLATE

2HF-14477-00-00

Unavailable

18

NUT, U

95617-05100-00

Unavailable

19

ELEMENT, AIR CLNR

2HF-14451-00-00

Unavailable

20

GUIDE, ELEMENT

2HF-14458-00-00

Unavailable

21

BOLT, WING

90122-06013-00

Unavailable

22

WASHER (4H7)

90209-06096-00

Unavailable

23

BOLT (661)

97013-06012-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

CHAMBER, AIR

22W-13581-00-00

Unavailable

26

HOSE

90445-164E1-00

Unavailable

27

CLIP

90467-16181-00

Unavailable

28

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

29

BOLT, WITH WASHER(1JK)

90119-06123-00

Unavailable
