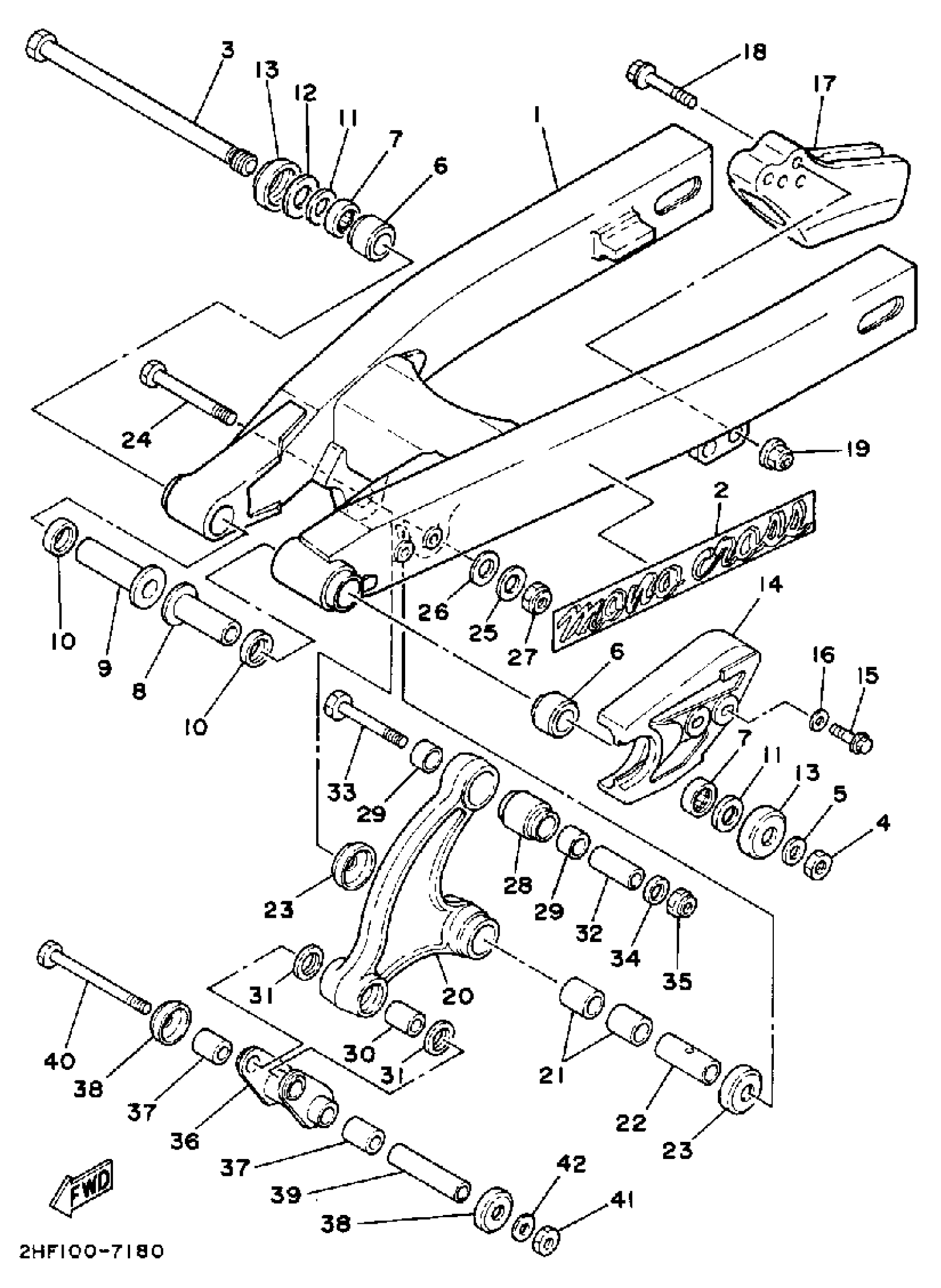

Yamaha YZ80U (YZ80) 1988 SWING ARM Diagram

#

Description
Price

1

REAR ARM

2VE-22110-00-00

Unavailable

2

EMBLEM, REAR ARM

2HH-2218A-00-00

Unavailable

3

SHAFT, PIVOT

4V1-22141-00-00

Unavailable

4

NUT, SELF LOCKING (23X)

90185-12119-00

$11.49

5

WASHER, PLATE (25H)

90201-124G9-00

$7.49

6

BUSH(39K)

90385-17042-00

$21.99

7

BEARING, CYLINDRICAL(39K)

93317-21746-00

$34.99

8

COLLAR(39K)

90387-127J8-00

$35.99

9

COLLAR(39K)

90387-127J7-00

$30.99

10

OIL SEAL(38V)

93109-17048-00

$5.60

11

WASHER, PLATE(39K)

90201-191J4-00

$9.49

12

SHIM

401-22127-00-00

$7.99

13

COVER, THRUST 1

401-22128-01-00

$29.99

14

SEAL, GUARD

1LR-22151-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

WASHER, PLATE

90201-06380-00

Unavailable

17

SUPPORT, CHAIN

39K-22199-00-00

Unavailable

18

BOLT, FLANGE

95814-08045-00

Unavailable

19

NUT, SELF-LOCKING

90185-08169-00

Unavailable

20

ARM, RELAY

39K-2217A-00-00

Unavailable

21

BUSH, BIMETAL FORMED(39K)

90384-18190-00

Unavailable

22

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

23

COVER, THRUST 2

5X6-22129-00-00

Unavailable

24

BOLT

90109-100E4-00

Unavailable

25

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

26

WASHER, PLATE (8K2)

90201-120A5-00

Unavailable

27

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

28

BUSH 2

22W-22124-00-00

Unavailable

29

BUSH, SOLID (22W)

90380-16109-00

Unavailable

30

BUSH, FORMED (22W)

90383-16023-00

Unavailable

31

OIL SEAL (22W)

93109-16035-00

Unavailable

33

BOLT (22W)

90109-10689-00

Unavailable

34

WASHER, PLATE

92990-10600-00

Unavailable

35

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

36

ROD, CONNECTING 1

22W-2217F-00-00

Unavailable

37

BUSH, FORMED (22W)

90383-16023-00

Unavailable

38

COVER, THRUST 2

22W-22129-00-00

Unavailable

39

COLLAR (22W)

90387-105G9-00

Unavailable

40

BOLT

90109-10688-00

Unavailable

41

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

42

WASHER, PLATE

92990-10600-00

Unavailable

322

COLLAR (22W)

90387-106G0-00

Unavailable
