1988 Yamaha YZ80 (YZ80U) Steering Diagram

← All diagrams

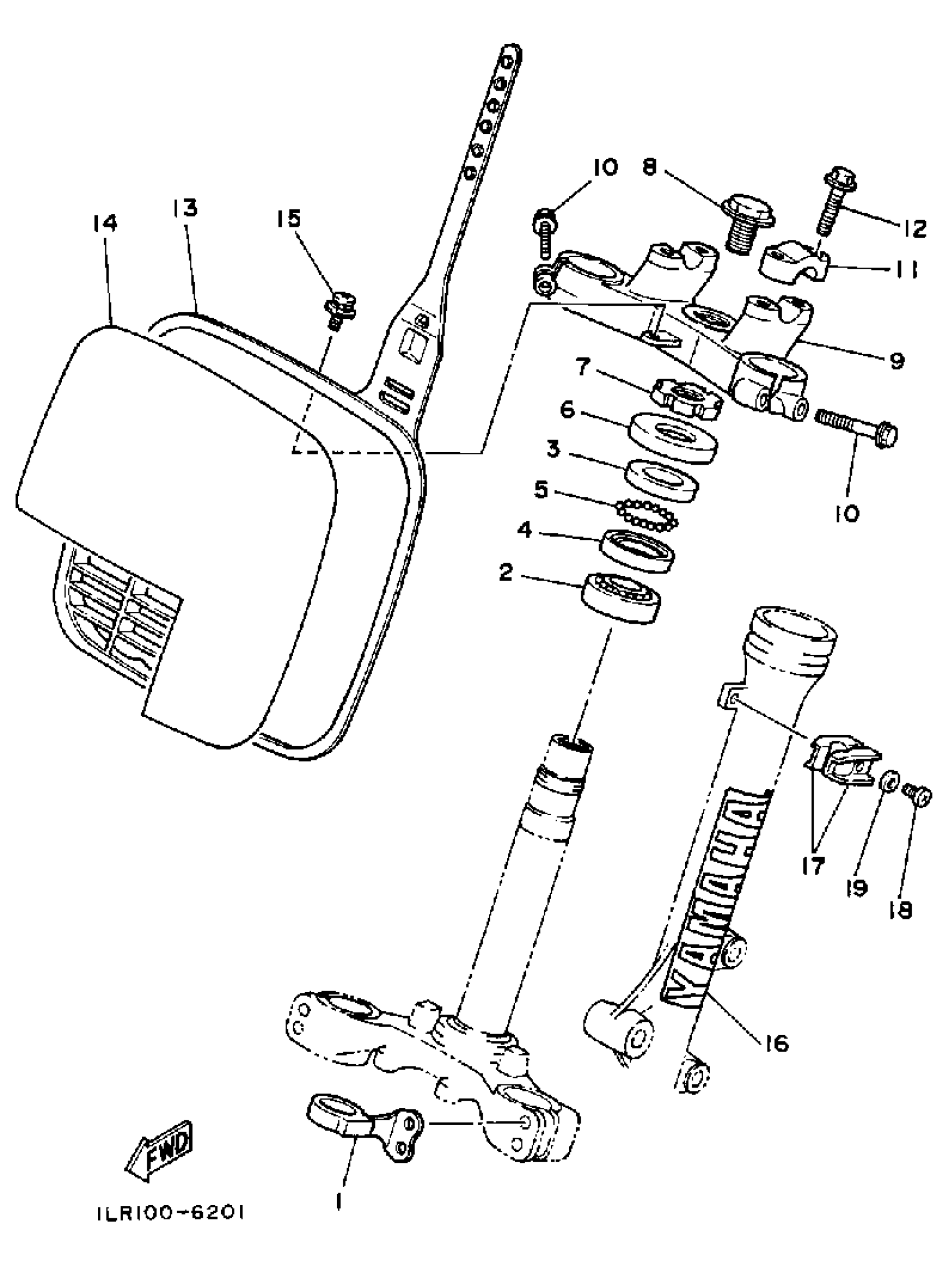

Find the part on the Steering diagram for your 1988 Yamaha YZ80 (YZ80U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha YZ80 (YZ80U) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

BEARING(4ES)

93332-00079-00

1

$61.86

In stock

3

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

COVER BALL RACE

10V-23416-01-00

—
Out of stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

9

CROWN, HANDLE

22W-23435-00-98

1
Out of stock

10

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

12

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

13

PLATE, NUMBER

3MK-23485-00-00

1
Out of stock

14

EMBLEM 5

2VE-21785-00-00

1
Out of stock

15

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

16

EMBLEM

1LR-23108-00-00

1
Out of stock

17

CLAMP (39E)

90465-14242-00

—

$31.72

In stock

18

BOLT, SOCKET

91314-06016-00

—

$6.17

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
