1988 Yamaha YZ80 (YZ80U) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1988 Yamaha YZ80 (YZ80U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

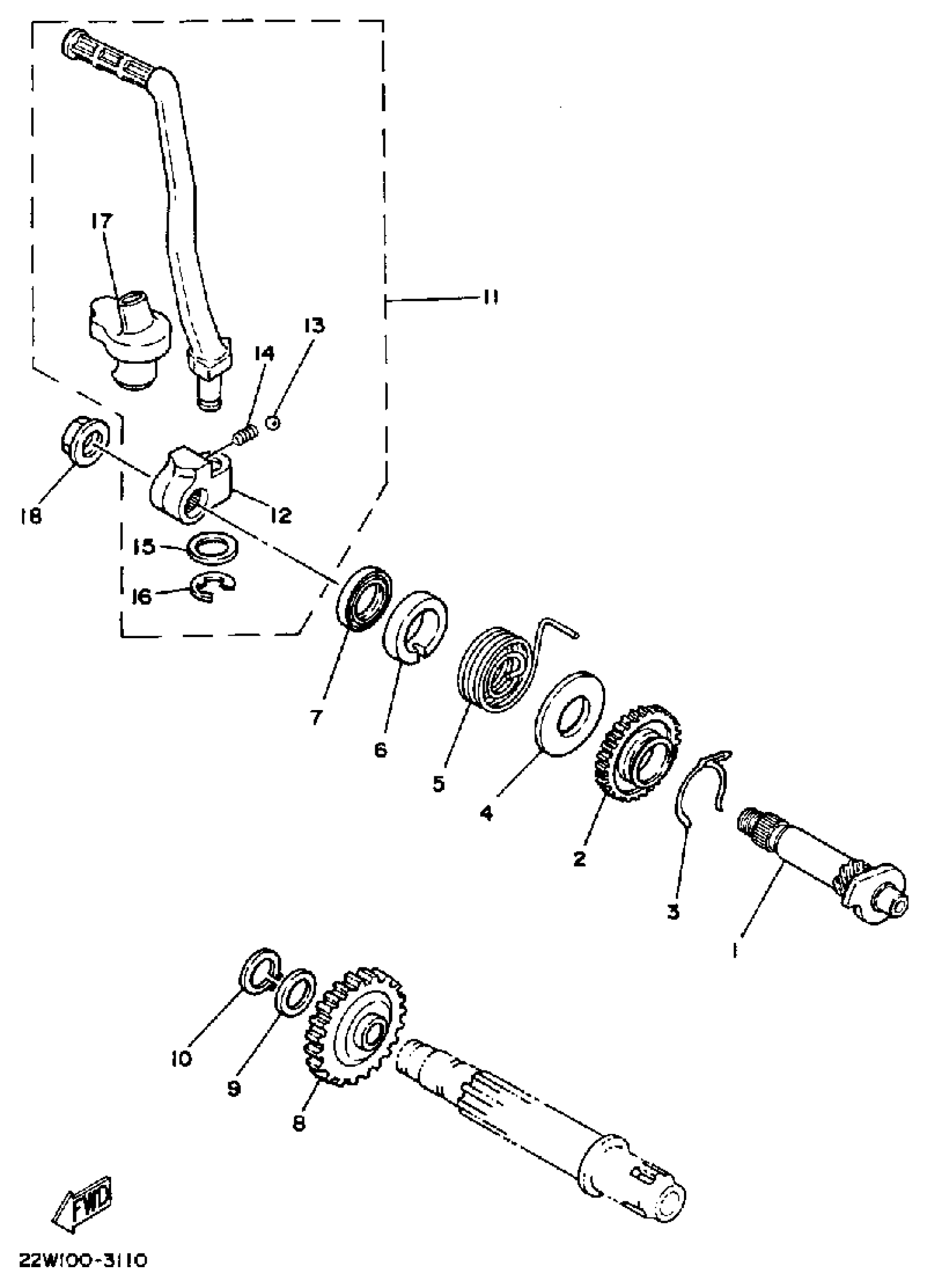

1988 Yamaha YZ80 (YZ80U) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

22W-15660-00-00

1
Out of stock

2

GEAR, KICK (24T)

4V0-15641-00-00

1
Out of stock

3

CLIP 296156870000

90468-26046-00

1
Out of stock

4

WASHER, PLATE

90201-154A1-00

1
Out of stock

5

SPRING, TORSION(2UV)

90508-26750-00

1

$10.57

In stock

6

GUIDE, SPRING

4V0-15664-00-00

1
Out of stock

7

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

8

GEAR, SPROCKET IDLE

10X-15651-00-00

—
Out of stock

9

WASHER (692)

90201-12M34-00

1

$3.47

In stock

10

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

11

KICK CRANK ASSEMBLY

22W-15620-00-00

1
Out of stock

12

. BOSS, KICK CRANK

4V0-15621-00-00

1
Out of stock

13

BALL (12R)

93507-32031-00

1
Out of stock

14

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

15

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

16

CIRCLIP (137)

93430-08007-00

—

$6.17

In stock

17

. COVER, KICK LEVER

4V0-15618-00-00

1
Out of stock

18

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock
