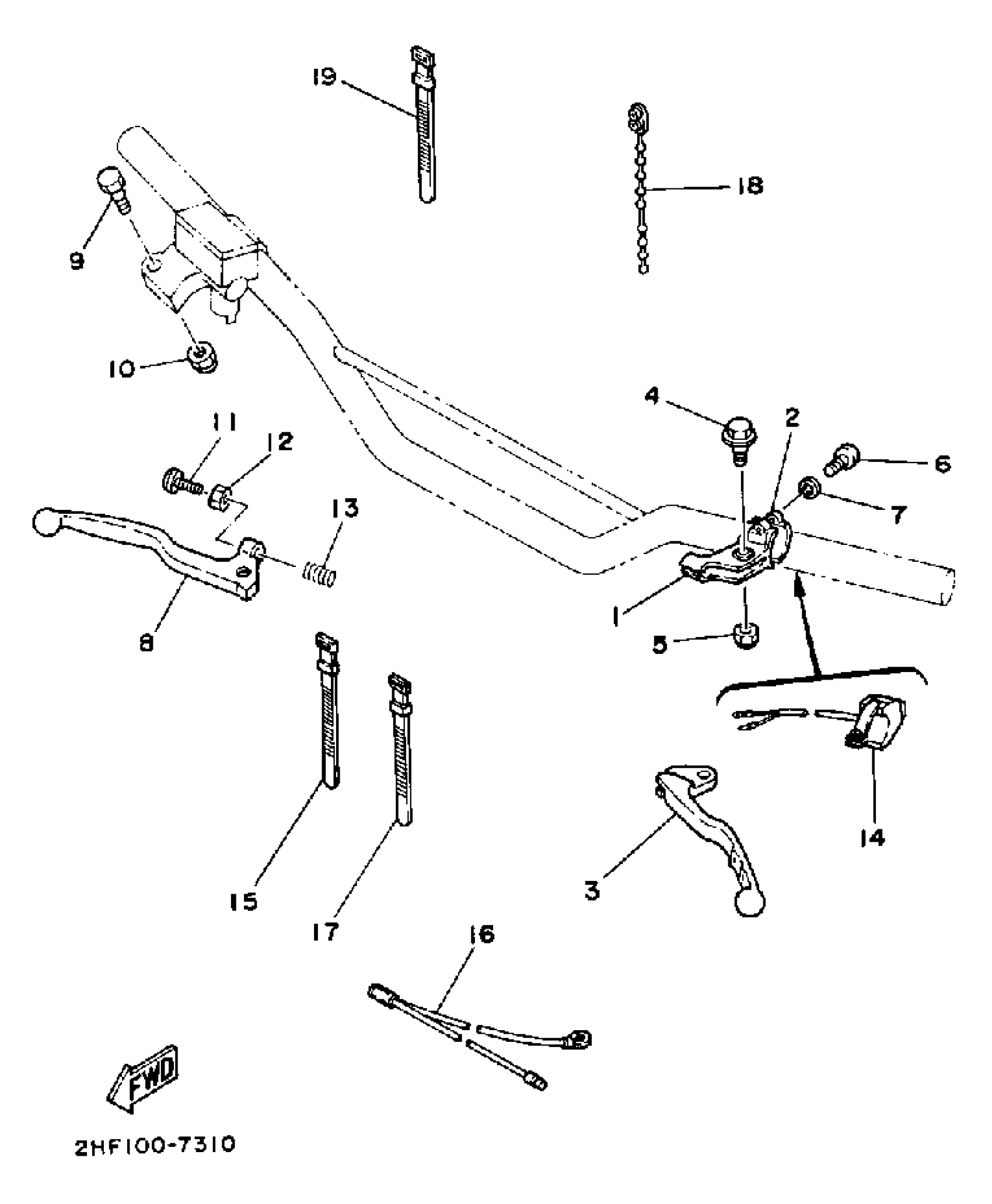

Yamaha YZ80U (YZ80) 1988 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

H0LDER, LEVER 1

38V-82911-00-00

$32.49

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$17.82

3

LEVER 1

23X-83912-02-00

$20.03

4

BOLT(1FG)

90109-06798-00

$5.84

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.31

7

WASHER(3SX)

92907-05100-00

$5.76

8

LEVER 2

55Y-83922-02-00

$32.34

9

BOLT (4L0)

90109-06577-00

$5.03

10

NUT, SELF-LOCKING

95617-06100-00

$2.17

11

SCREW (2L0)

90149-06131-00

$5.75

12

NUT HEXAGON 306839270000

90170-06010-00

$5.75

13

SPRING COMPRESSION306839240000

90501-10312-00

$5.75

14

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

15

BAND, SWITCH CORD

437-83936-01-00

$4.56

16

WIRE, EARTH LEAD

5X1-82519-01-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable

18

CLAMP

90464-20031-00

$2.43

19

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
