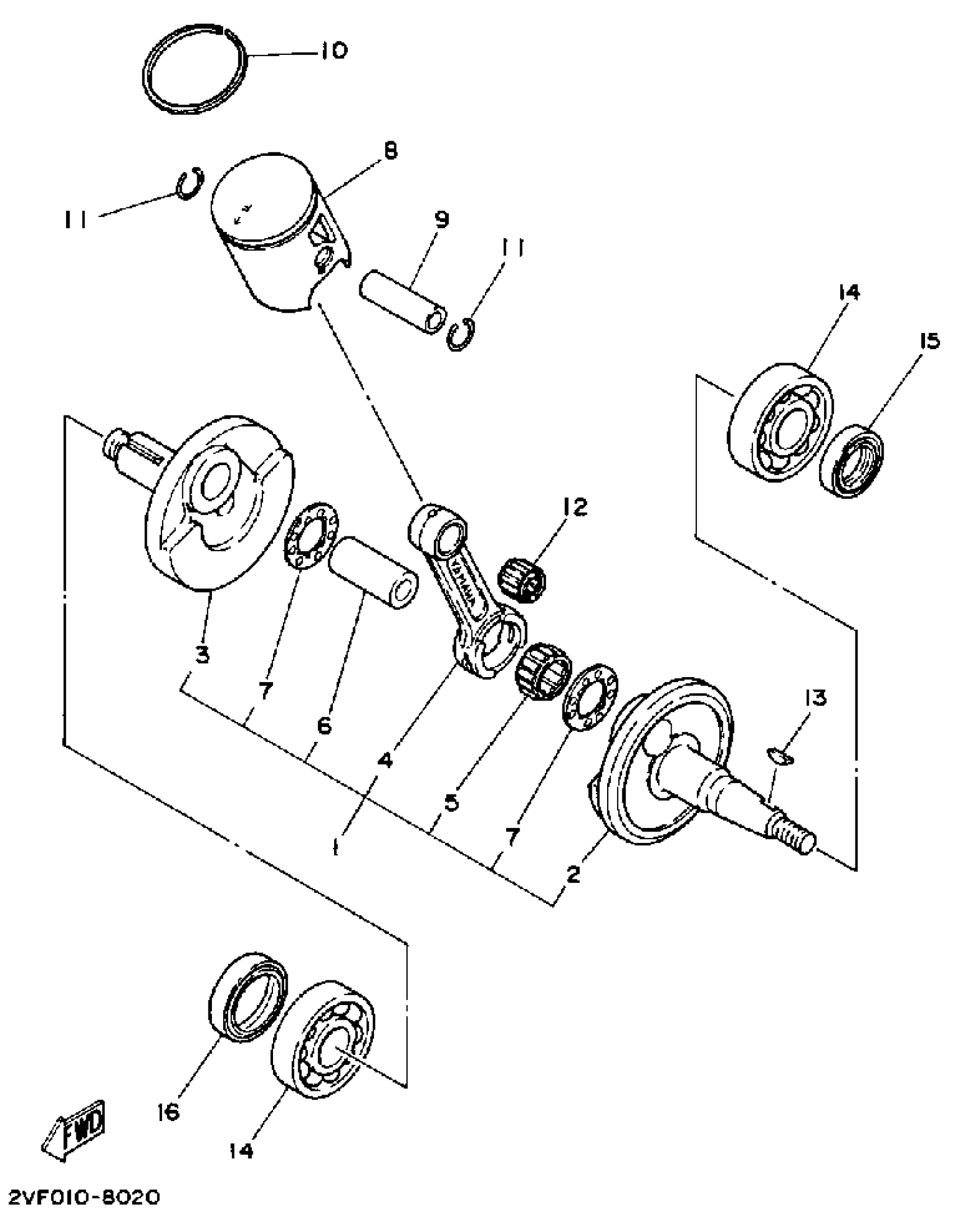

Yamaha YZ80U (YZ80) 1988 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

1LR-11400-00-00

Unavailable

2

. CRANK 1

39K-11412-00-00

Unavailable

3

. CRANK 2

39K-11422-00-00

Unavailable

4

. ROD, CONNECTING

1LR-11651-00-00

Unavailable

5

BEARING, CYLINDRICAL(43K)

93310-418M6-00

Unavailable

6

. PIN, CRANK 1

4V0-11681-00-00

Unavailable

7

WASHER 132116850000

90209-18112-00

$10.49

8

. PISTON STD (STD)

2VE-11631-00-94

Unavailable

9

PIN, PISTON

527-11633-00-00

$17.49

10

. RING, PISTON

39K-11611-00-00

Unavailable

10

. RING, PISTON 1ST

39K-11611-10-00

Unavailable

10

. RING, PISTON 2ND

39K-11611-20-00

Unavailable

11

CIRCLIP(1NM)

93450-13130-00

$8.49

12

. BEARING, CYLINDER#10

93310-312M5-00

Unavailable

13

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

14

BEARING(4ED)

93306-20468-00

Unavailable

15

OIL SEAL(4BA)

93102-20447-00

Unavailable

16

CONNECTING ROD ASSEMBLYASSY

1LR-11650-00-00

Unavailable

16

. ROD, CONNECTING

1LR-11651-00-00

Unavailable

16

. RING, PISTON

39K-11611-00-00

Unavailable

16

. RING, PISTON 1ST

39K-11611-10-00

Unavailable

16

. RING, PISTON 2ND

39K-11611-20-00

Unavailable

16

. PIN, CRANK 1

4V0-11681-00-00

Unavailable

16

PIN, PISTON

527-11633-00-00

$17.49

16

WASHER 132116850000

90209-18112-00

$10.49

16

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

16

. BEARING, CYLINDER#10

93310-312M5-00

Unavailable

16

BEARING, CYLINDRICAL(43K)

93310-418M6-00

Unavailable

16

CIRCLIP(1NM)

93450-13130-00

$8.49

16

CIRCLIP(1NM)

93450-13130-00

$8.49
