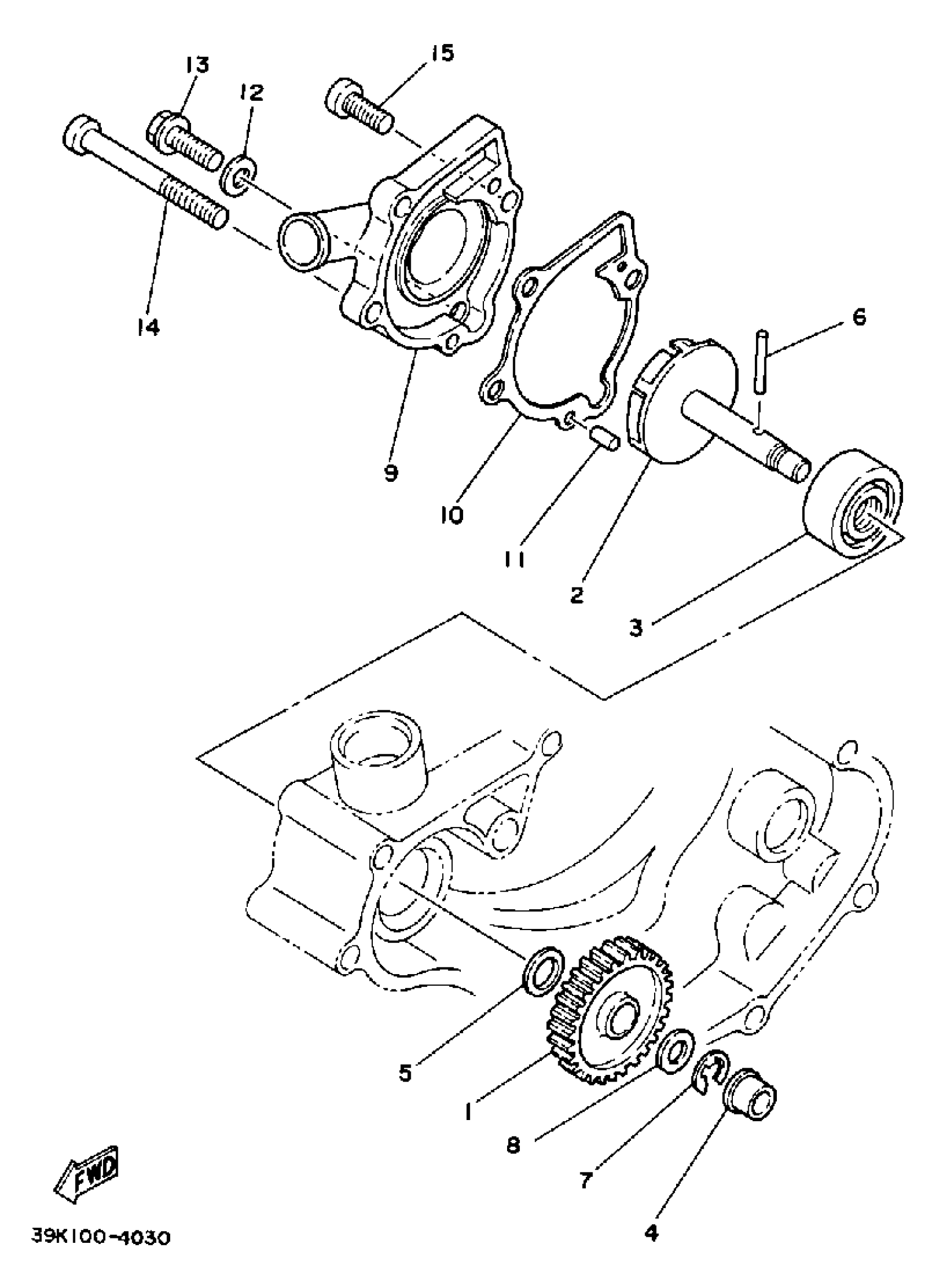

Yamaha YZ80T (YZ80T) 1987 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHAF

1LR-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSEMBLY

22W-12450-00-00

Unavailable

3

OIL SEAL

93103-10011-00

$38.28

4

BUSH (214-17843-00)

90381-08002-00

$10.03

5

WASHER, PLATE (2W5)

90201-10614-00

$6.35

6

PIN,DOWEL (137)

93603-22028-00

$2.20

7

CIRCLIP

99080-07600-00

$2.89

8

WASHER PLATE 141181390000

90201-08085-00

$6.08

9

COVER, HOUSING

2VE-12422-00-00

Unavailable

10

GASKET, HSNG COVER 2

5X2-12428-10-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$5.00

12

GASKET (4V2)

90430-06166-00

$3.39

13

BOLT, FLANGE

95817-06020-00

$2.57

14

SCREW, PAN

98507-06060-00

$5.34

15

SCREW, PAN

98517-06020-00

$1.79
