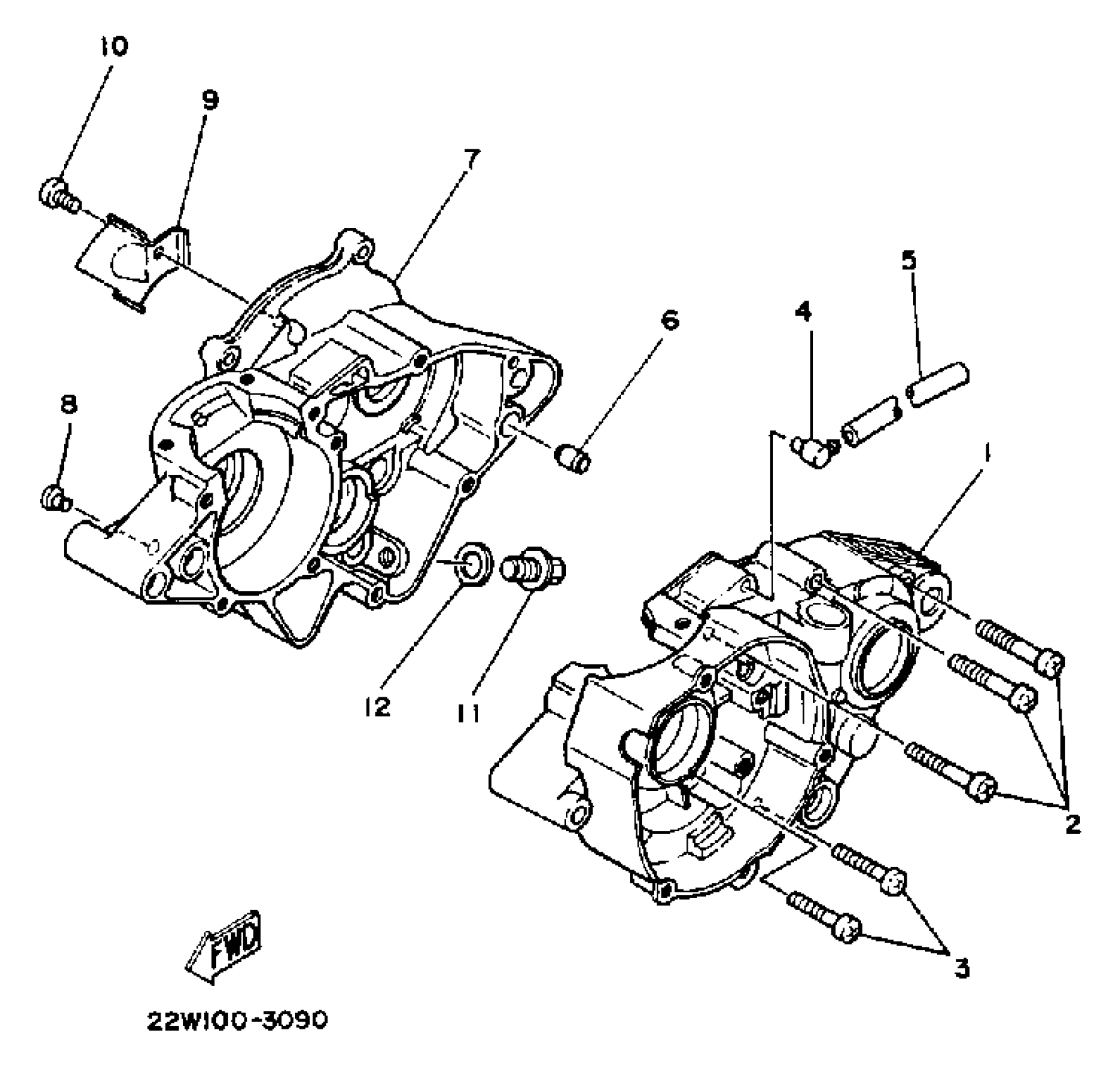

Yamaha YZ80T (YZ80T) 1987 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

39K-15111-00-00

Unavailable

2

SCREW PAN HEAD

98580-06545-00

$6.49

3

SCREW, PAN HEAD(6H4)

97885-06035-00

$5.98

4

CONNECTOR, SUCTION PIPE

353-13115-01-00

$5.01

5

HOSE (L340)

90445-08684-00

$3.20

6

PIN, DOWEL

99530-12016-00

$3.93

7

CRANKCASE 2

39K-15121-00-00

Unavailable

8

PLUG (17J)

90338-07124-00

$8.14

9

PLATE

5X2-15113-01-00

Unavailable

10

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

11

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.77

12

GASKET (3JD1)

90430-12207-00

$6.67
