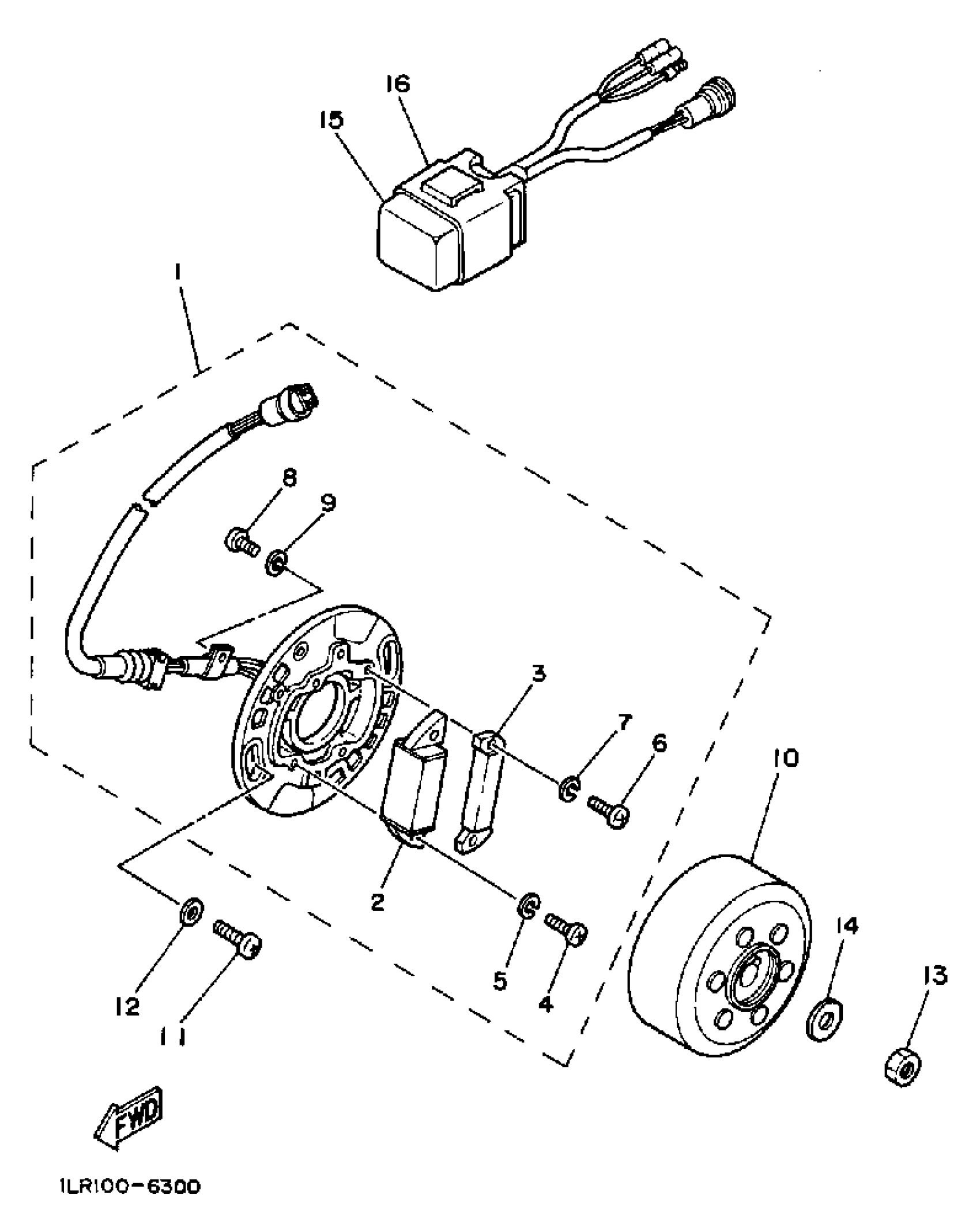

Yamaha YZ80T (YZ80T) 1987 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

1LR-85510-20-00

Unavailable

2

. COIL SOURCE 2

39K-85512-20-00

Unavailable

3

. COIL, PULSER

39K-85580-20-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

$2.75

5

YBS67-4 WASHER, SPRING

92990-04100-00

$1.49

6

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.74

7

YBS67-4 WASHER, SPRING

92990-04100-00

$1.49

8

SCREW, PAN HEAD (713)

98580-04008-00

$4.33

9

YBS67-4 WASHER, SPRING

92990-04100-00

$1.49

10

ROTOR ASSEMBLY

39K-85550-20-00

Unavailable

11

SCREW, PAN

98507-06014-00

$5.88

12

WASHER, PLAIN (646)

92990-06600-00

$2.43

13

NUT(3BM)

95314-10600-00

$1.64

14

WASHER, PLATE (3L6)

90201-10774-00

$5.94

15

CDI UNIT ASSEMBLY

1LR-85540-20-00

Unavailable

16

BAND

2A7-85546-00-00

Unavailable
