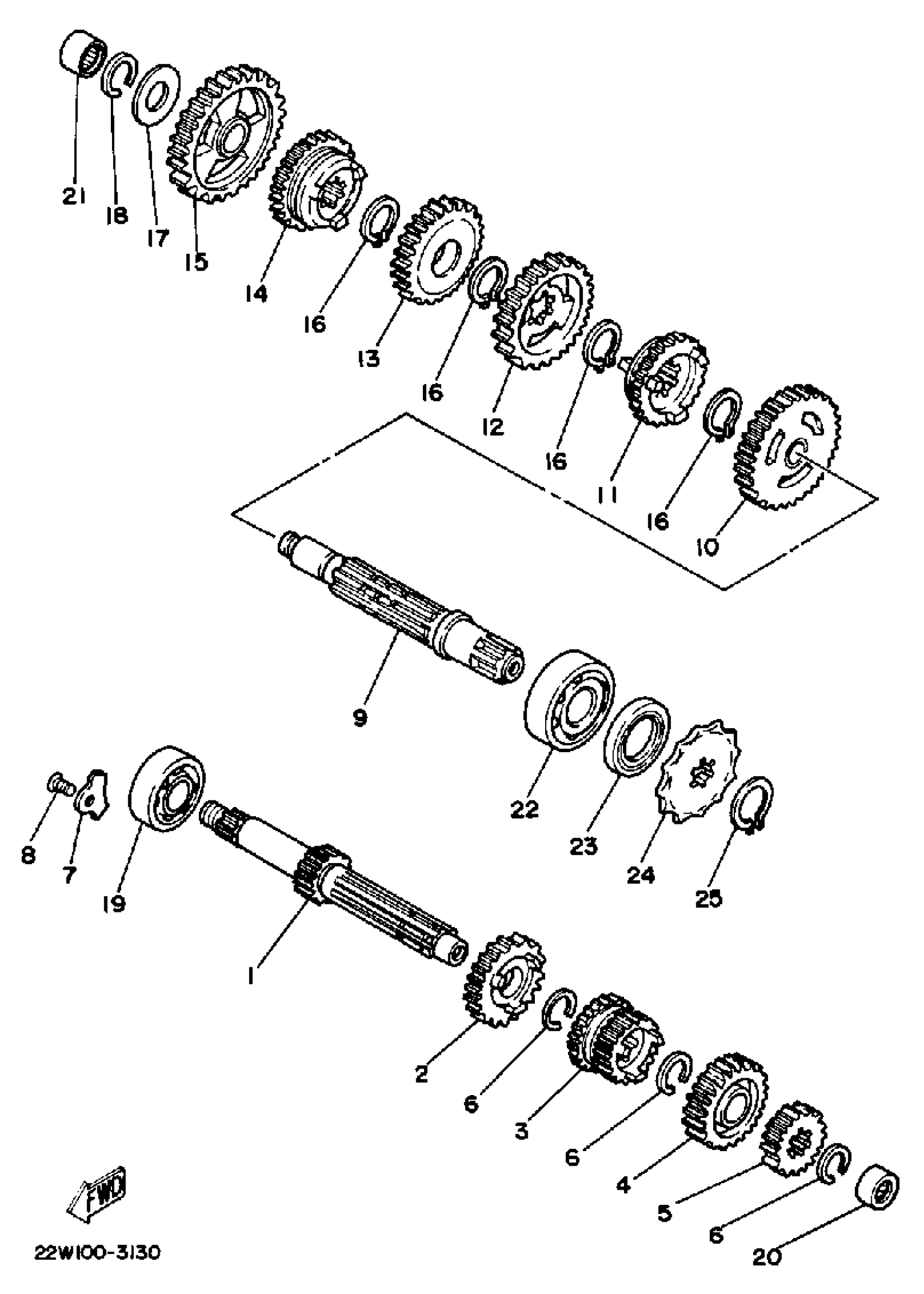

Yamaha YZ80S (YZ80S) 1986 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (4V0-17411-00) (13T)

4V0-17411-02-00

Unavailable

2

GEAR, 5TH PINION (39K-17151-00)

39K-17151-01-00

Unavailable

3

GEAR, 3RD PINION (16T/19T)

39K-17131-00-00

Unavailable

4

GEAR, 6TH PINION (39K-17161-00)

39K-17161-01-00

Unavailable

5

GEAR, 2ND PINION (16T)

4V0-17121-00-00

Unavailable

6

CIRCLIP (4V0)

93440-16089-00

$7.49

7

PLATE, BEARING COVER

3AK-15383-01-00

$8.99

8

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

9

AXLE,DRIVE

4V0-17421-00-00

Unavailable

10

GEAR, 2ND WHEEL (33T)

39K-17221-00-00

Unavailable

11

GEAR, 6TH WHEEL (26T)

39K-17261-01-00

Unavailable

12

GEAR, 3RD WHEEL (31T)

4V0-17231-00-00

Unavailable

13

GEAR, 4TH WHEEL (22T)

39K-17241-00-00

Unavailable

14

GEAR, 5TH WHEEL (27T)

39K-17251-01-00

Unavailable

15

GEAR, 1ST WHEEL (36T)

4V0-17211-00-00

Unavailable

16

CIRCLIP (525)

93410-20038-00

Unavailable

17

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

18

CIRCLIP

93440-15012-00

Unavailable

19

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

20

BEARING, CYLINDRICAL(39K)

93317-11245-00

Unavailable

21

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

22

BEARING(1YW)

93306-20461-00

Unavailable

23

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

24

DRIVE SPROCKET ASSY (12T)

3TU-17460-00-00

Unavailable

24

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

24

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

24

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

25

CIRCLIP(13H)

99009-18400-00

Unavailable
