Description

Price

1

GUIDE, WIRE

3R4-23389-00-00

$29.99

2

BEARING(4ES)

93332-00079-00

$69.99

3

RACE, BALL 1

BP2-23411-00-00

$11.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

COVER, BALL RACE

122-23416-00-00

$7.99

7

NUT

90179-25004-00

$24.99

8

BOLT (2A2)

90105-14102-00

$5.60

9

CROWN, HANDLE

22W-23435-00-98

Unavailable

10

BOLT, FLANGE

95817-08035-00

$9.49

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

12

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

13

PLATE, NUMBER

3MK-23485-00-00

Unavailable

14

EMBLEM 5

2VE-21785-00-00

Unavailable

15

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

16

EMBLEM

1LR-23108-00-00

Unavailable

17

CLAMP (39E)

90465-14242-00

Unavailable

18

BOLT, SOCKET

91314-06016-00

Unavailable

19

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

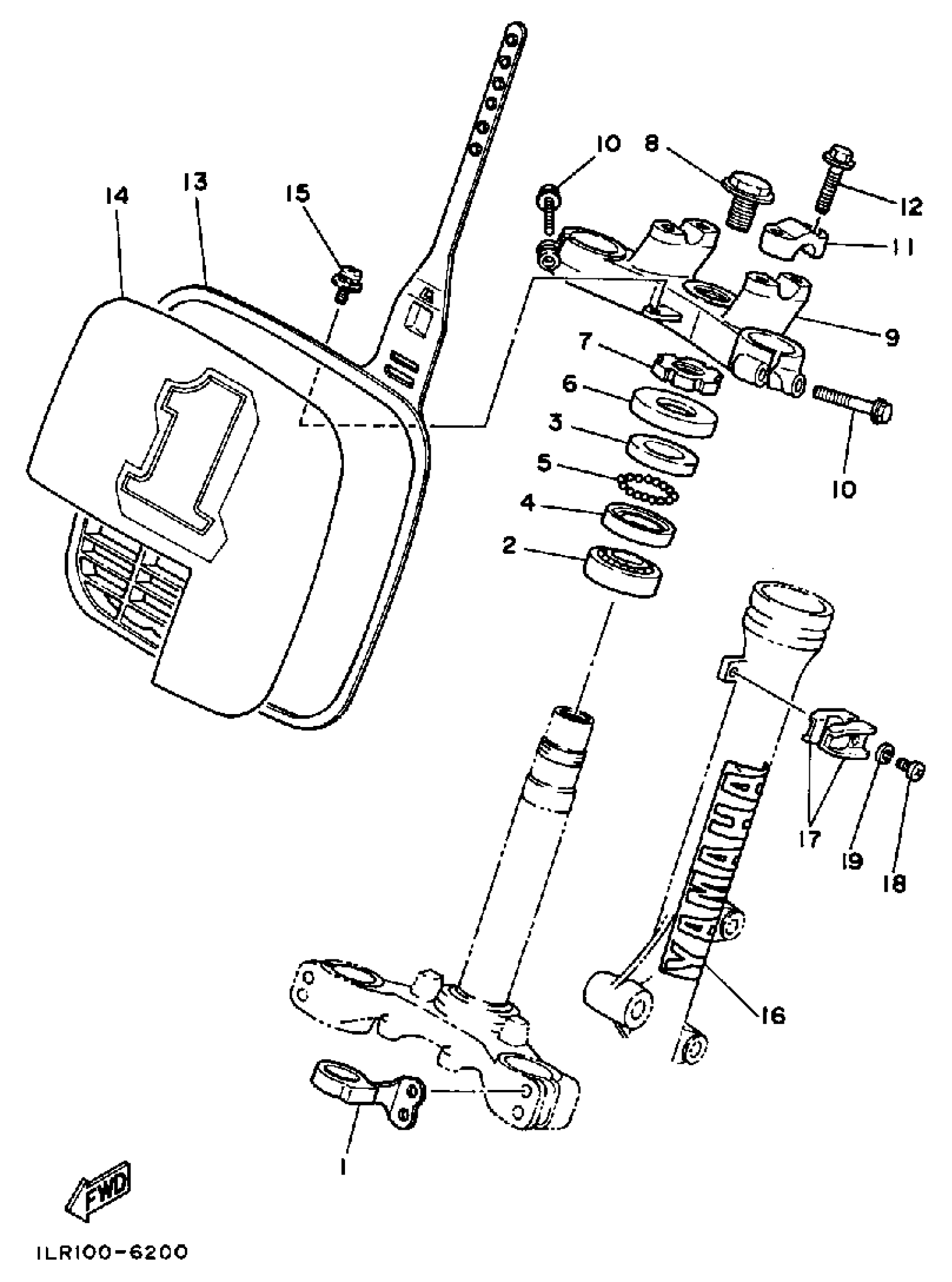

Yamaha YZ80S (YZ80S) 1986 STEERING Diagram

GUIDE, WIRE

BEARING(4ES)

RACE, BALL 1

RACE, BALL 2

BALL

COVER, BALL RACE

NUT

BOLT (2A2)

CROWN, HANDLE

BOLT, FLANGE

HOLDER, HANDLE UPPER

BOLT, FLANGE(6TA)

PLATE, NUMBER

EMBLEM 5

SCREW, W/WASHER (4L0)

EMBLEM

CLAMP (39E)

BOLT, SOCKET

WASHER, PLATE (4H7)
