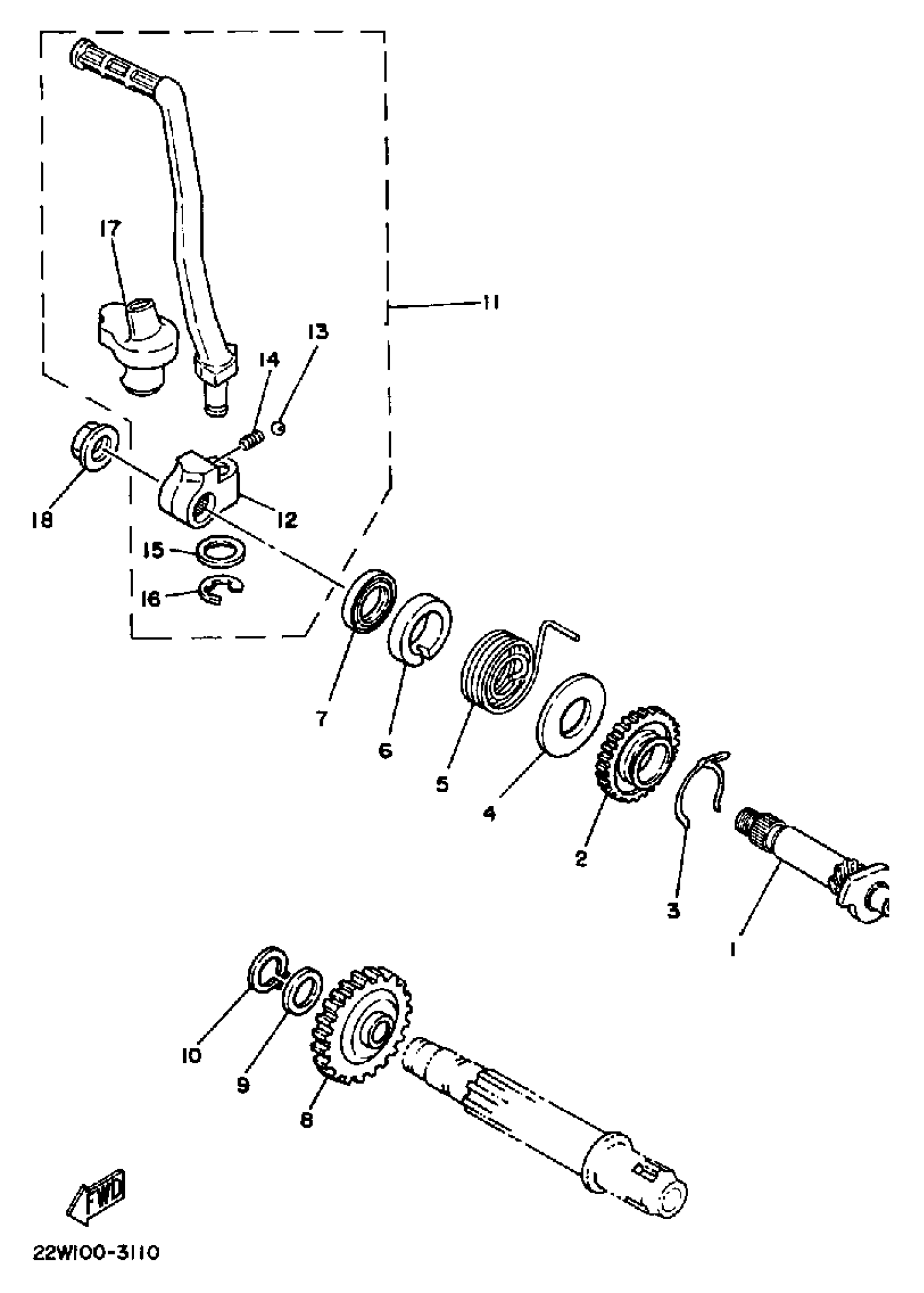

Yamaha YZ80S (YZ80S) 1986 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSEMBLY

22W-15660-00-00

Unavailable

2

GEAR, KICK (24T)

4V0-15641-00-00

Unavailable

3

CLIP 296156870000

90468-26046-00

$7.49

4

WASHER, PLATE

90201-154A1-00

Unavailable

5

SPRING, TORSION(2UV)

90508-26750-00

$12.49

6

GUIDE, SPRING

4V0-15664-00-00

Unavailable

7

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

8

GEAR, SPROCKET IDLE

10X-15651-00-00

Unavailable

9

WASHER (692)

90201-12M34-00

Unavailable

10

CIRCLIP(10Y)

99009-12400-00

$3.59

11

KICK CRANK ASSEMBLY

22W-15620-00-00

Unavailable

12

. BOSS, KICK CRANK

4V0-15621-00-00

Unavailable

13

BALL (12R)

93507-32031-00

$4.73

14

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

15

WASHER, PLATE (583)

90201-12631-00

$9.49

16

CIRCLIP (137)

93430-08007-00

Unavailable

17

. COVER, KICK LEVER

4V0-15618-00-00

Unavailable

18

NUT, FLANGE(3BM)

95704-10500-00

Unavailable
