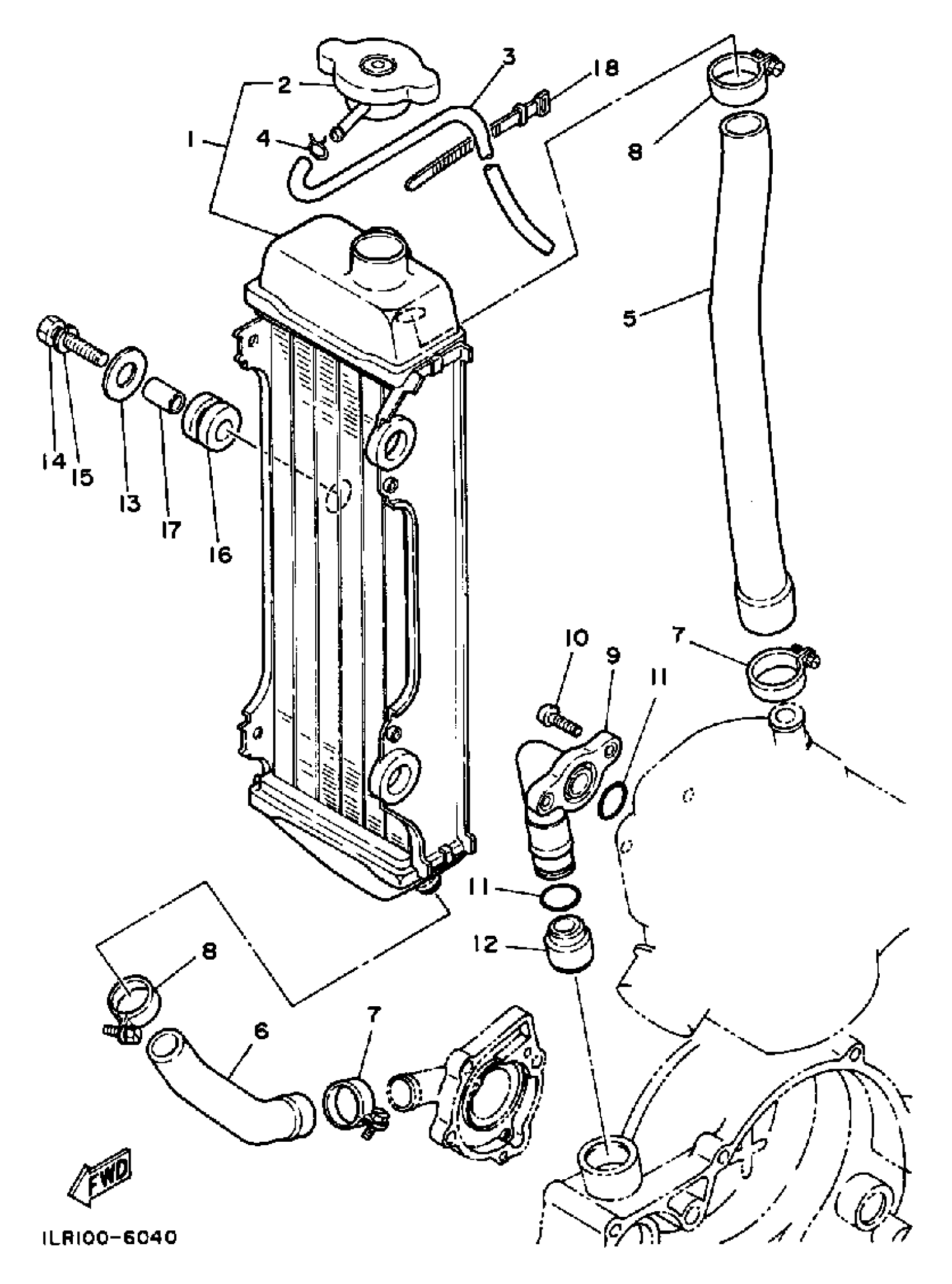

Yamaha YZ80S (YZ80S) 1986 RADIATOR - HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

1LR-12460-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

PIPE, BREATHER

22W-12463-00-00

$20.99

4

CLIP, PIPE 6162435600

90467-08004-00

$8.49

5

PIPE 1

39K-12481-00-00

Unavailable

6

PIPE 2

39K-12482-00-00

Unavailable

7

CLAMP, HOSE

90460-27281-00

Unavailable

8

CLAMP, HOSE

90460-22252-00

Unavailable

9

JOINT

2VE-12446-00-00

Unavailable

10

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

11

O-RING (M124)

93210-16772-00

Unavailable

12

SEAL, PIPE 1

4V2-12494-00-00

Unavailable

13

WASHER, PLATE

90201-06086-00

$7.49

14

BOLT, HEXAGON

97017-06030-00

$3.61

15

WASHER, SPRING

92995-06100-00

Unavailable

16

GROMMET(663)

90480-15064-00

Unavailable

17

COLLAR(2UJ)

90387-061V1-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable
