1986 Yamaha YZ80S (YZ80S) Handlebar - Cable Diagram

← All diagrams

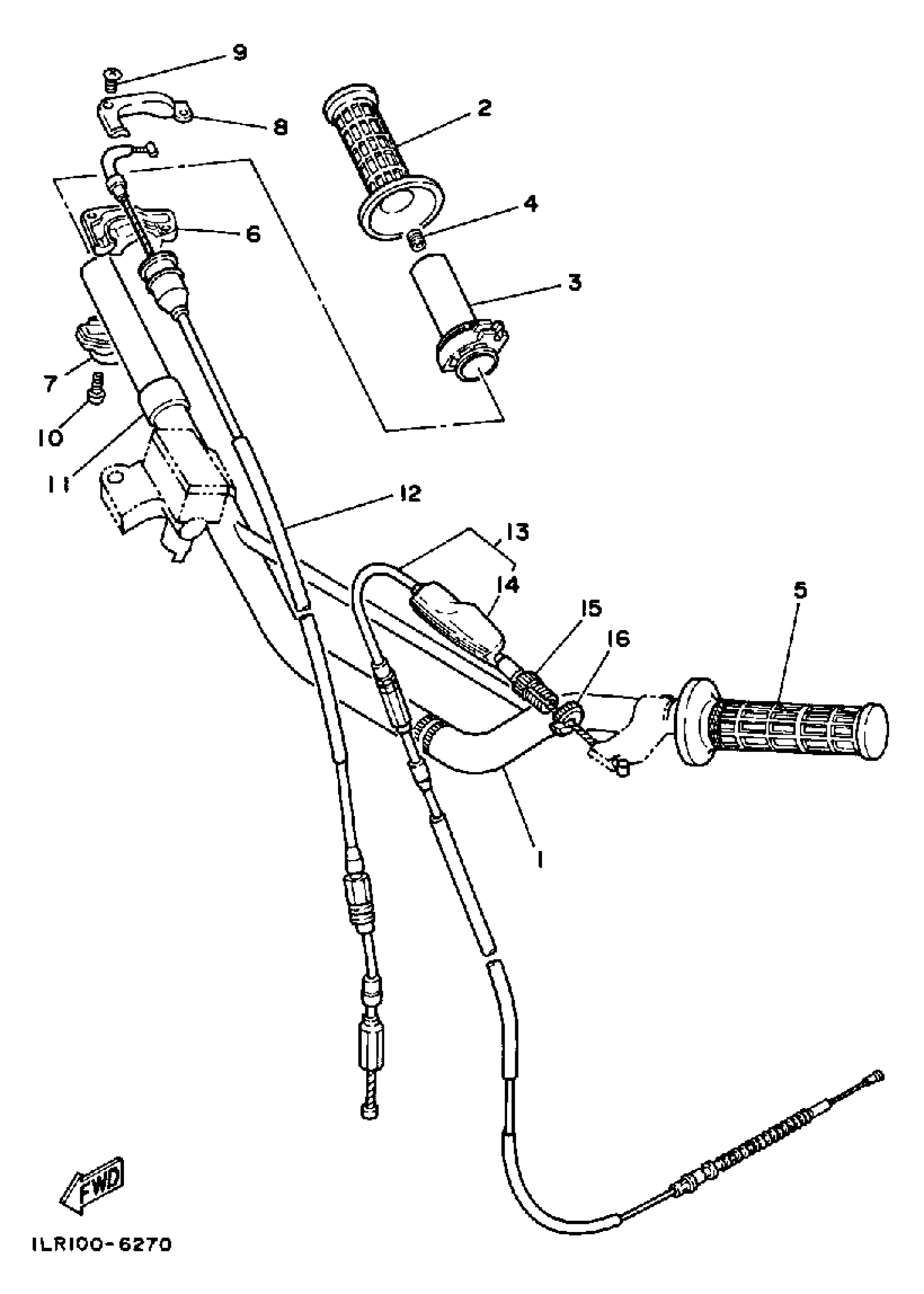

Find the part on the Handlebar - Cable diagram for your 1986 Yamaha YZ80S (YZ80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YZ80S (YZ80S) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4ES-26111-10-00

1
Out of stock

2

GRIP (R.H)

1LX-26242-01-00

1

$29.77

In stock

3

TUBE, THROTTLE GUIDE

22W-26243-00-00

1

$26.34

In stock

4

PLUG(2GU)

90338-12192-00

1

$6.18

In stock

5

GRIP (L.H)

1LX-26241-01-00

1

$28.30

In stock

6

CAP, GRIP UPPER

5X2-26281-00-00

1

$31.34

In stock

7

CAP, GRIP UNDER

322-26282-00-00

1

$23.60

In stock

8

CAP, WIRE

5X2-2628H-01-00

1

$21.62

In stock

9

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

10

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

11

COLLAR

90387-22647-00

1
Out of stock

12

CABLE, THROTTLE 1

22W-26311-00-00

1
Out of stock

13

CABLE, CLUTCH

39K-26335-01-00

1
Out of stock

14

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

15

BOLT

90123-08002-00

1

$8.93

In stock

16

NUT

90179-08030-00

—

$3.78

In stock
