FRONT FORK

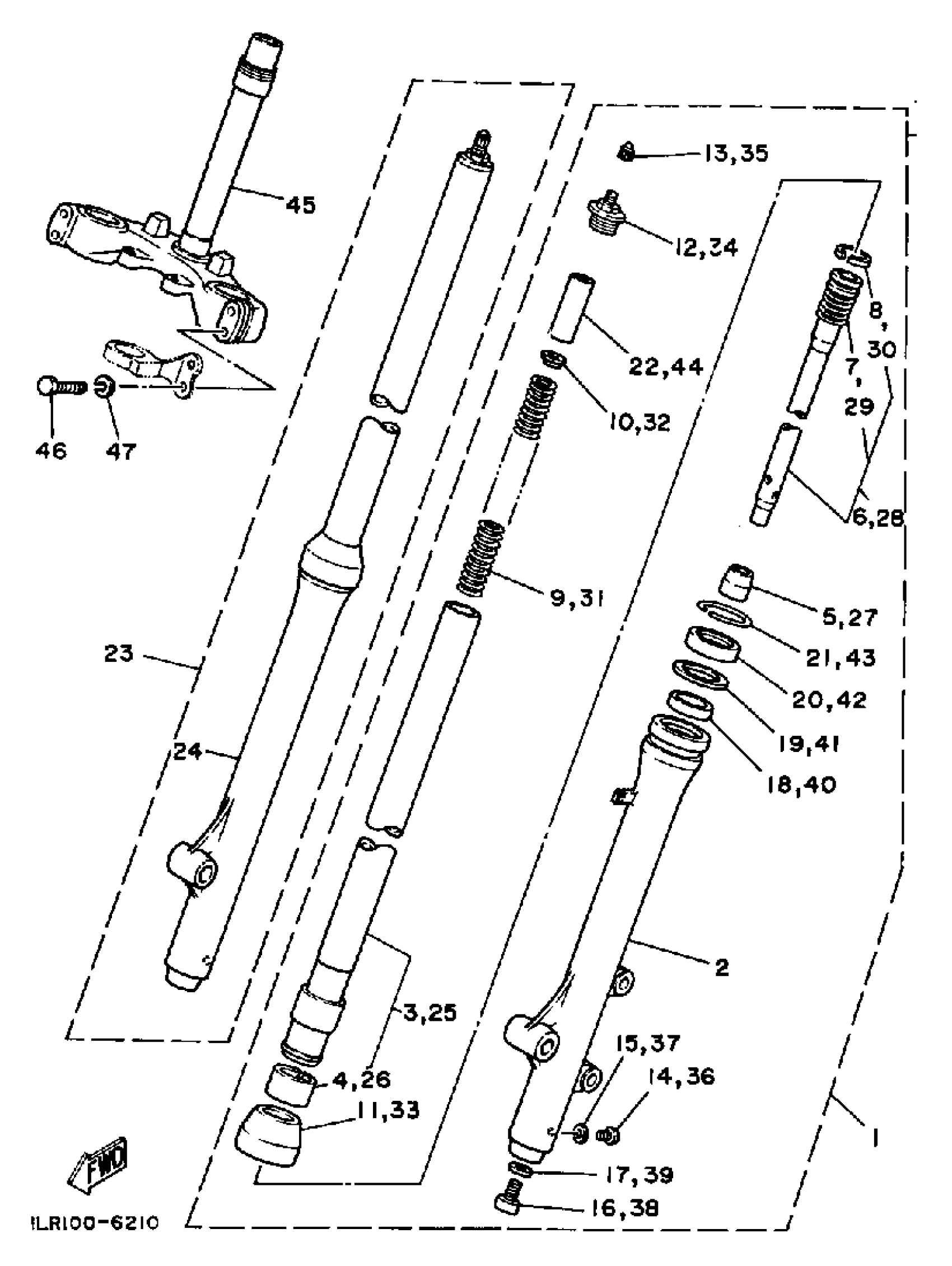

Yamaha YZ80S (YZ80S) 1986 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(1LR-23102-L0-00)
Unavailable
2
. TUBE, OUTER 1
1LR-23126-L0-00
Unavailable
3
. INNER TUBE 1
58T-23110-L0-00
Unavailable
4
.. PISTON, FRONT FORK
22W-2312K-00-00
Unavailable
5
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
6
. CYLINDER, FRONT FORK
39K-23170-L0-00
Unavailable
7
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
8
.. RING, PISTON FRONT FORK
22W-23157-L0-00
Unavailable
9
. SPRING, FRONT FORK (K5023)
39K-23141-00-00
Unavailable
9
. SPRING, FRONT FORK HARD (K5025)
39K-23141-20-00
Unavailable
10
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
11
. SEAL, DUST
22W-23144-L0-00
Unavailable
12
. BOLT, CAP
58T-23111-L0-00
Unavailable
14
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
15
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
17
GASKET
509-23158-L0-00
Unavailable
18
METAL, SLIDE 1
4HC-23125-20-00
Unavailable
19
WASHER, OIL SEAL
22W-23146-L0-00
Unavailable
20
OIL SEAL
22W-23145-L0-00
Unavailable
21
RING, SNAP
22W-23153-L0-00
Unavailable
22
. SPACER
58T-23118-L0-00
Unavailable
22
. SPACER
58T-23118-L0-00
Unavailable
23
FRONT FORK ASSEMBLY R
(58T-23103-L0-00)
Unavailable
24
. TUBE, OUTER 2
39K-23136-L0-00
Unavailable
25
. INNER TUBE 1
58T-23110-L0-00
Unavailable
26
.. PISTON, FRONT FORK
22W-2312K-00-00
Unavailable
27
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
28
. CYLINDER, FRONT FORK
39K-23170-L0-00
Unavailable
29
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
30
.. RING, PISTON FRONT FORK
22W-23157-L0-00
Unavailable
31
. SPRING, FRONT FORK (K5023)
39K-23141-00-00
Unavailable
31
. SPRING, FRONT FORK HARD (K5025)
39K-23141-20-00
Unavailable
32
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
33
. SEAL, DUST
22W-23144-L0-00
Unavailable
34
. BOLT, CAP
58T-23111-L0-00
Unavailable
36
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
37
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
38
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
39
GASKET
509-23158-L0-00
Unavailable
40
METAL, SLIDE 1
4HC-23125-20-00
Unavailable
41
WASHER, OIL SEAL
22W-23146-L0-00
Unavailable
42
OIL SEAL
22W-23145-L0-00
Unavailable
43
RING, SNAP
22W-23153-L0-00
Unavailable
44
. SPACER
58T-23118-L0-00
Unavailable
45
UNDER BRACKET COMP
39K-23340-L0-00
Unavailable
46
BOLT
97014-08040-00
Unavailable
47
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
