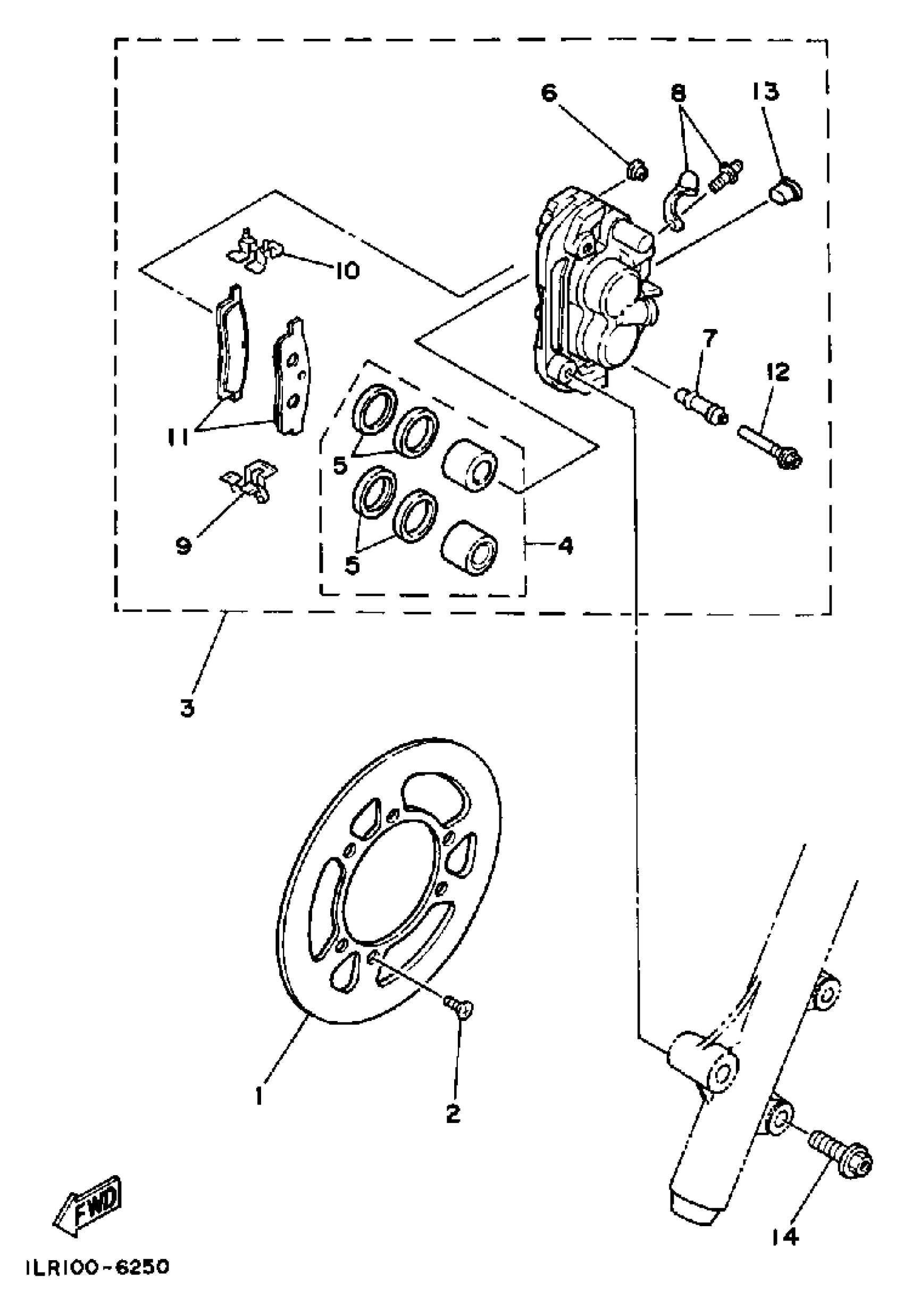

Yamaha YZ80S (YZ80S) 1986 FRONT BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (RT)

1LR-25831-00-00

Unavailable

2

SCREW, FLAT

98707-06012-00

$5.76

3

CALIPER ASSEMBLY (RIGHT)

1LR-25810-00-00

Unavailable

4

PISTON ASSY, CALIPER

4ES-W0057-10-00

$101.27

5

CALIPER SEAL KIT

4ES-25803-10-00

$56.14

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

56A-25937-00-00

$18.93

8

BLEED SCREW KIT

15B-W0048-00-00

$16.89

9

SUPPORT, PAD

56A-25919-00-00

$28.89

10

SUPPORT, PAD

56A-25919-10-00

$26.34

11

BRAKE PAD KIT

4ES-W0045-00-00

Unavailable

12

BOLT

56A-25926-00-00

$10.95

13

CAP, INDICATOR

34X-25845-00-00

$14.33

14

BOLT, FLANGE

95817-08035-00

$6.22
