Description

Price

1

FRAME

(1LR-21110-00-FH)

Unavailable

2

BOLT, FLANGE

95817-08125-00

$9.49

3

BOLT,FLANGE

95817-08135-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$8.49

5

TENSIONER

30X-22178-00-00

$35.99

6

BUSH

4V4-22184-00-00

$4.47

7

WASHER, PLATE (4X4)

90201-067A0-00

$8.49

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER(6TA)

92907-06700-00

$1.86

10

GUARD, RADIATOR

1LR-2174F-00-00

Unavailable

11

BOLT, FLANGE(2UJ)

95024-08012-00

$8.49

12

SPANNER, SPECIAL

10V-28135-00-00

Unavailable

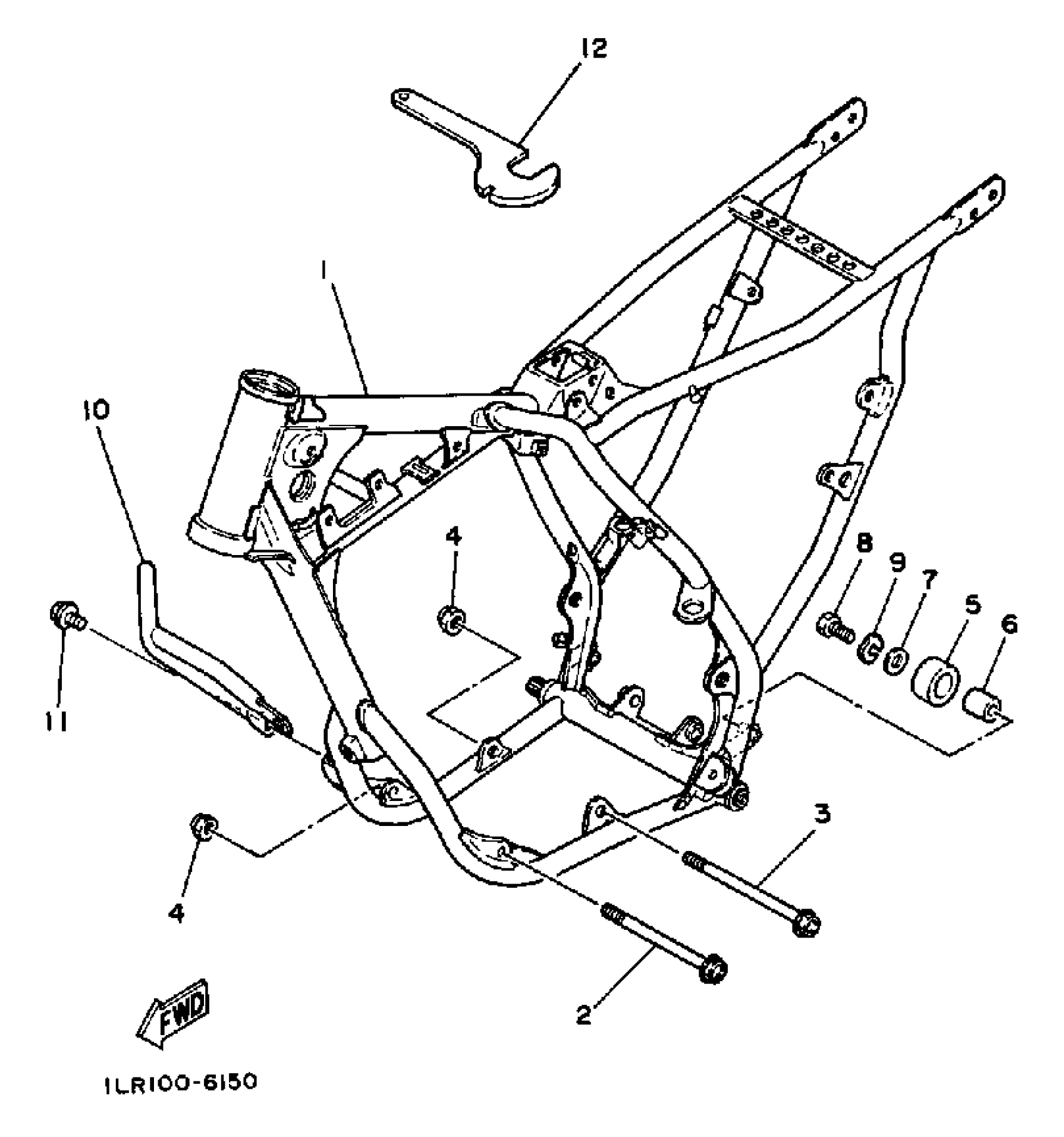

Yamaha YZ80S (YZ80S) 1986 FRAME Diagram

FRAME

BOLT, FLANGE

BOLT,FLANGE

NUT, SELF-LOCKING

TENSIONER

BUSH

WASHER, PLATE (4X4)

BOLT, HEXAGON DEEP RECESS

WASHER(6TA)

GUARD, RADIATOR

BOLT, FLANGE(2UJ)

SPANNER, SPECIAL
