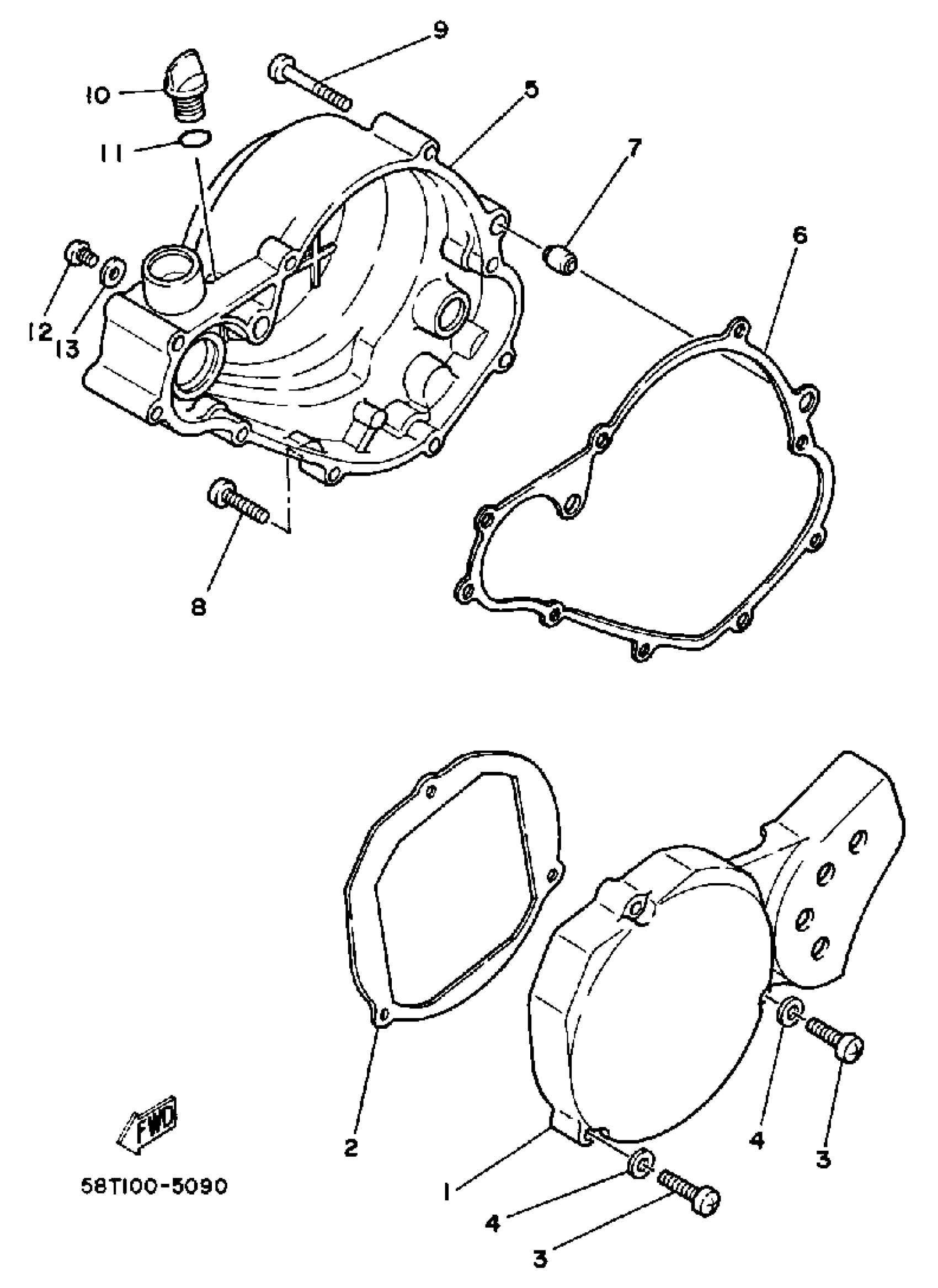

Yamaha YZ80S (YZ80S) 1986 CRANKCASE COVER Diagram

COVER, CRANKCASE L

58T-15411-00-00

Unavailable

GASKET, CRANKCASE COVER (4V0-15451-01)

22W-15451-10-00

Unavailable

SCREW, PAN

98517-06030-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

COVER, CRANKCASE R

1LR-15421-00-00

Unavailable

GASKET, CRANKCASE COVER 3

5X2-15462-10-00

$33.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

SCREW, PAN

98507-06040-00

$3.22

PLUG, OIL

4J2-15363-10-00

$4.63

O-RING (26H)

93210-14579-00

$7.49

SCREW, PAN

98517-06008-00

$8.49

GASKET 838153840000

90430-06016-00

$8.49
