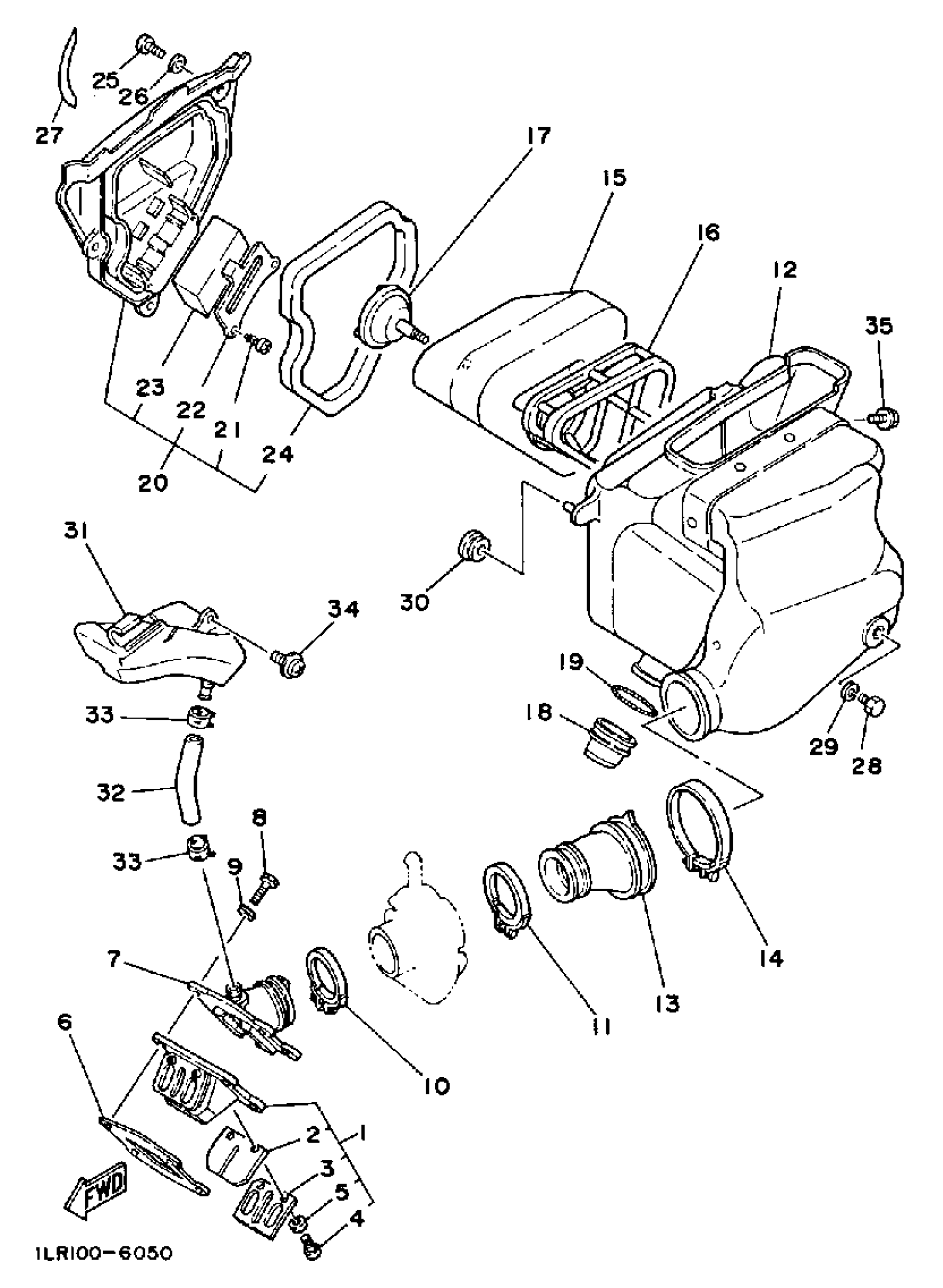

Yamaha YZ80S (YZ80S) 1986 AIR CLEANER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY (58T-13610-00)

58T-13610-01-00

Unavailable

2

. REED, VALVE

58T-13613-00-00

Unavailable

3

STOPPER, REED VALVE

58T-13616-01-00

$9.99

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

3JM-13621-00-00

$17.49

7

JOINT, CARBURETOR

1LR-13565-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

11

CLAMP HOSE 304144550000

90460-51059-00

$16.99

12

AIR CLEANER.CASE ASSEMBLY

39K-14401-03-00

Unavailable

13

JOINT, AIR CLEANER 1

39K-14453-00-00

Unavailable

14

HOSE CLAMP ASSY

90450-58002-00

$16.99

15

ELEMENT, AIR CLEANER

39K-14451-00-00

Unavailable

16

GUIDE, ELEMENT

39K-14458-00-00

Unavailable

17

PLATE, ELEMENT FTTTING (4V2-14468-01)

4V2-14468-02-00

Unavailable

18

SEAL

39K-14457-00-00

Unavailable

19

SPRING, COMPRESSION

90504-03033-00

Unavailable

20

CAP ASSEMBLY, AIR CLNR

1LR-14402-00-00

Unavailable

21

SCREW, TAPPING

97780-40116-00

Unavailable

22

PANEL 1

5X5-1441L-00-00

Unavailable

23

. SEAL

39K-14467-00-00

Unavailable

24

SEAL

43G-14452-00-00

Unavailable

25

SCREW, PAN

98507-06014-00

Unavailable

26

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

27

GRAPHIC 3

(1LR-2174G-00-00)

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable

30

GROMMET

90480-13014-00

Unavailable

31

CHAMBER, AIR

22W-13581-00-00

Unavailable

32

HOSE

90445-164E1-00

Unavailable

33

CLIP

90467-16181-00

Unavailable

34

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

35

BOLT, WITH WASHER(1JK)

90119-06123-00

Unavailable
