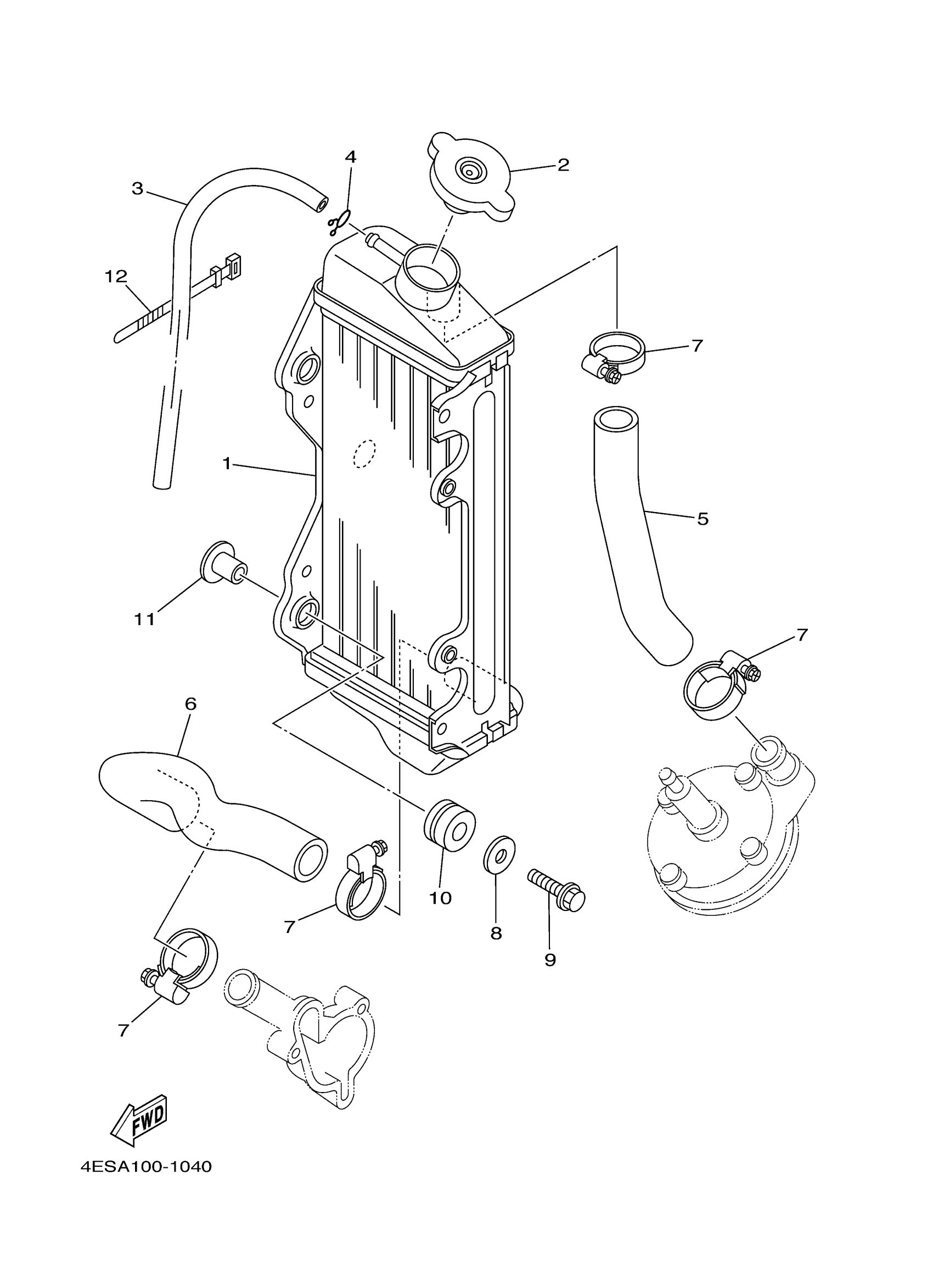

Yamaha YZ80N1 (YZ80) 4ESA 2001 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

4ES-12461-10-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

PIPE, BREATHER

22W-12463-00-00

$20.99

4

CLIP, PIPE 6162435600

90467-08004-00

$8.49

5

PIPE 1

4ES-12481-00-00

Unavailable

6

PIPE 2

4ES-12482-00-00

Unavailable

7

HOSE CLAMP ASSY

90450-28001-00

$14.99

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

BOLT, SMALL FLANGE

95027-06030-00

$3.98

10

GROMMET(3RB)

90480-15528-00

$8.49

11

COLLAR

90387-0614M-00

$11.49

12

BAND, SWITCH CORD

437-83936-01-00

$7.99
