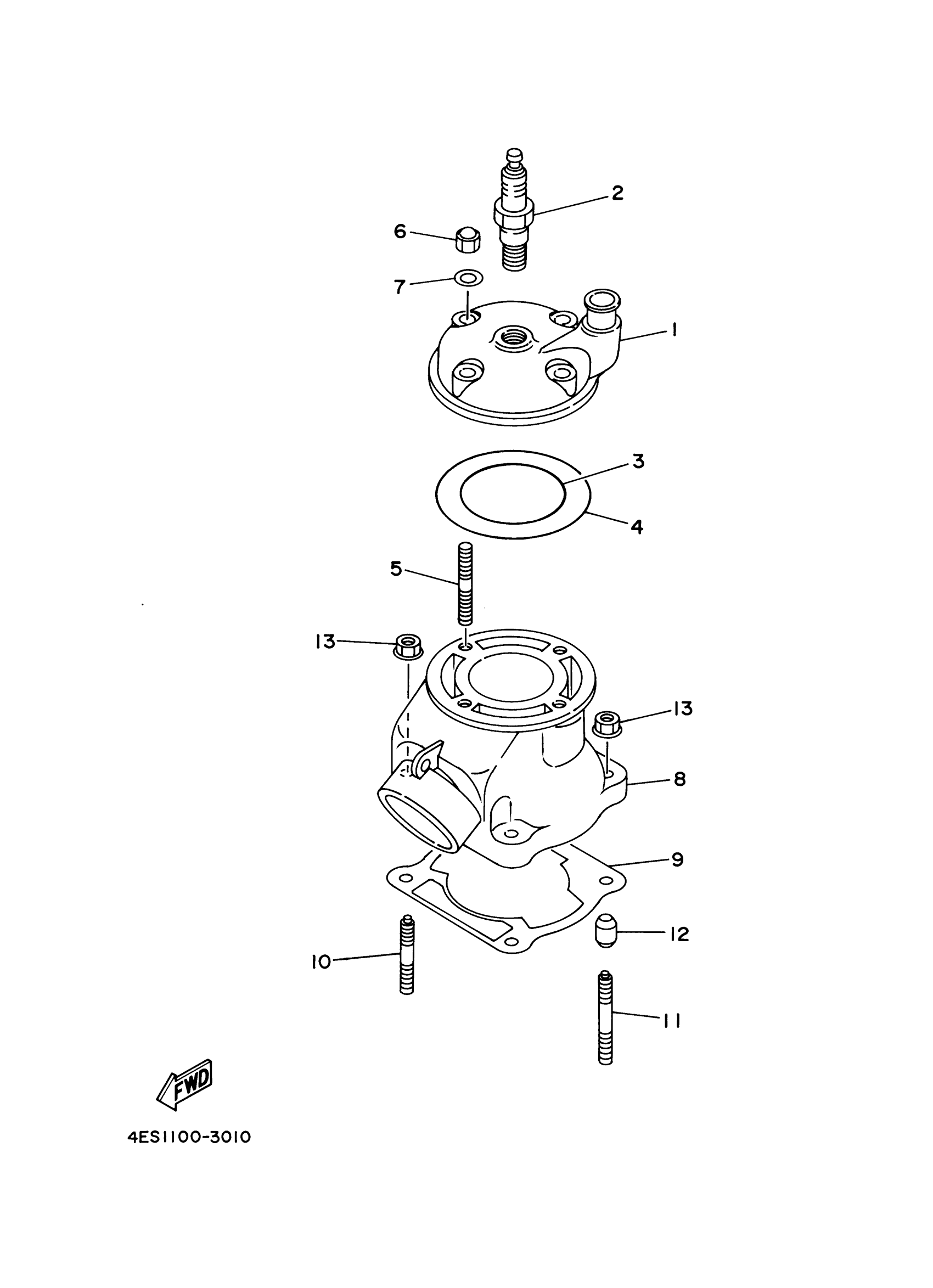

Yamaha YZ80N1 (YZ80) 4ESA 2001 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

4LC-11111-00-00

Unavailable

2

PLUG, SPARK (NGK BR10EG)

BR1-0EG00-00-00

$6.83

3

O-RING (4G0)

93210-56459-00

$10.29

4

O-RING(4ES)

93210-84724-00

$7.94

5

BOLT, STUD (5V6)

90116-08394-00

$3.93

6

NUT, CROWN (4G0)

90176-08026-00

$10.85

7

WASHER, PLATE 3411117500

90201-08087-00

$2.93

8

CYLINDER 1

4ES-11311-30-00

Unavailable

9

GASKET, CYLINDER

4ES-11351-00-00

$16.29

10

BOLT, STUD (3R3)

90116-08318-00

$4.34

11

BOLT, STUD (10V)

90116-08388-00

$7.77

12

PIN, DOWEL(3VD)

99530-10114-00

$2.13

13

NUT(55X)

90179-08491-00

$2.01
