Description

Price

1

FRAME COMP.

4ES-21110-02-P0

Unavailable

2

. BACK, STAY LH

4ES-21123-00-P2

Unavailable

3

BOLT, SMALL FLANGE

95027-08020-00

$8.49

4

WASHER, PLATE (7R4)

90201-080E2-00

$4.73

5

BOLT, FLANGE

95817-08125-00

$9.49

6

BOLT,FLANGE

95817-08135-00

Unavailable

7

NUT, SELF-LOCKING

90185-08169-00

$8.49

8

TENSIONER

30X-22178-00-00

$35.99

9

BUSH

4V4-22184-00-00

$4.47

10

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

11

BOLT, SMALL FLANGE

95027-08012-00

$9.49

12

TENSIONER SET

99999-04397-00

$18.99

13

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

14

COLLAR (3H5)

90387-060A3-00

$8.49

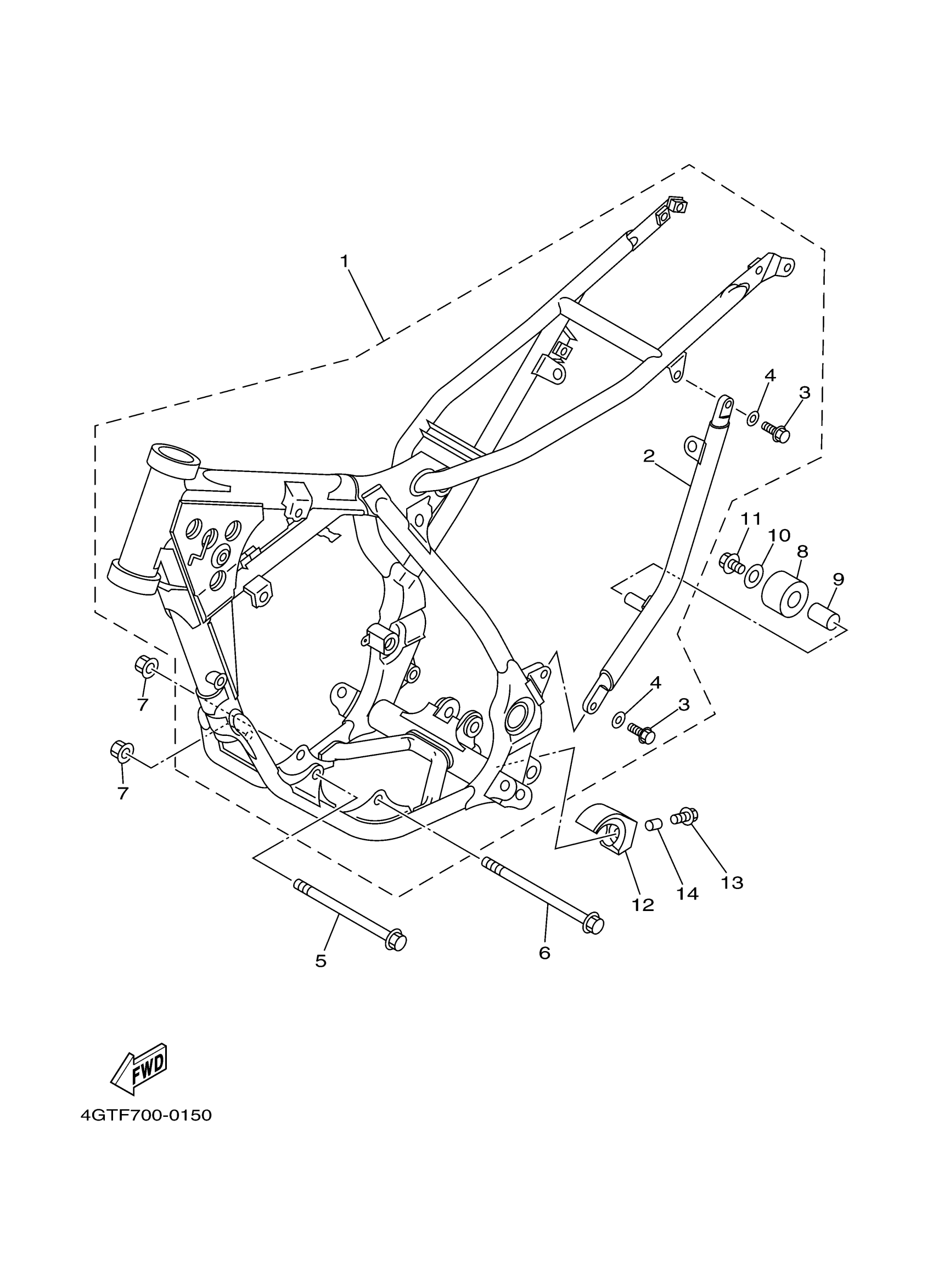

Yamaha YZ80M1 (YZ80) 4ES9 2000 FRAME Diagram

FRAME COMP.

. BACK, STAY LH

BOLT, SMALL FLANGE

WASHER, PLATE (7R4)

BOLT, FLANGE

BOLT,FLANGE

NUT, SELF-LOCKING

TENSIONER

BUSH

WASHER, PLATE(8AT)

BOLT, SMALL FLANGE

TENSIONER SET

BOLT, WITH WASHER(81H)

COLLAR (3H5)
