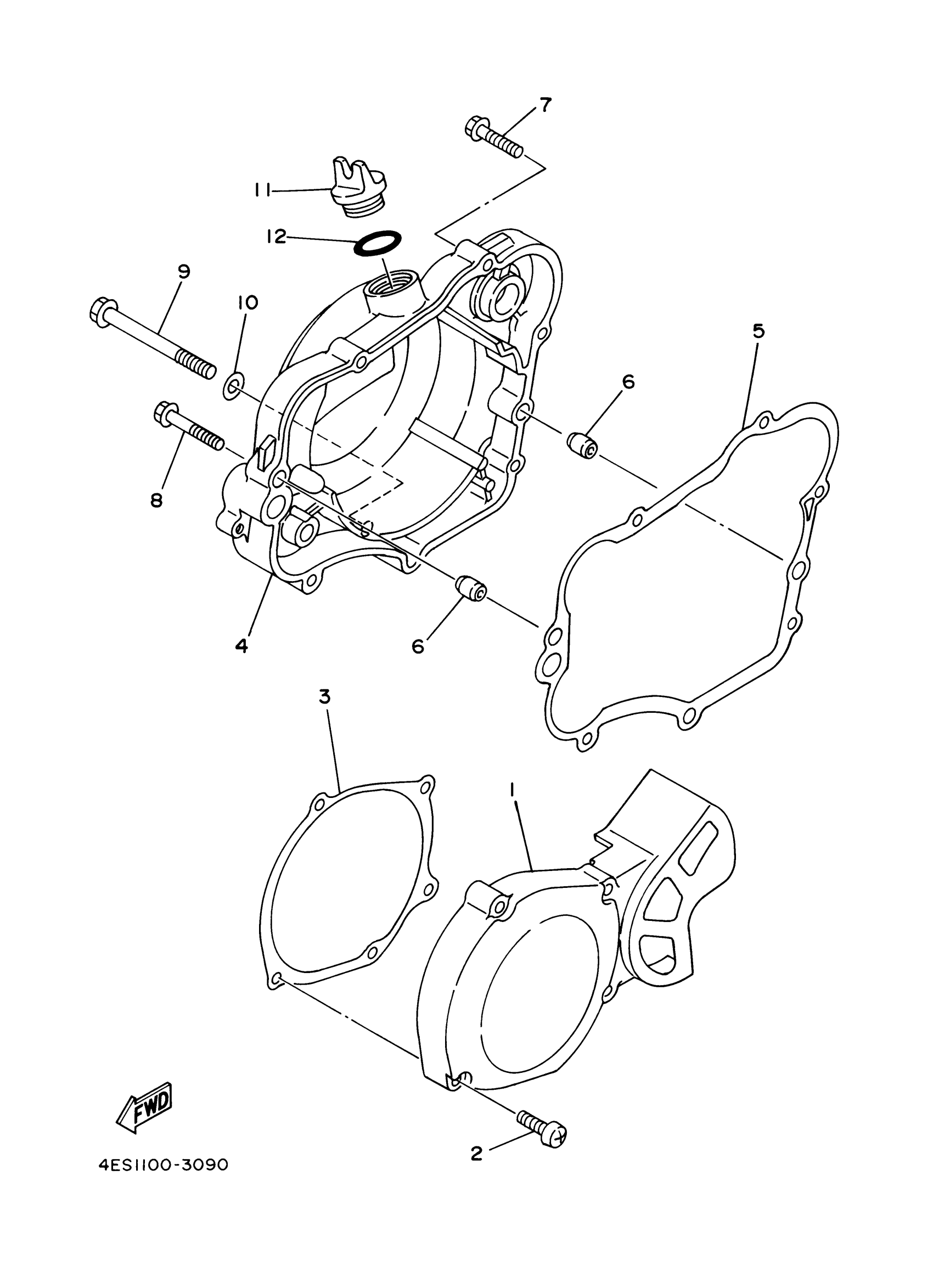

Yamaha YZ80M1 (YZ80) 4ES9 2000 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

4ES-15411-02-00

$16.49

SCREW, PAN

98517-06030-00

Unavailable

GASKET, CRANKCASE COVER 1

4ES-15451-00-00

Unavailable

COVER,CRANKCASE R

4ES-15421-01-00

Unavailable

GASKET, CRANKCASE COVER 2

4ES-15461-00-00

$28.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, SMALL FLANGE

95027-06030-00

$3.98

BOLT, SMALL FLANGE

95027-06040-00

$3.28

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

GASKET

90430-08119-00

$6.62

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable
