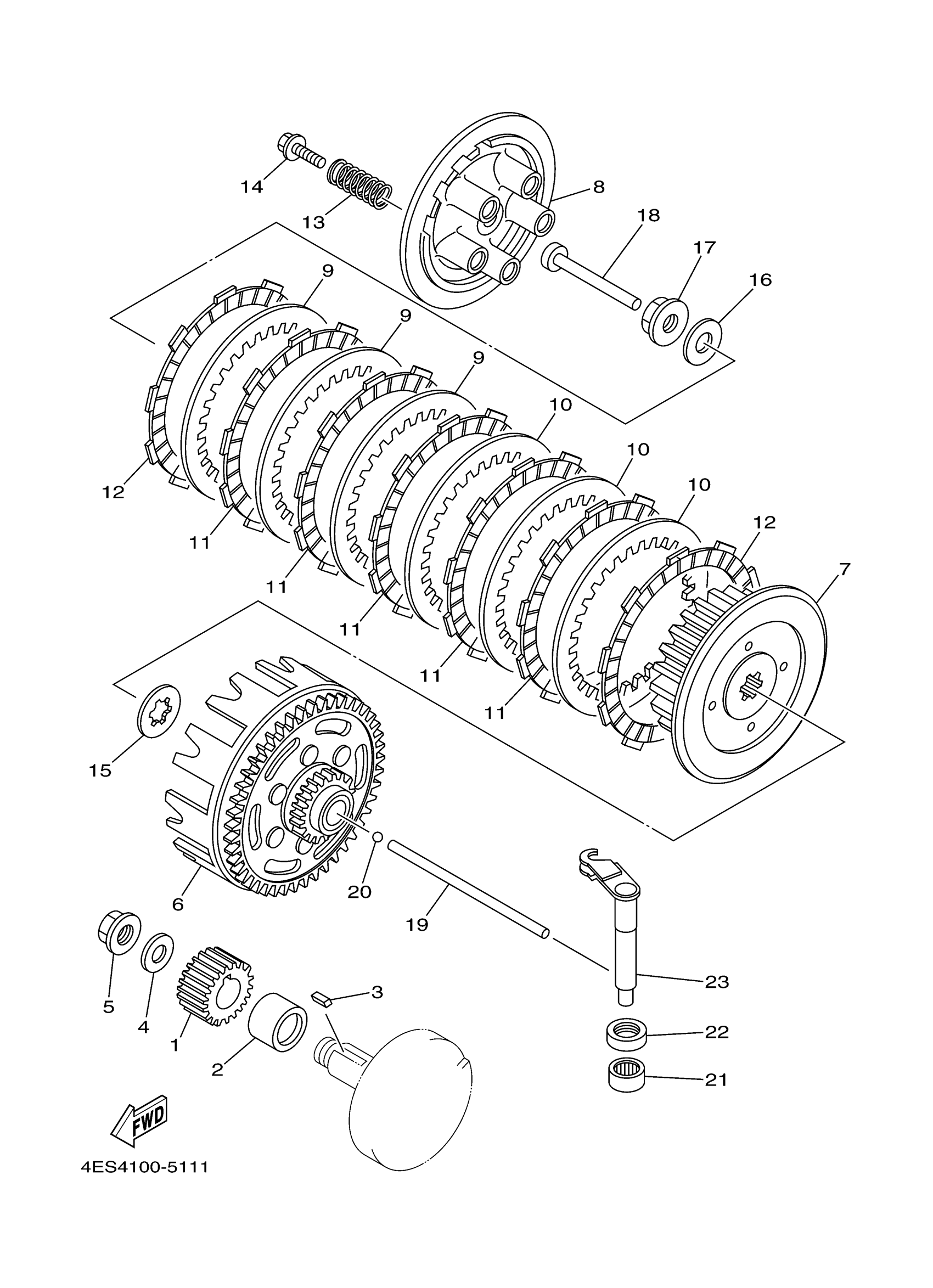

Yamaha YZ80M1 (YZ80) 4ES9 2000 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
4ES-16111-00-00
Unavailable
4
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
6
PRIMARY DRIVEN GEAR
4ES-16150-11-00
Unavailable
9
PLATE, CLUTCH 1
257-16324-10-00
Unavailable
16
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
18
ROD, PUSH 1
4ES-16356-00-00
Unavailable
19
ROD, PUSH 2
2RA-16357-00-00
Unavailable
20
BALL
93503-16003-00
Unavailable
21
BRG,CYL-CAL ROLLER 6G TM
93315-11206-00
Unavailable
22
OIL SEAL (4G0)
93102-12224-00
Unavailable
23
PUSH LEVER COMP.
4ES-16381-00-00
Unavailable
