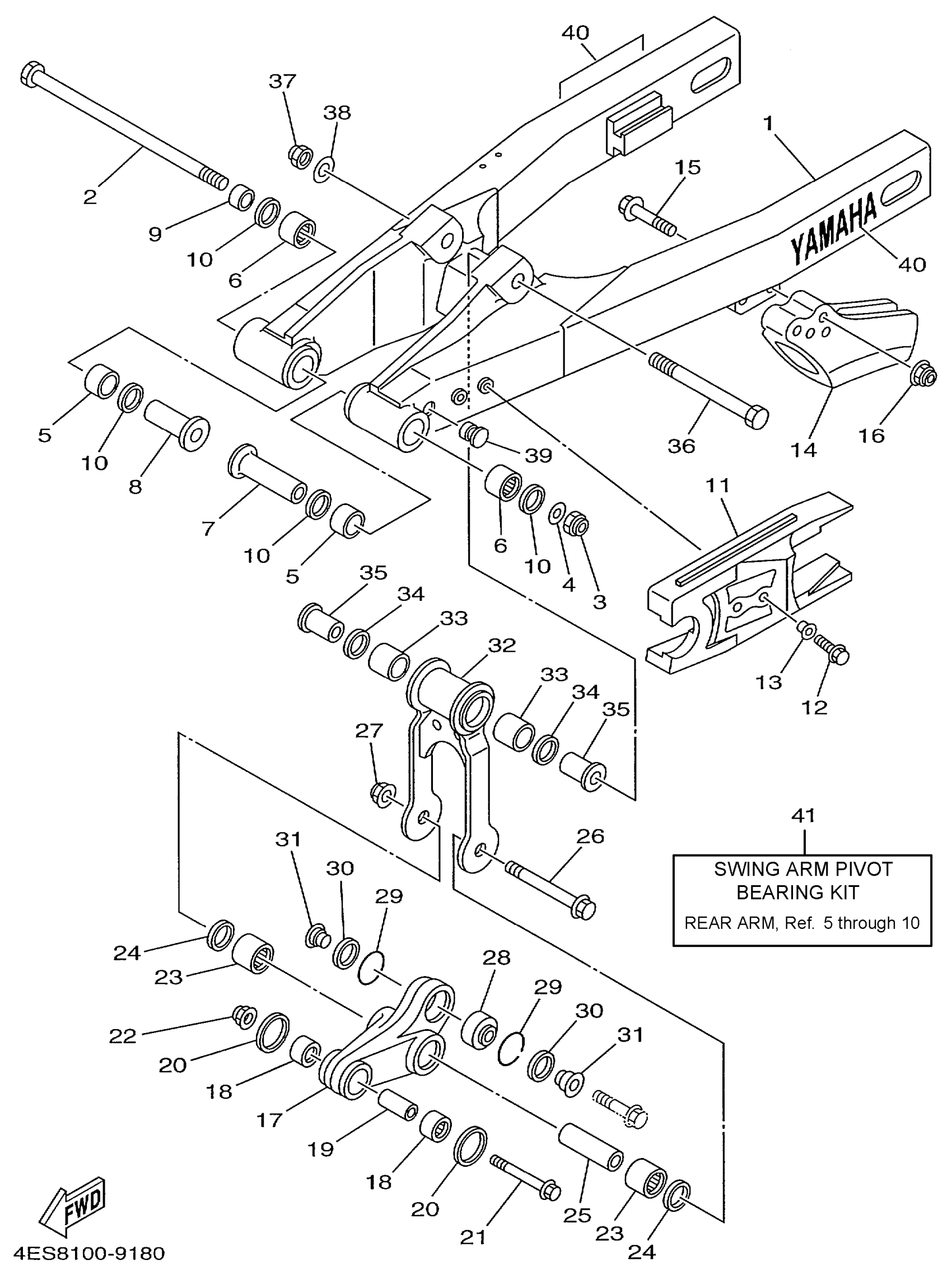

Yamaha YZ80L1 (YZ80) 4ES8 1999 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4ES-22110-01-00

Unavailable

1

REAR ARM COMP.

4LB-22110-01-00

Unavailable

2

AXLE, WHEEL

22W-25181-01-00

$34.99

3

NUT, U (4PM)

95617-12100-00

$4.16

4

WASHER, PLATE (25H)

90201-124G9-00

$7.49

5

BUSH(39K)

90385-17042-00

$21.99

6

BEARING, CYLINDRICAL(39K)

93317-21746-00

$34.99

7

COLLAR(39K)

90387-127J8-00

$35.99

8

COLLAR(39K)

90387-127J7-00

$30.99

9

COLLAR(4ES)

90387-1200U-00

$17.99

10

OIL SEAL

93109-17071-00

$7.49

11

SEAL, GUARD

4ES-22151-10-00

Unavailable

12

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

13

C0LLAR (3JB1)

90387-062X0-00

$20.99

14

SUPPORT, CHAIN

39K-22199-00-00

Unavailable

15

BOLT, WASHER BASED(36Y)

90105-08310-00

Unavailable

16

NUT, SELF-LOCKING

90185-08169-00

Unavailable

17

ARM, RELAY

4ES-2217A-00-00

Unavailable

18

BEARING, CYLINDRICAL(8CM)

93315-21455-00

Unavailable

19

BUSH, SOLID(4ES)

90380-10218-00

Unavailable

20

COVER, THRUST 2

4ES-22129-00-00

Unavailable

21

BOLT, WASHER BASED(3FV)

90105-10582-00

Unavailable

22

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

23

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

24

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

25

BUSH, SOLID(4ES)

90380-12219-00

Unavailable

26

BOLT, FLANGE

90105-12382-00

Unavailable

27

NUT, U FLANGE

95607-12200-00

Unavailable

28

BEARING(3XP)

93399-99935-00

Unavailable

29

CIRCLIP (23X)

93440-30113-00

Unavailable

30

SEAL, DUST

3XJ-22475-00-00

Unavailable

31

COLLAR(3XJ)

90387-103X9-00

Unavailable

32

ROD, CONNECTING 1

4ES-2217F-00-00

Unavailable

33

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

34

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

35

BUSH, SOLID(4ES)

90381-12091-00

Unavailable

36

BOLT(4ES)

90101-12755-00

Unavailable

37

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

38

WASHER, PLATE

90201-12047-00

Unavailable

39

PLUG (31M)

90338-10150-00

Unavailable

40

EMBLEM, YAMAHA

99244-00140-00

Unavailable

41

SWING ARM PIVOT BEARING KIT

1SN-W002C-00-00

Unavailable
