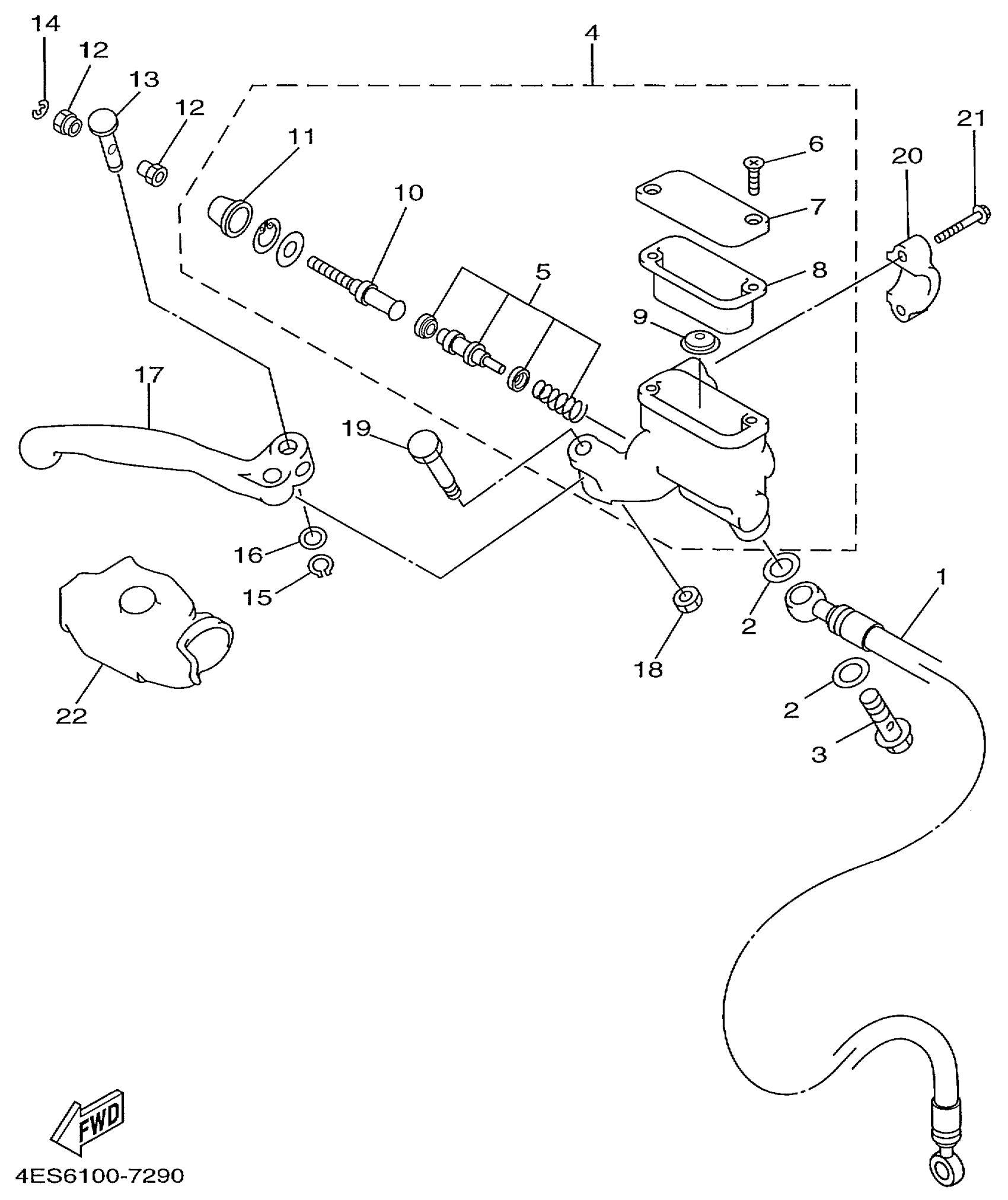

Yamaha YZ80L1 (YZ80) 4ES8 1999 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

4ES-25872-02-00

Unavailable

2

WASHER, PLATE(481)

90201-10118-00

Unavailable

3

BOLT, UNION

90401-10172-00

$5.60

4

MSTR CYLNDR SUB ASY

4SS-W2587-01-00

Unavailable

5

CYLINDER KIT, MASTER

4SS-W0041-00-00

$55.99

6

SCREW, FLAT

98707-04012-00

$2.18

7

CAP, RESERVOIR

4SS-25852-01-00

Unavailable

8

. DIAPHRAGM, RESERVOIR

4SS-25854-00-00

Unavailable

9

. SEPARATOR ASSY

4SS-25889-00-00

Unavailable

10

. PUSH ROD COMP

4SS-25880-00-00

Unavailable

11

. BOOT, MASTER CYLINDER

4SS-25868-00-00

Unavailable

12

NUT, ADJUSTING

4SS-2538E-00-00

Unavailable

13

COLLAR, LEVER 1

4SS-83913-00-00

Unavailable

14

CIRCLIP(6L5)

99080-03600-00

Unavailable

15

CIRCLIP

4SS-25866-00-00

Unavailable

16

WASHER

4SS-2583G-00-00

Unavailable

17

LEVER 2

4SS-83922-02-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

BOLT, LEVER

4SS-2589F-00-00

Unavailable

20

BRACKET, MASTER CYLINDER

3YK-25867-00-00

Unavailable

21

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

22

COVER, HANDLE LEVER 1

4SS-26372-00-00

Unavailable
