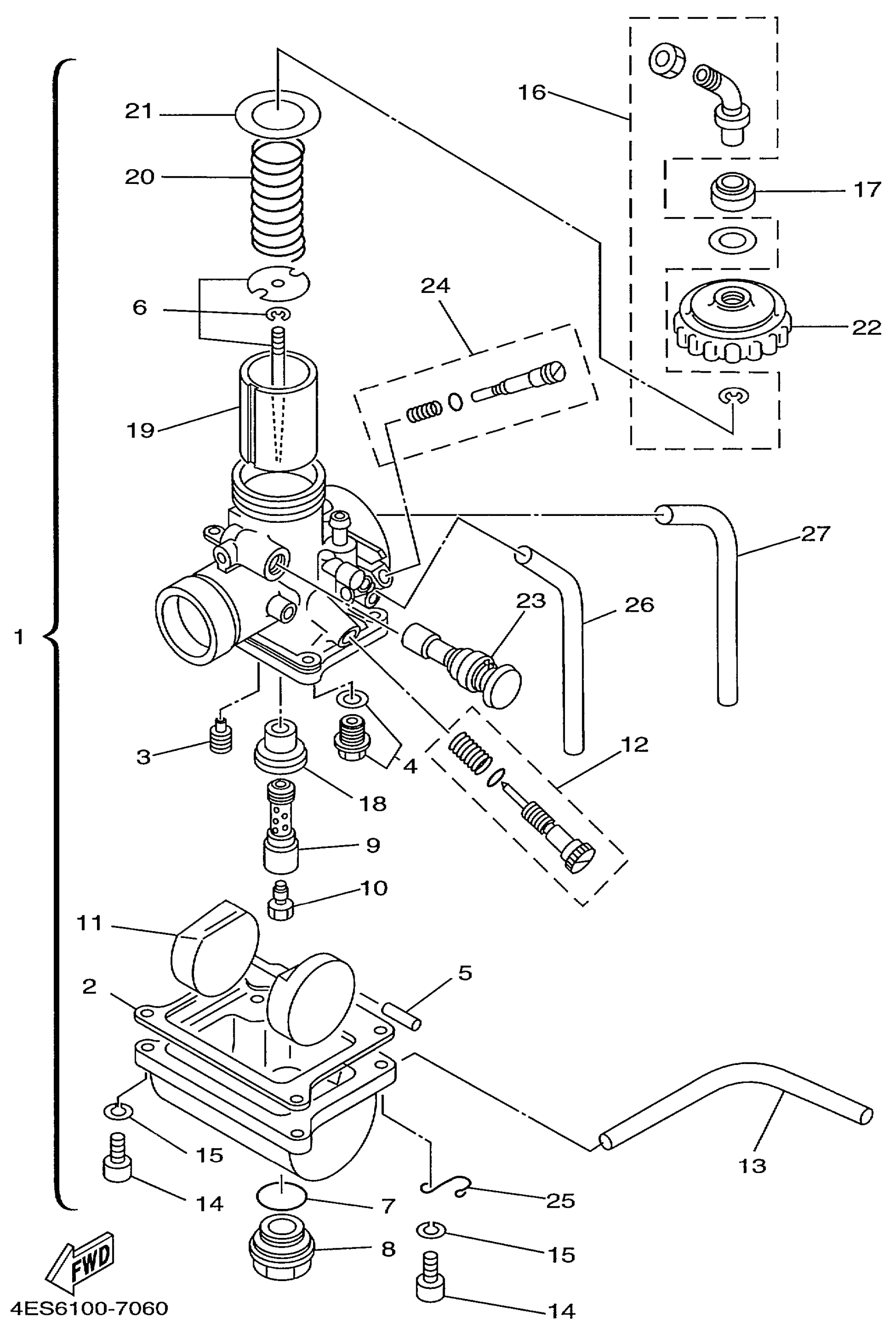

Yamaha YZ80L1 (YZ80) 4ES8 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4ES-14101-10-00

Unavailable

2

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

3

JET,PILOT (# 30)

260-14142-30-00

$9.99

3

JET, PILOT (# 32.5)

260-14142-32-00

Unavailable

3

JET, PILOT (# 35)

260-14142-35-00

$9.99

4

NEEDLE VALVE SET

23L-14107-25-00

$42.99

5

PIN, FLOAT

127-14186-00-00

$6.65

6

. NEEDLE SET

58T-1490J-00-00

Unavailable

7

O-RING

3JE-14561-00-00

$16.49

8

. PLUG, SCREW

3R1-14115-00-00

Unavailable

9

. NOZZLE, MAIN

3R1-14141-50-00

Unavailable

9

. NOZZLE, MAIN

3R1-14141-52-00

Unavailable

9

. NOZZLE, MAIN

3R1-14141-54-00

Unavailable

10

JET, MAIN #290

137-14143-58-A1

Unavailable

10

JET, MAIN #300

137-14143-60-A0

$11.99

10

JET, MAIN #310

137-14143-62-A1

Unavailable

11

FLOAT

314-14185-00-00

Unavailable

12

THROTTLE SCREW SET

31J-14103-00-00

Unavailable

13

PIPE 1

3XV-14348-20-00

Unavailable

14

SCREW, PAN HEAD

98507-04018-00

Unavailable

15

WASHER(6TA)

92907-04100-00

Unavailable

16

. CABLE ADJUST SCREW SET

22W-14106-00-00

Unavailable

17

CAP

3X3-14169-00-00

Unavailable

18

. WASHER, MAIN JET

39K-14153-00-00

Unavailable

19

. VALVE, THROTTLE 1

2X6-14112-25-00

Unavailable

19

. VALVE, THROTTLE 1

2X6-14112-30-00

Unavailable

19

. VALVE, THROTTLE 1

2X6-14112-35-00

Unavailable

20

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

21

GASKET

2A6-14126-00-00

Unavailable

22

. TOP, MIXING CHAMBER

2A6-14158-00-00

Unavailable

23

. PLUNGER, STARTER

3SB-14171-00-00

Unavailable

24

AIR SCREW SET

10W-14104-00-00

Unavailable

25

CLIP

25G-14937-00-00

Unavailable

26

PIPE

26H-14197-01-00

Unavailable

27

PIPE

26H-14197-01-00

Unavailable
