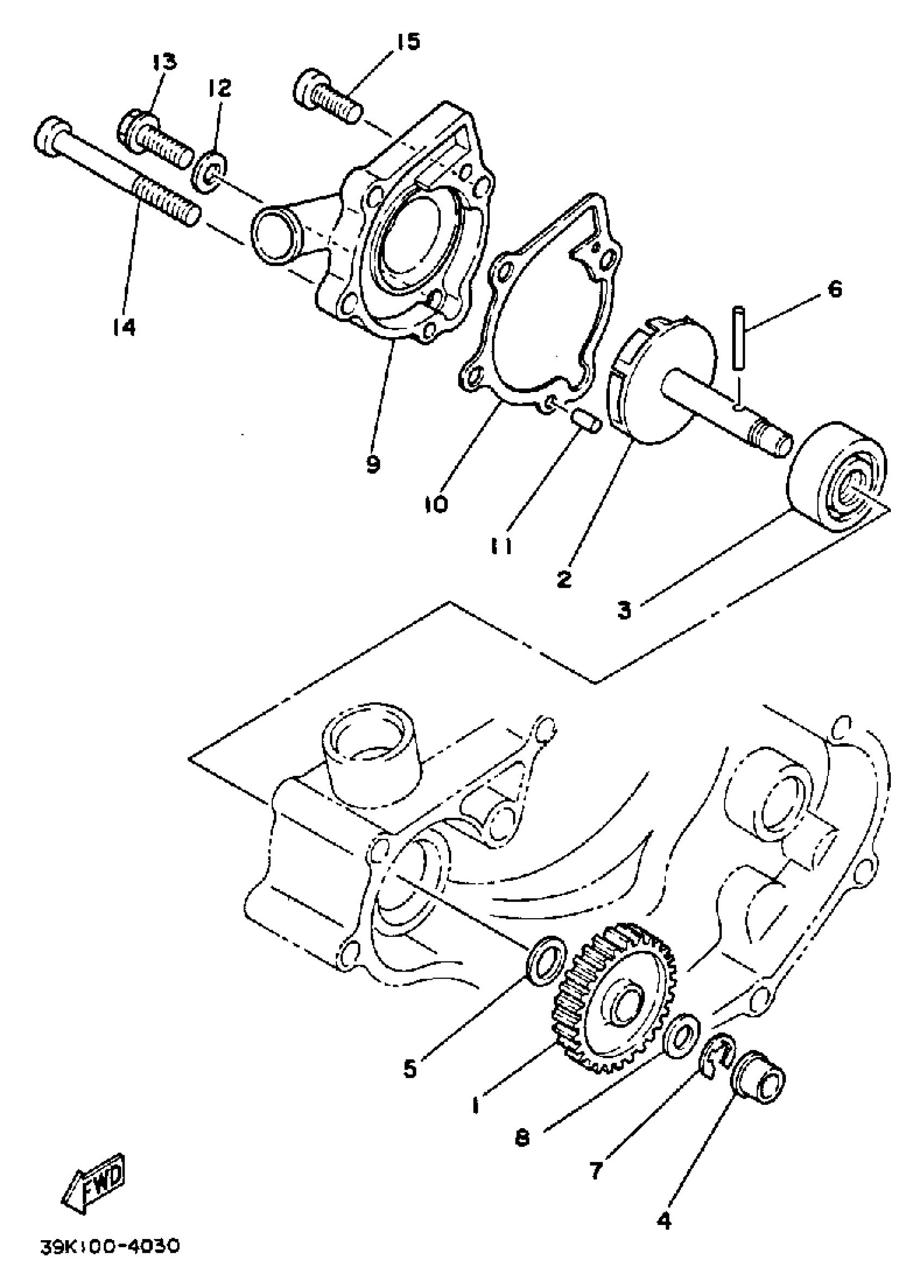

Yamaha YZ80L (YZ80L_N) 39K 1984 WATER PUMP YZ80N Diagram

GEAR, IMPELLER SHAFT

39K-12459-00-00

Unavailable

GEAR, IMPELLER SHAFT

5X2-12459-01-00

Unavailable

IMPELLER SHAFT ASSEMBLY

22W-12450-00-00

Unavailable

OIL SEAL

93103-10011-00

$46.99

BUSH (214-17843-00)

90381-08002-00

$11.49

WASHER, PLATE (2W5)

90201-10614-00

$8.49

PIN,DOWEL (137)

93603-22028-00

$3.76

CIRCLIP

99080-07600-00

Unavailable

WASHER PLATE 141181390000

90201-08085-00

$9.49

COVER, HOUSING

2VE-12422-00-00

Unavailable

GASKET, HSNG COVER 2

5X2-12428-10-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$8.49

GASKET (4V2)

90430-06166-00

$3.76

BOLT, FLANGE

95817-06020-00

$3.81

SCREW, PAN

98507-06060-00

$7.99

SCREW, PAN

98517-06020-00

Unavailable
