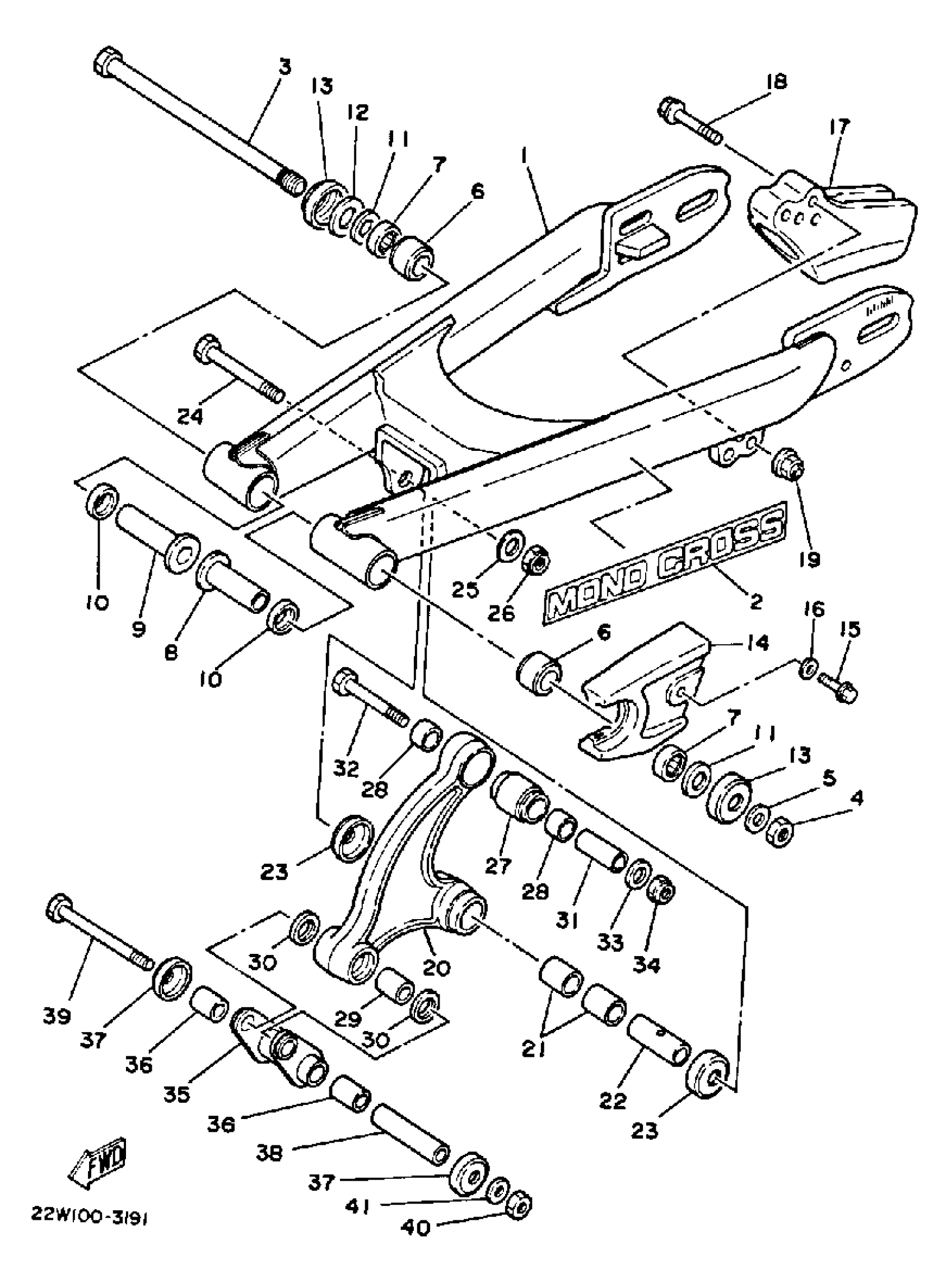

Yamaha YZ80L (YZ80L_N) 39K 1984 SWING ARM Diagram
#
1
REAR ARM
39K-22110-00-35
Unavailable
2
REFLECTOR
5X1-2218A-00-00
Unavailable
3
SHAFT, PIVOT
4V1-22141-00-00
Unavailable
14
SEAL, GUARD
39K-22151-00-00
Unavailable
16
WASHER, PLATE
90201-06380-00
Unavailable
17
SUPPORT, CHAIN
39K-22199-00-00
Unavailable
18
BOLT, FLANGE
95814-08040-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
Unavailable
20
ARM, RELAY
39K-2217A-00-00
Unavailable
21
BUSH, BIMETAL FORMED(39K)
90384-18190-00
Unavailable
22
BUSHING, REAR ARM INNER
2J5-22124-00-00
Unavailable
23
COVER, THRUST 2
5X6-22129-00-00
Unavailable
24
BOLT (1M1)
90109-10453-00
Unavailable
25
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
26
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
27
BUSH 2
22W-22124-00-00
Unavailable
28
BUSH, SOLID (22W)
90380-16109-00
Unavailable
29
BUSH, FORMED (22W)
90383-16023-00
Unavailable
30
OIL SEAL (22W)
93109-16035-00
Unavailable
31
COLLAR (22W)
90387-106G0-00
Unavailable
32
BOLT (22W)
90109-10689-00
Unavailable
33
WASHER, PLATE
92990-10600-00
Unavailable
34
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
35
ROD, CONNECTING 1
22W-2217F-00-00
Unavailable
36
BUSH, FORMED (22W)
90383-16023-00
Unavailable
37
COVER, THRUST 2
22W-22129-00-00
Unavailable
38
COLLAR (22W)
90387-105G9-00
Unavailable
39
BOLT
90109-10688-00
Unavailable
40
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
41
WASHER, PLATE
92990-10600-00
Unavailable
