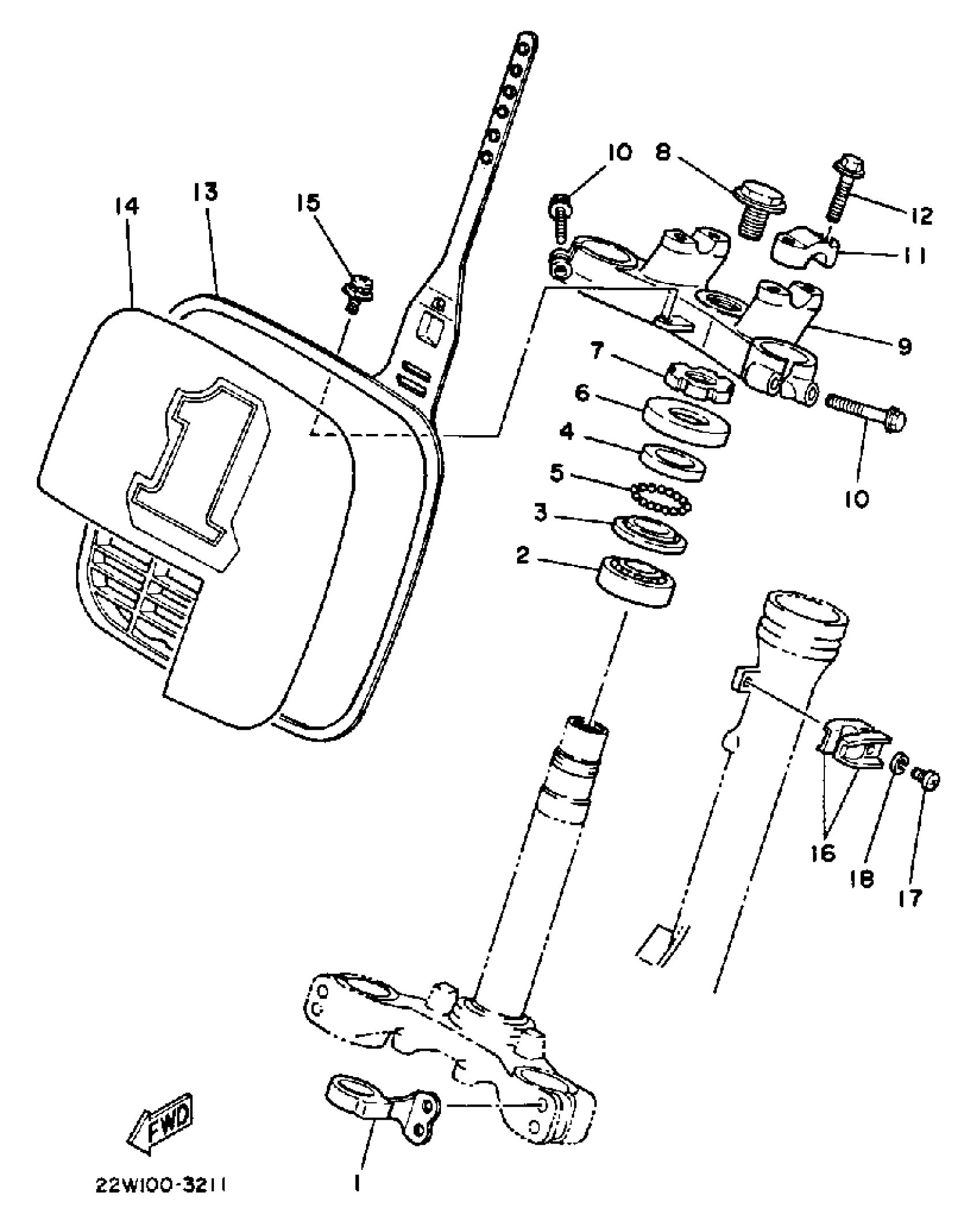

Yamaha YZ80L (YZ80L_N) 39K 1984 STEERING Diagram

#

Description
Price

1

GUIDE, WIRE

3R4-23389-00-00

$22.22

2

BEARING(4ES)

93332-00079-00

$59.36

3

RACE, BALL 1

BP2-23411-00-00

$7.83

4

RACE, BALL 2

BP2-23412-00-00

$5.33

5

BALL

93503-16003-00

$1.96

6

COVER, BALL RACE

122-23416-00-00

$5.98

7

NUT

90179-25004-00

$19.41

8

BOLT (2A2)

90105-14102-00

$4.81

9

CROWN, HANDLE

22W-23435-00-98

Unavailable

10

BOLT, FLANGE

95817-08035-00

$6.22

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

12

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

13

PLATE, NUMBER

22W-23485-01-00

Unavailable

13

PLATE, NUMBER

3MK-23485-00-00

Unavailable

14

EMBLEM 5

22W-21785-00-00

Unavailable

15

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

16

CLAMP (3R0)

90462-14055-00

Unavailable

17

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

18

WASHER, SPRING

92995-06100-00

$2.95
