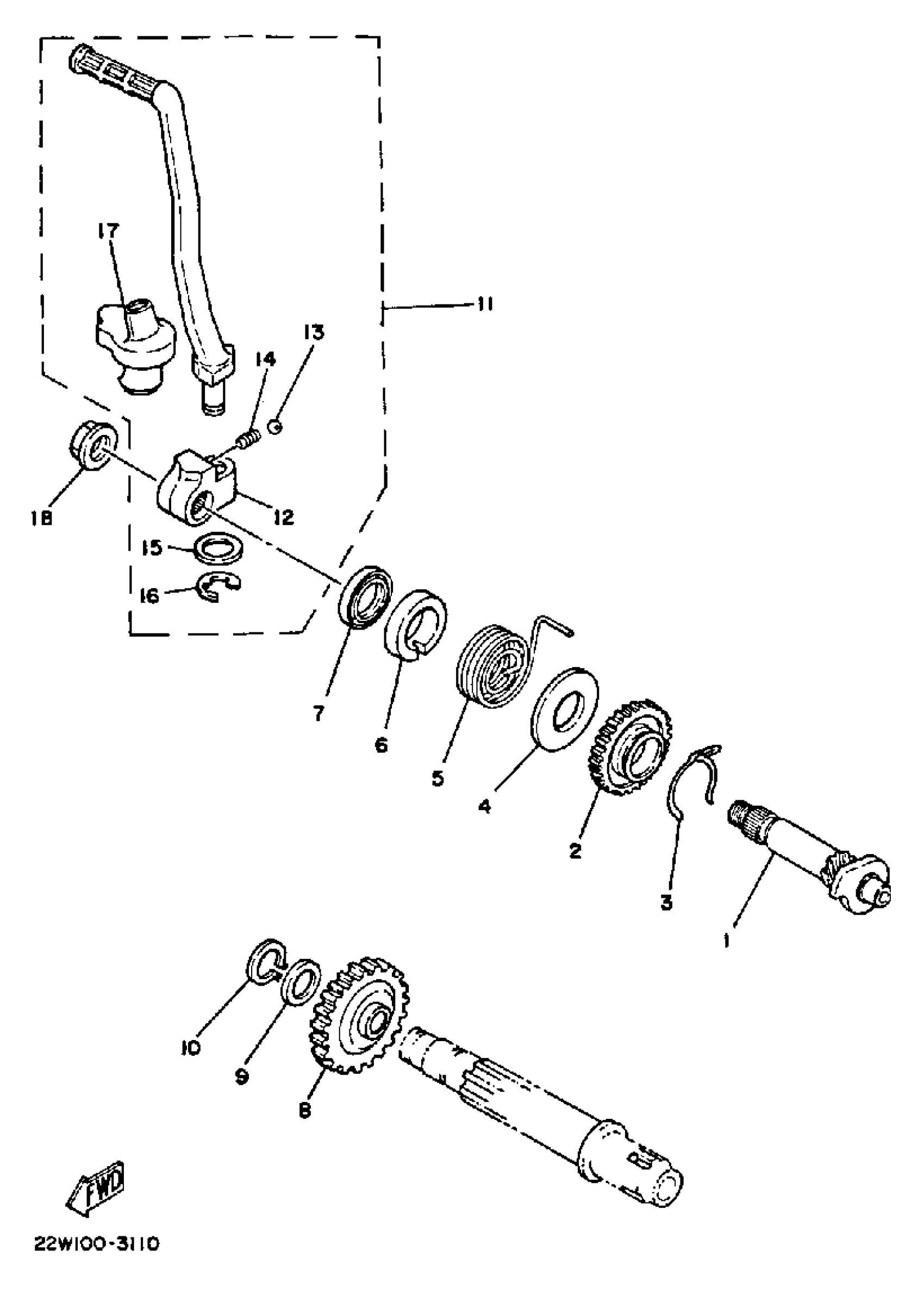

Yamaha YZ80L (YZ80L_N) 39K 1984 STARTER Diagram

KICK AXLE ASSEMBLY

22W-15660-00-00

Unavailable

GEAR, KICK (24T)

4V0-15641-00-00

Unavailable

GEAR, KICK (24T)

4V0-15641-00-00

Unavailable

CLIP 296156870000

90468-26046-00

$7.49

WASHER, PLATE

90201-154A1-00

Unavailable

SPRING, TORSION(2UV)

90508-26750-00

$12.49

GUIDE, SPRING

4V0-15664-00-00

Unavailable

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

GEAR, SPROCKET IDLE

10X-15651-00-00

Unavailable

WASHER (692)

90201-12M34-00

Unavailable

CIRCLIP(10Y)

99009-12400-00

$3.59

KICK CRANK ASSEMBLY

22W-15620-00-00

Unavailable

. BOSS, KICK CRANK

4V0-15621-00-00

Unavailable

BALL (12R)

93507-32031-00

$4.73

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

WASHER, PLATE (583)

90201-12631-00

Unavailable

CIRCLIP (137)

93430-08007-00

Unavailable

. COVER, KICK LEVER

4V0-15618-00-00

Unavailable

NUT, FLANGE(3BM)

95704-10500-00

Unavailable
