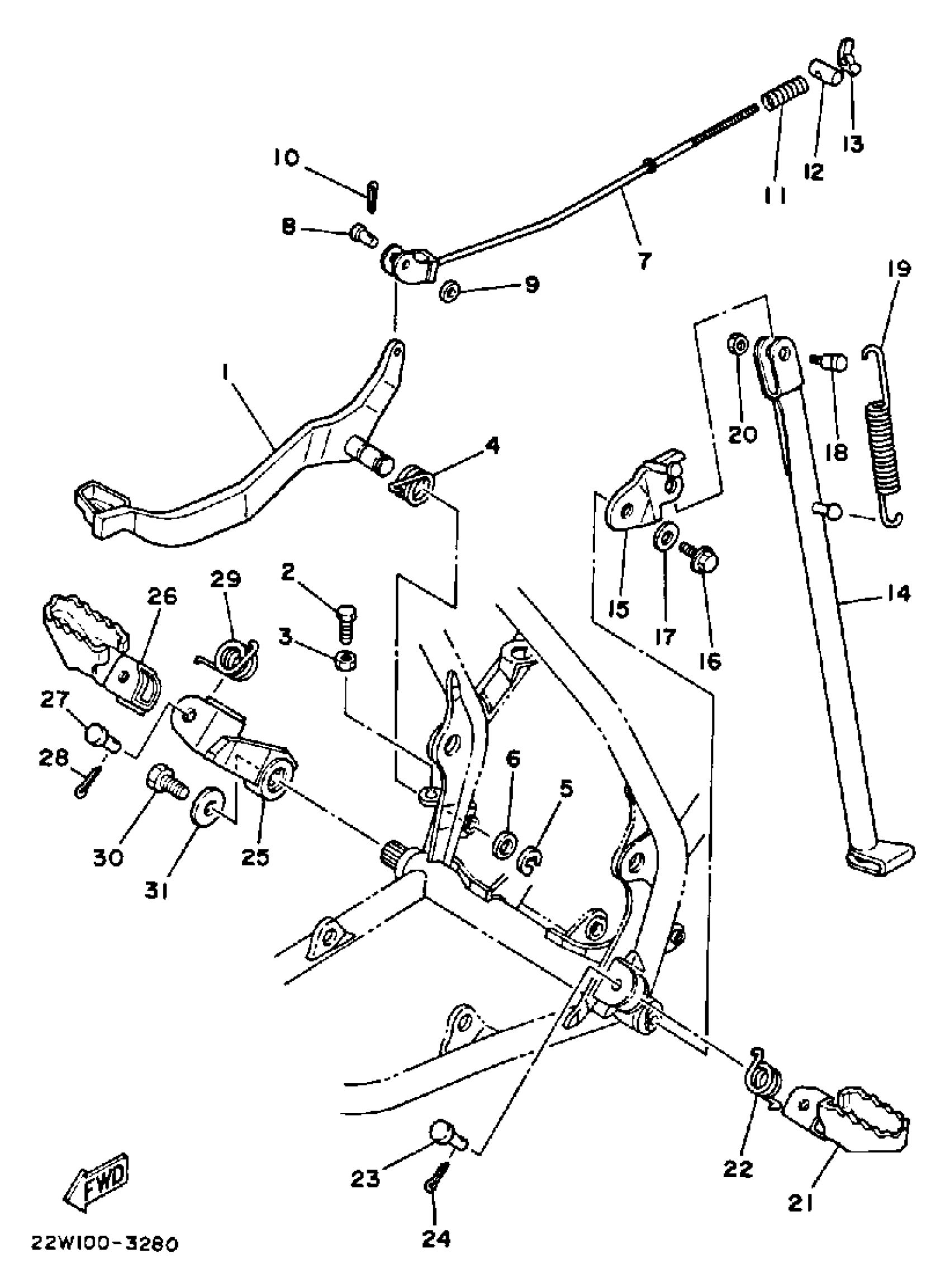

Yamaha YZ80L (YZ80L_N) 39K 1984 STAND-FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1LR-27211-00-00

Unavailable

2

BOLT (661)

97013-06012-00

$5.60

3

NUT(650)

95380-06700-00

$8.49

4

SPRING, TORSION

90508-32468-00

Unavailable

5

CIRCLIP(J51)

99080-09600-00

$2.55

6

WASHER, PLATE(663)

92990-12600-00

$8.49

7

ROD, BRAKE

39K-27231-00-00

Unavailable

8

PIN, CLEVIS (24X)

90240-06103-00

$7.49

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

10

PIN, COTTER

91490-20025-00

$1.99

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

PIN 1562723700

90249-12008-00

$8.49

13

NUT, WING (1K5)

90175-06013-00

$4.88

14

STAND, SIDE

22W-27311-00-R4

Unavailable

15

BRACKET, SIDE STAND

22W-27321-00-00

Unavailable

16

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

17

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

18

BOLT 1092537300

90109-08063-00

Unavailable

19

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

FOOTREST 1

22W-27411-01-90

Unavailable

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

23

PIN, CLEVIS

90240-08097-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BRACKET, FOOTREST 2 (5X2-27422-00-33)

5X2-27422-01-33

Unavailable

26

FOOTREST 2

22W-27421-01-90

Unavailable

27

PIN, CLEVIS

90240-08097-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

30

BOLT(6TD)

97017-10025-00

Unavailable

31

WASHER, PLATE

90201-10144-00

Unavailable
