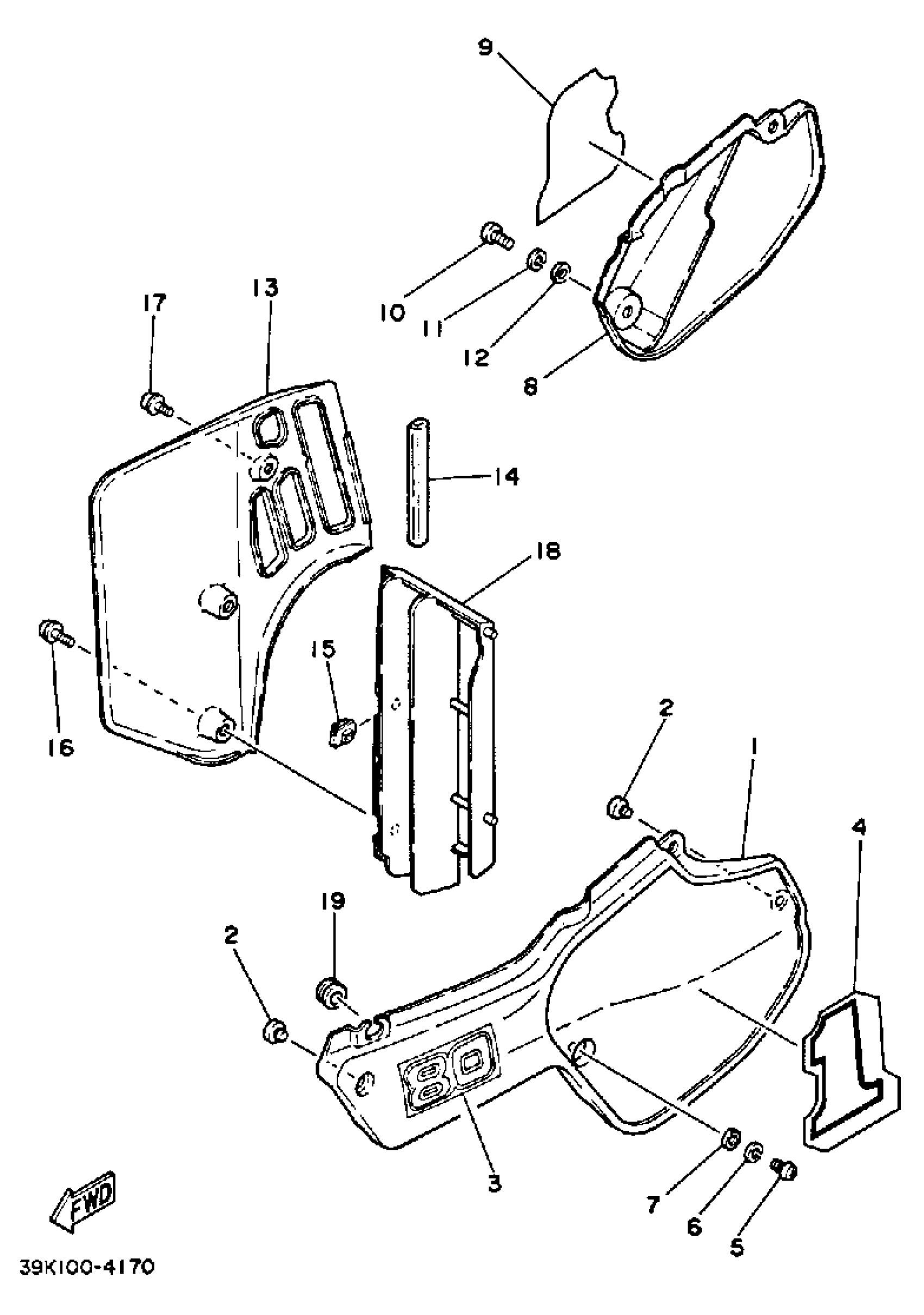

Yamaha YZ80L (YZ80L_N) 39K 1984 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 (39K-21711-00-00)

39K-21711-01-98

Unavailable

1

COVER, SIDE 1

39K-21711-11-00

Unavailable

2

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

3

EMBLEM 1

39K-21781-00-00

Unavailable

3

EMBLEM 1

39K-21781-10-00

Unavailable

4

EMBLEM 2

3R1-21782-00-00

Unavailable

5

SCREW, PAN

98507-06014-00

$8.49

6

WASHER, SPRING

92995-06100-00

Unavailable

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

8

COVER, SIDE 2 (39K-21721-00-00)

39K-21721-00-98

Unavailable

8

COVER, SIDE 2 (39K-21721-10-00)

39K-21721-10-98

Unavailable

9

EMBLEM 2

3R1-21782-00-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

13

COVER, SIDE 4

39K-21741-00-00

Unavailable

13

COVER, SIDE 4

39K-21741-10-00

Unavailable

14

DAMPER

22W-21746-00-00

Unavailable

15

NUT

22W-21791-00-00

Unavailable

16

SCREW, WITH WASHER

90159-05101-00

Unavailable

17

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

18

PANEL 1

39K-2172A-00-00

Unavailable

19

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable
