REAR SHOCKS

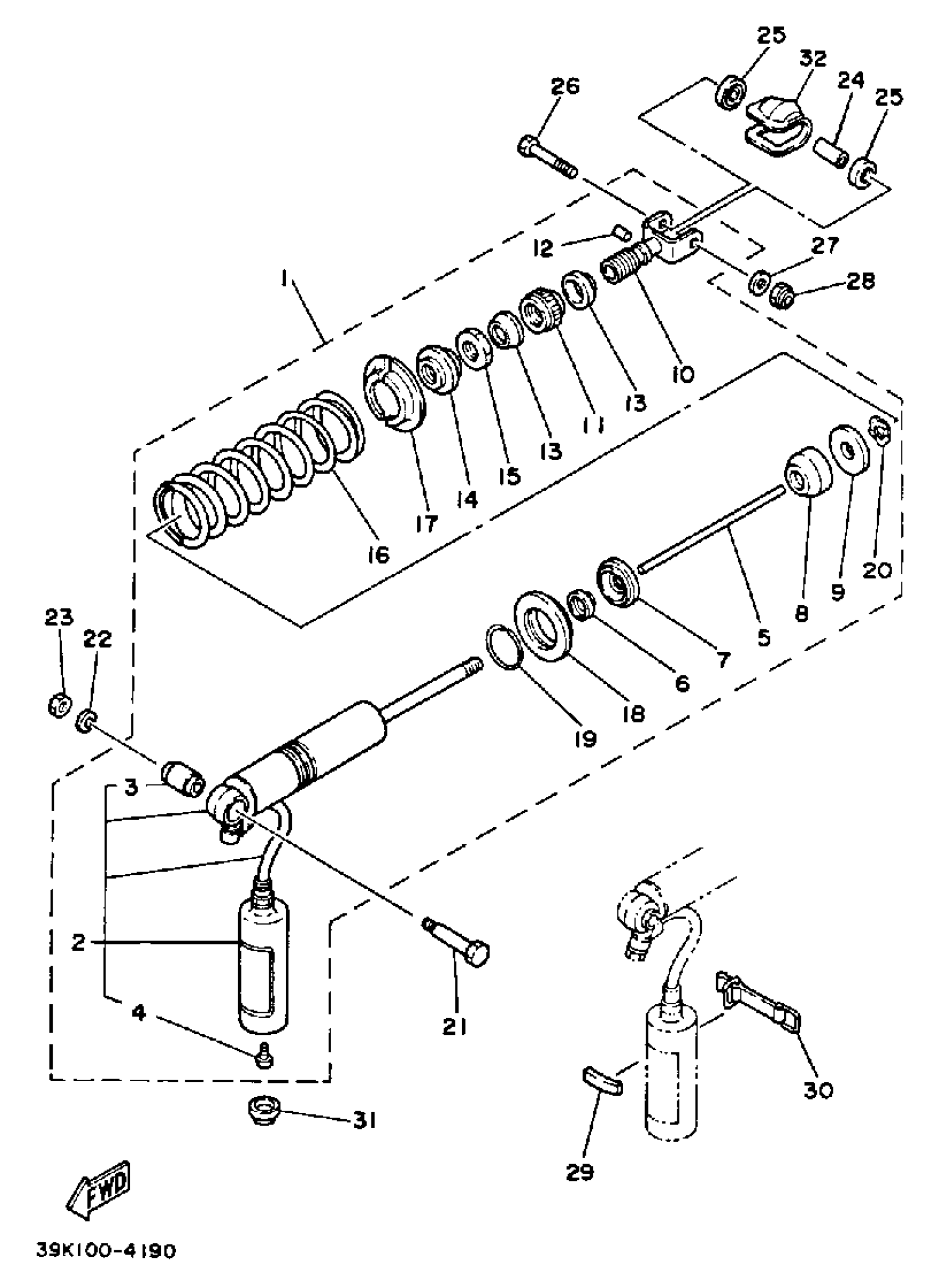

Yamaha YZ80L (YZ80L_N) 39K 1984 REAR SHOCKS Diagram
#
1
SHK/ABS ASSEMBLY, REAR
(39K-22210-00-26)
Unavailable
1
SHK/ABS ASSEMBLY, REAR ASSEMBLY
3ML-22210-00-P0
Unavailable
2
SHK/ABS ASSEMBLY, REAR ASSEMBLY
3ML-22210-00-P0
Unavailable
3
.. BUSH, RR SHOCK ABS
2X6-22216-00-00
Unavailable
4
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
5
. ROD, PUSH
22W-22489-00-00
Unavailable
6
. SEAL, DUST
29L-22475-00-00
Unavailable
7
. CAP, CASE
39K-22472-00-00
Unavailable
8
. BUMP, STOP
5X2-22493-00-00
Unavailable
9
. SUPPORT, BUMP STOP
5X2-22228-00-00
Unavailable
10
UPPER BRACKET SUB ASSEMBLY
(22W-22409-00-00)
Unavailable
11
. NUT, ADJUSTING
5X3-22497-00-00
Unavailable
12
. PIN, DOWEL
93604-26132-00
Unavailable
13
. COVER
3R4-22221-01-00
Unavailable
14
. SEAT, SPRING UPPER
3R4-22213-00-00
Unavailable
15
NUT, HEXAGON (29L)
90170-20320-00
Unavailable
16
SPRING, MXS SOFT
(22W-22212-00-6W)
Unavailable
16
SPRING, MXS HARD 83
22W-22212-20-26
Unavailable
16
. SPRING, MXS STD
22W-22212-20-6W
Unavailable
16
. SPRING, MXS HARD 84
22W-22212-30-26
Unavailable
16
. SPRING, MXS HARD
22W-22212-30-6W
Unavailable
17
GUIDE, SPRING 1
3P6-22214-10-00
Unavailable
18
. SEAT, SPRING LOWER
22W-22223-00-00
Unavailable
19
CIRCLIP (5X2)
93440-42101-00
Unavailable
20
. WASHER, WAVE
90206-12082-00
Unavailable
21
BOLT (22W)
90109-10729-00
Unavailable
22
WASHER, PLATE
92990-10600-00
Unavailable
23
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
24
COLLAR (22W)
90387-106G0-00
Unavailable
25
COVER, THRUST 2
22W-22129-00-00
Unavailable
26
BOLT (22W)
90109-10689-00
Unavailable
27
WASHER, PLATE
92990-10600-00
Unavailable
28
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
29
DAMPER, SUB TANK
24X-22261-00-00
Unavailable
30
HOLDER, SUB TANK
24X-22262-00-00
Unavailable
31
GROMMET
90480-17359-00
Unavailable
32
BOOT, RUBBER
22W-22189-00-00
Unavailable
