Description

Price

1

RADIATOR ASSEMBLY

39K-12460-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

PIPE, BREATHER

22W-12463-00-00

$20.99

4

CLIP, PIPE 6162435600

90467-08004-00

$8.49

5

PIPE 1

39K-12481-00-00

Unavailable

6

PIPE 2

39K-12482-00-00

Unavailable

7

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

8

CLAMP, HOSE

90460-22252-00

Unavailable

9

JOINT

2VE-12446-00-00

Unavailable

10

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

11

. O-RING

93210-16275-00

Unavailable

12

SEAL, PIPE 1

4V2-12494-00-00

Unavailable

13

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$10.49

14

BOLT, WITH WASHER

90119-06080-00

Unavailable

15

GROMMET(663)

90480-15064-00

$9.49

16

COLLAR(2UJ)

90387-061V1-00

Unavailable

17

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

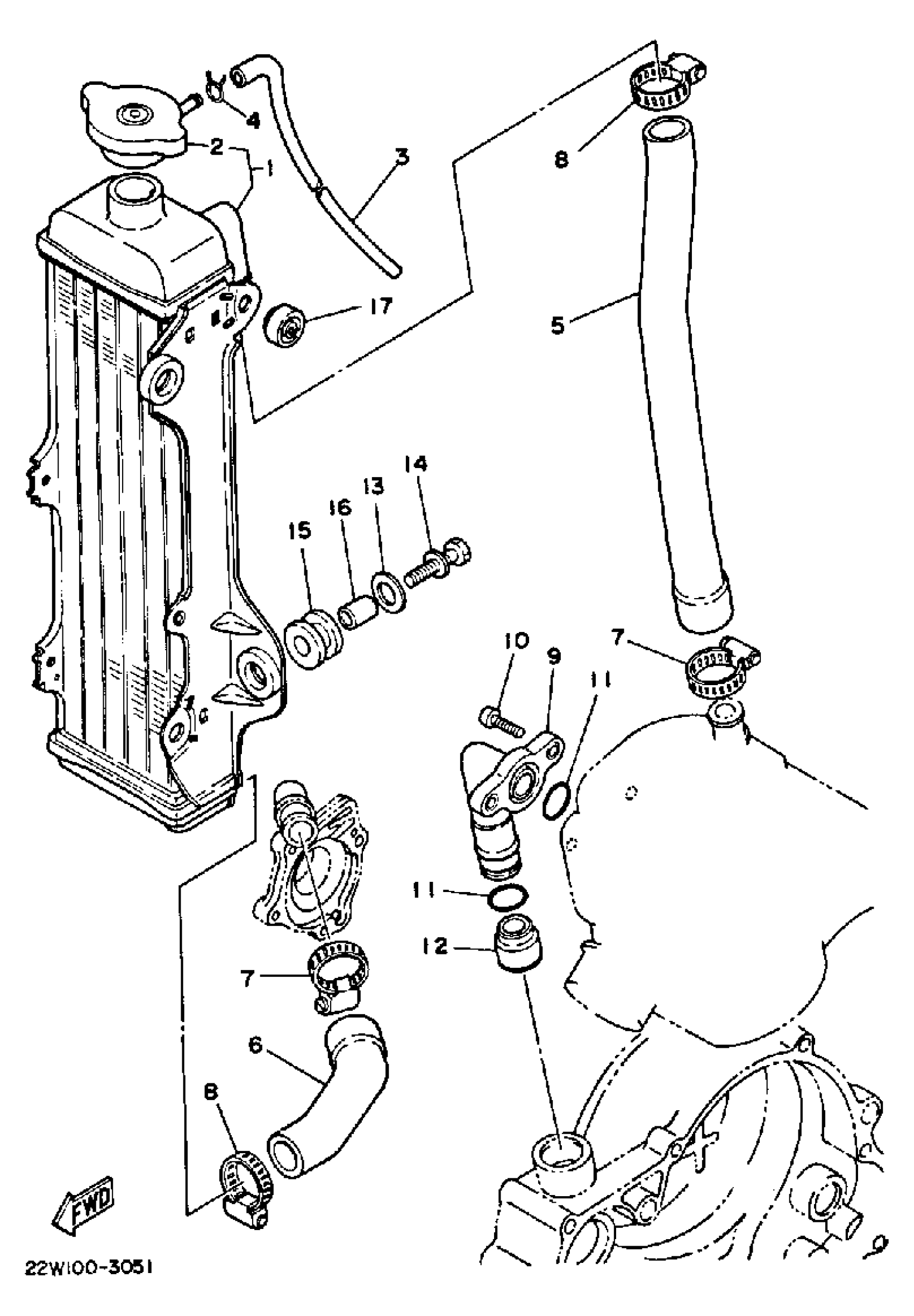

Yamaha YZ80L (YZ80L_N) 39K 1984 RADIATOR-HOSE Diagram

RADIATOR ASSEMBLY

CAP, RADIATOR

PIPE, BREATHER

CLIP, PIPE 6162435600

PIPE 1

PIPE 2

HOSE CLAMP ASSY(3GM)

CLAMP, HOSE

JOINT

SCREW, PAN HEAD(3TJ)

. O-RING

SEAL, PIPE 1

WASHER, PLATE (583 FUEL TANK)

BOLT, WITH WASHER

GROMMET(663)

COLLAR(2UJ)

DAMPER, LOCATING 1
