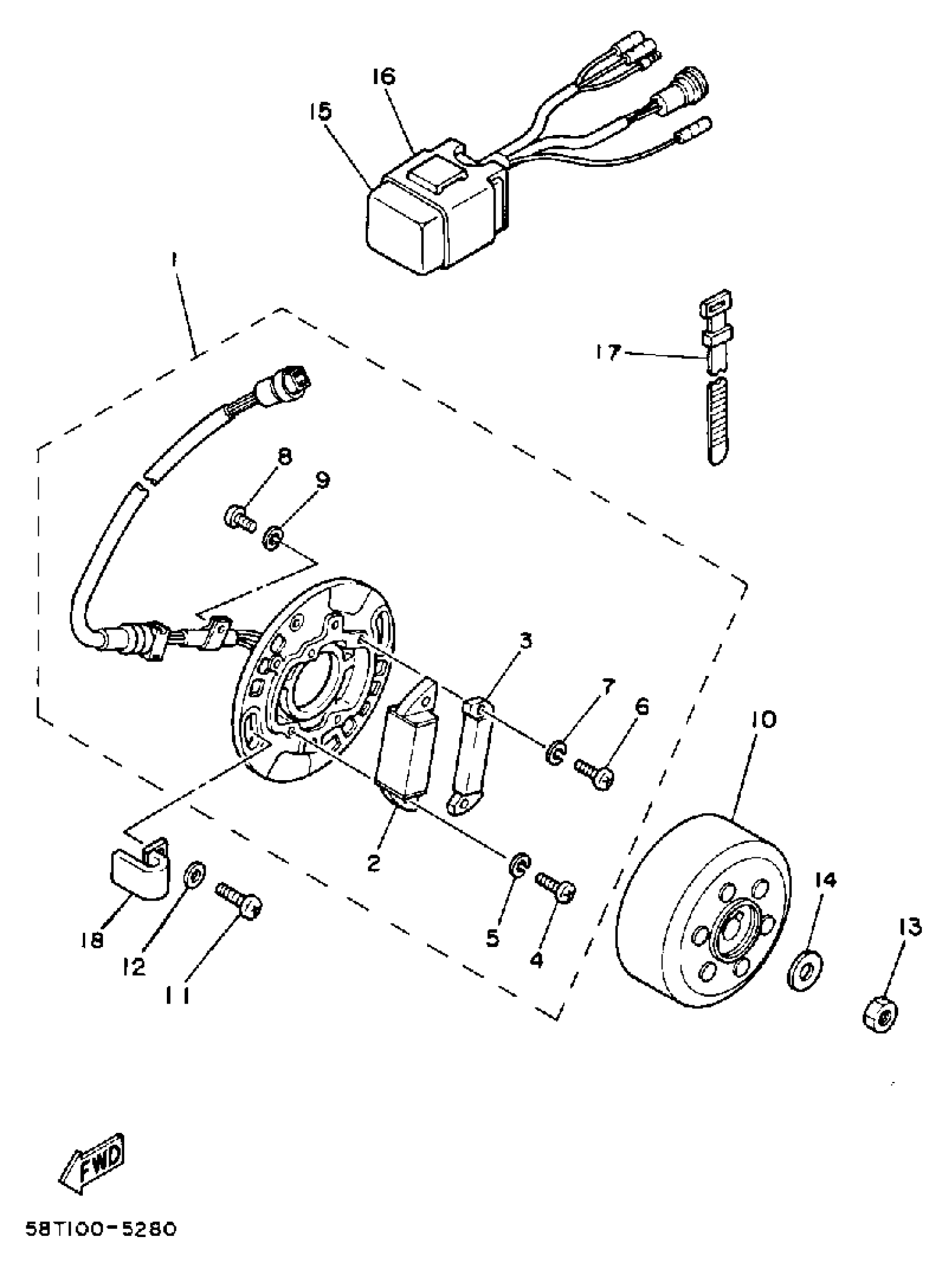

Yamaha YZ80L (YZ80L_N) 39K 1984 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

39K-85510-20-00

Unavailable

2

. COIL SOURCE 2

39K-85512-20-00

Unavailable

3

. COIL, PULSER

39K-85580-20-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

Unavailable

5

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

WASHER, PLAIN (646)

92990-04600-00

$5.99

9

ROTOR ASSEMBLY

39K-85550-20-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

12

NUT(3BM)

95314-10600-00

$2.39

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

WASHER, PLATE (3L6)

90201-10774-00

$9.49

15

CDI UNIT ASSEMBLY

39K-85540-20-00

Unavailable

16

BAND

2A7-85546-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable

18

CLAMP 363154850100

90462-05005-00

Unavailable
