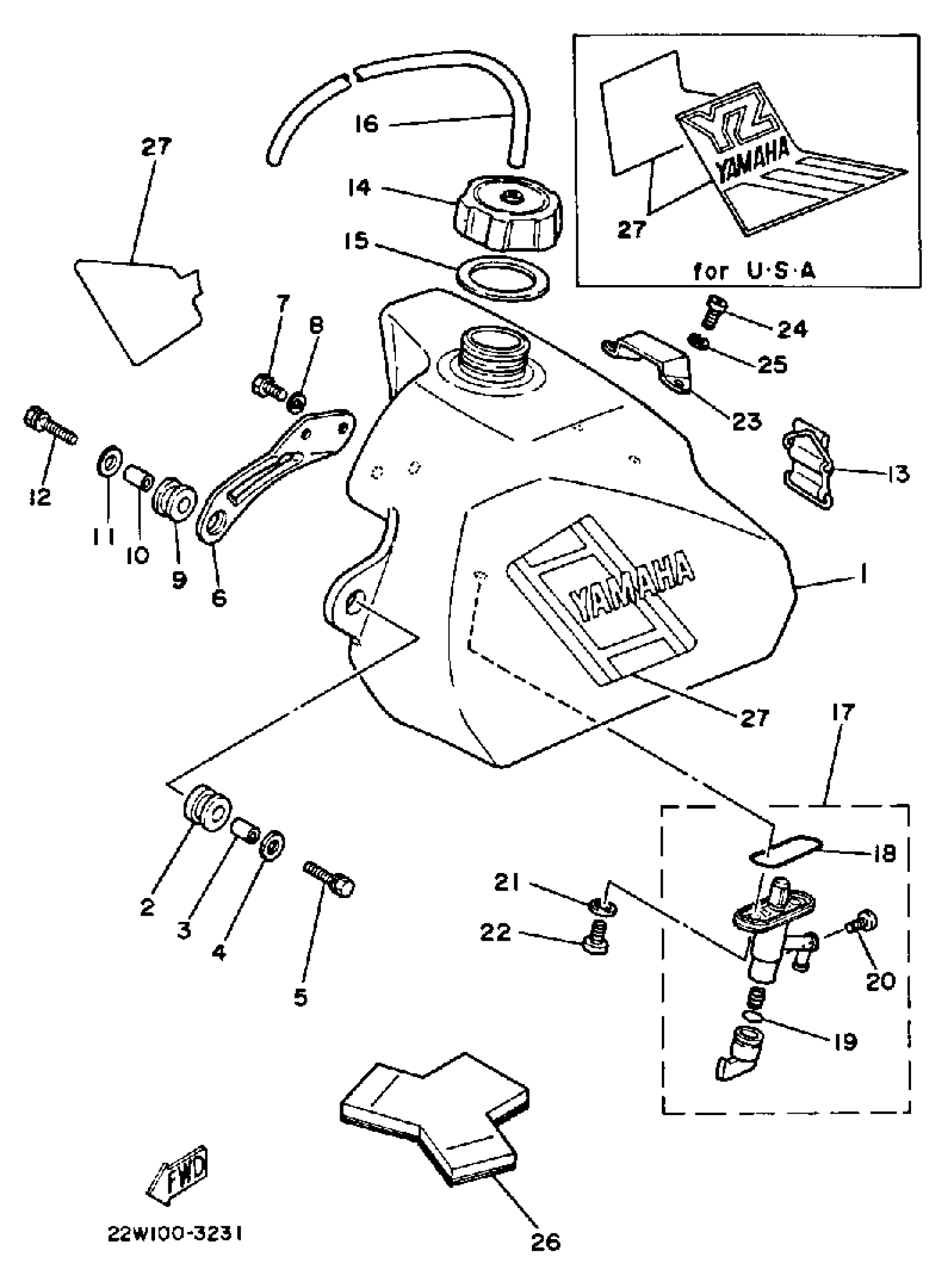

Yamaha YZ80L (YZ80L_N) 39K 1984 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

22W-24110-00-00

Unavailable

1

FUEL TANK

22W-24110-10-00

Unavailable

2

GROMMET (4V1)

90480-18290-00

$8.49

3

COLLAR (1T2)

90387-07598-00

$5.60

4

WASHER PLATE 137241870000

90201-06072-00

$9.49

5

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

6

STAY, FUEL TANK 2

22W-24158-00-00

Unavailable

7

BOLT (661)

97013-06012-00

$5.60

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (1T2)

90387-07598-00

$5.60

11

WASHER PLATE 137241870000

90201-06072-00

$9.49

12

BOLT, WITH WASHER (24X)

90119-06073-00

$8.49

13

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

14

BODY, CAP

5X7-24611-01-00

Unavailable

15

PACKING, CAP

5X7-24612-00-00

Unavailable

16

HOSE (L420)

90445-092K1-00

Unavailable

17

FUEL COCK ASSY

2K5-24500-00-00

Unavailable

18

GASKET, BODY

214-24512-00-00

Unavailable

19

O-RING

1A0-24512-00-00

Unavailable

20

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

BRACKET, SEAT

5X7-2412F-00-00

Unavailable

24

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

DAMPER, LOCATING 3

22W-24183-00-00

Unavailable

27

GRAPHIC SET

(39K-24250-01-00)

Unavailable

27

GRAPHIC SET

(58T-24250-11-00)

Unavailable
