Description

Price

1

HUB, FRONT

39K-25111-00-98

Unavailable

2

SPACER(39K)

90560-12257-00

$17.99

3

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

4

BEARING (32N)

93306-00108-00

$33.99

5

OIL SEAL (18X28X8-462)

93106-18013-00

$11.49

6

PLATE, BRAKE SHOE

39K-25121-00-98

Unavailable

7

BRAKE SHOE KIT

3EC-W253A-00-00

$32.99

8

SPRING TENSION 451251330000

90506-14081-00

$8.49

9

CAMSHAFT

1YT-25351-00-00

Unavailable

10

LEVER, CAMSHAFT 1

39K-25155-00-00

Unavailable

11

BOLT, HEXAGON (462)

90101-06291-00

$8.49

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

BS 80/80-17M37

94108-173G5-00

Unavailable

13

UNAVAILABLE IN PRICE BOOK

94108-177H6-00

Unavailable

14

TUBE (1E2)

94227-17106-00

$21.99

14

TUBE (1E2)

94227-17106-00

$21.99

15

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

15

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

16

RIM 1.40X17

94414-17374-00

Unavailable

17

SPOKE SET, FRONT

39K-25104-00-00

Unavailable

18

SPACER, BEAD

1T1-25194-00-00

Unavailable

19

AXLE, WHEEL

22W-25181-01-00

Unavailable

20

NUT, SELF-LOCKING(1KH)

90185-12134-00

Unavailable

21

WASHER, PLATE

90201-12047-00

Unavailable

22

COLLAR (12T)

90387-126F8-00

Unavailable

23

COVER, HUB DUST

462-25118-00-00

Unavailable

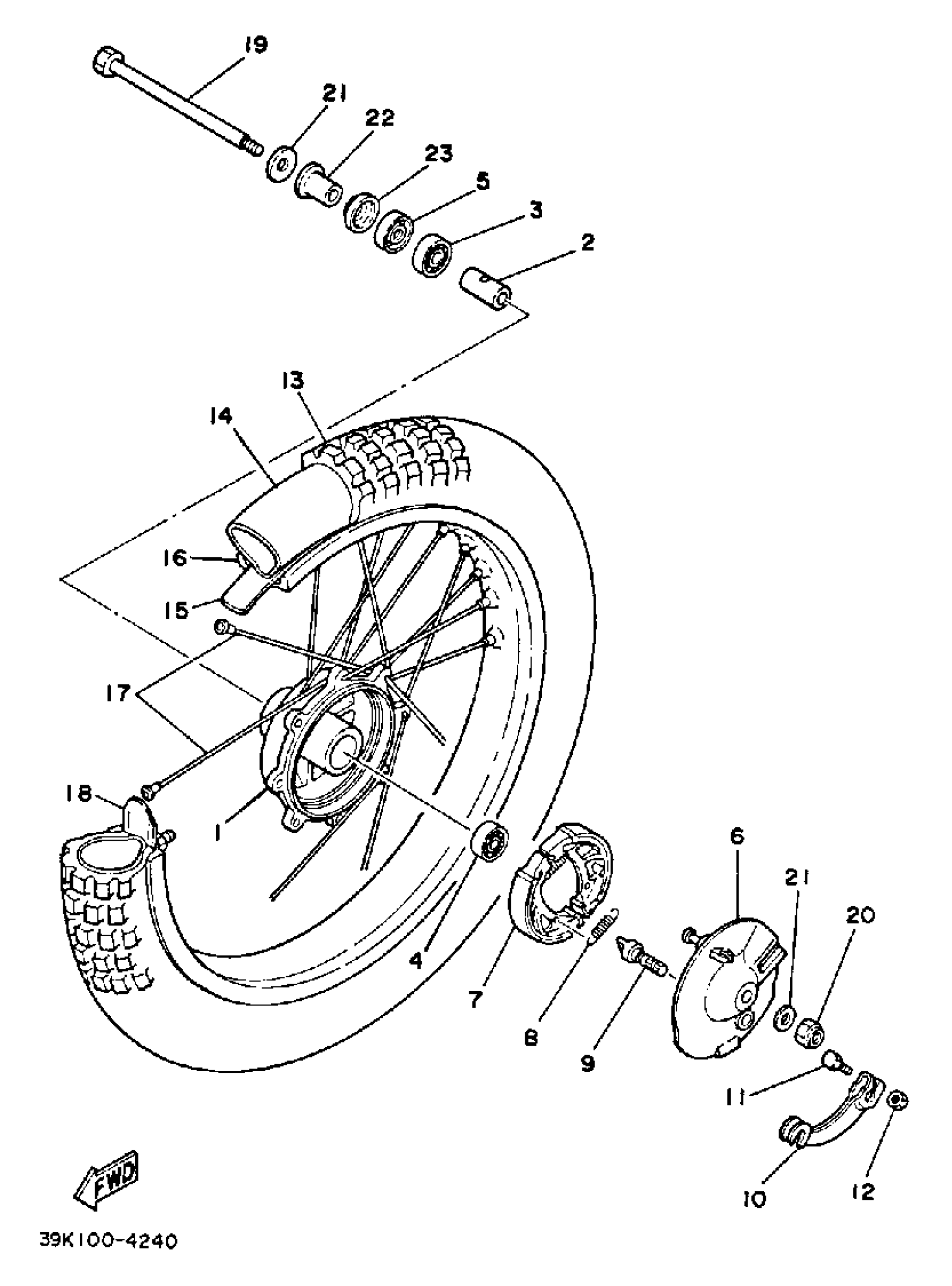

Yamaha YZ80L (YZ80L_N) 39K 1984 FRONT WHEEL Diagram

HUB, FRONT

SPACER(39K)

BRG,R-B 6001 28MM 28G KY

BEARING (32N)

OIL SEAL (18X28X8-462)

PLATE, BRAKE SHOE

BRAKE SHOE KIT

SPRING TENSION 451251330000

CAMSHAFT

LEVER, CAMSHAFT 1

BOLT, HEXAGON (462)

NUT, HEXAGON

BS 80/80-17M37

UNAVAILABLE IN PRICE BOOK

TUBE (1E2)

TUBE (1E2)

BAND, RIM (3.25-17) (3Y0)

BAND, RIM (3.25-17) (3Y0)

RIM 1.40X17

SPOKE SET, FRONT

SPACER, BEAD

AXLE, WHEEL

NUT, SELF-LOCKING(1KH)

WASHER, PLATE

COLLAR (12T)

COVER, HUB DUST
