FRONT FORK (YZ8OL)

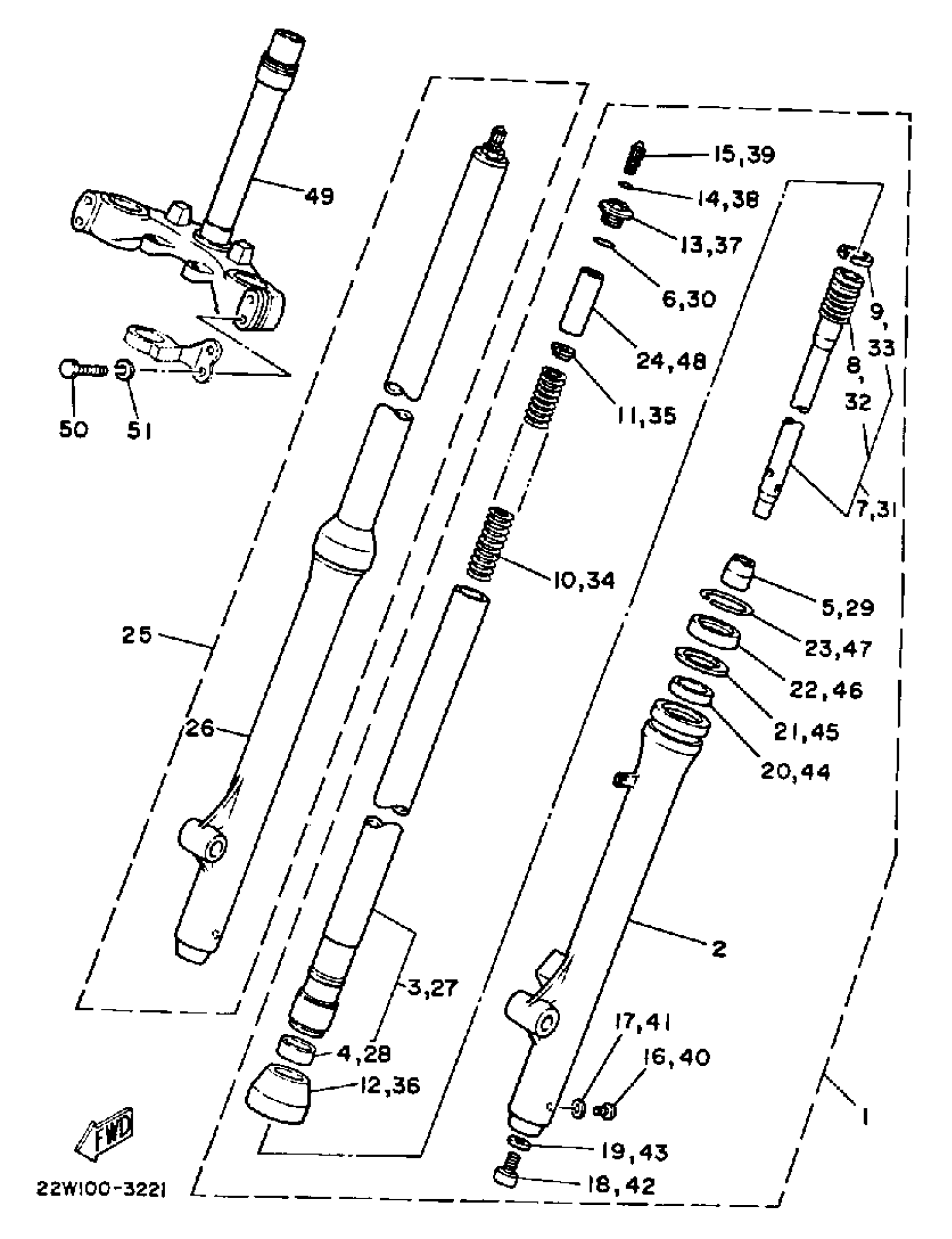

Yamaha YZ80L (YZ80L_N) 39K 1984 FRONT FORK (YZ8OL) Diagram
#
1
FORK ASSY
39K-23102-L0-00
Unavailable
2
. FORK TUBE
39K-23126-L0-00
Unavailable
3
. INNER TUBE 1
58T-23110-L0-00
Unavailable
4
.. PISTON, FRONT FORK
22W-2312K-00-00
Unavailable
5
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
7
. CYLINDER, FRONT FORK
39K-23170-L0-00
Unavailable
8
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
9
.. RING, PISTON FRONT FORK
22W-23157-L0-00
Unavailable
10
. SPRING, FRONT FORK (K5023)
39K-23141-00-00
Unavailable
10
. SPRING, FRONT FORK HARD (K5025)
39K-23141-20-00
Unavailable
11
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
12
. SEAL, DUST
22W-23144-L0-00
Unavailable
13
. BOLT, CAP
22W-23111-L0-00
Unavailable
15
AIR VALVE COMP.
23X-23190-L0-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
19
GASKET
509-23158-L0-00
Unavailable
20
METAL, SLIDE 1
4HC-23125-20-00
Unavailable
21
WASHER, OIL SEAL
22W-23146-L0-00
Unavailable
22
OIL SEAL
22W-23145-L0-00
Unavailable
23
RING, SNAP
22W-23153-L0-00
Unavailable
24
. SPACER
58T-23118-L0-00
Unavailable
24
. SPACER
58T-23118-L0-00
Unavailable
25
FRONT FORK ASSY (RH)
39K-23103-LO-00
Unavailable
26
. TUBE, OUTER 2
39K-23136-L0-00
Unavailable
27
. INNER TUBE 1
58T-23110-L0-00
Unavailable
28
.. PISTON, FRONT FORK
22W-2312K-00-00
Unavailable
29
. SPINDLE, TAPER
39K-23173-00-00
Unavailable
31
. CYLINDER, FRONT FORK
39K-23170-L0-00
Unavailable
32
.. SPRING, REBOUND
509-23151-L0-00
Unavailable
33
.. RING, PISTON FRONT FORK
22W-23157-L0-00
Unavailable
34
. SPRING, FRONT FORK (K5023)
39K-23141-00-00
Unavailable
34
. SPRING, FRONT FORK HARD (K5025)
39K-23141-20-00
Unavailable
35
. SEAT, SPRING UPPER
583-23142-00-00
Unavailable
36
. SEAL, DUST
22W-23144-L0-00
Unavailable
38
. BOLT, CAP
22W-23111-L0-00
Unavailable
39
AIR VALVE COMP.
23X-23190-L0-00
Unavailable
40
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
41
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
42
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
43
GASKET
509-23158-L0-00
Unavailable
44
METAL, SLIDE 1
4HC-23125-20-00
Unavailable
45
WASHER, OIL SEAL
22W-23146-L0-00
Unavailable
46
OIL SEAL
22W-23145-L0-00
Unavailable
47
RING, SNAP
22W-23153-L0-00
Unavailable
48
. SPACER
58T-23118-L0-00
Unavailable
48
. SPACER
58T-23118-L0-00
Unavailable
49
UNDER BRACKET COMP
39K-23340-L0-00
Unavailable
50
BOLT
97013-08035-00
Unavailable
51
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
