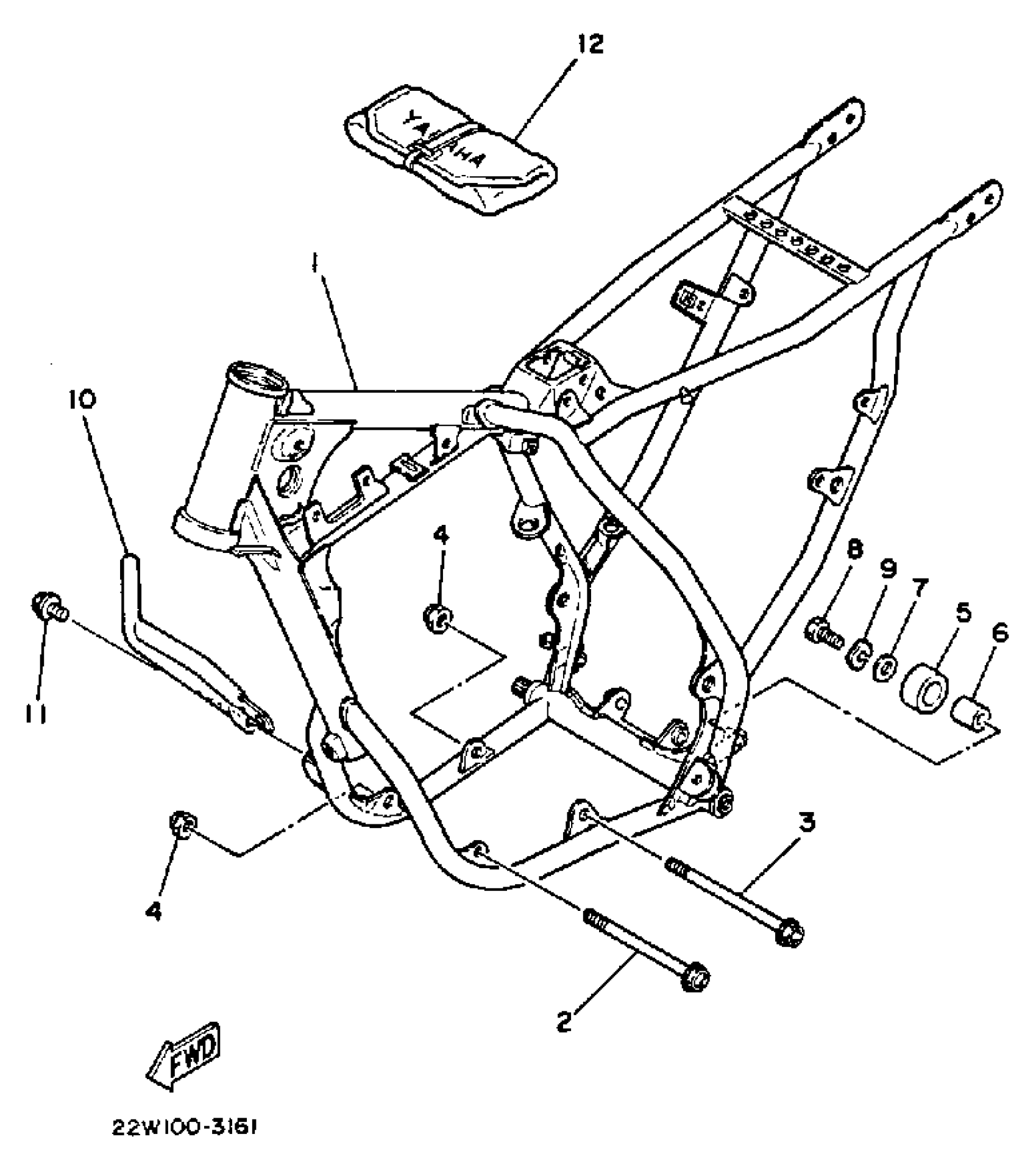

Yamaha YZ80L (YZ80L_N) 39K 1984 FRAME Diagram

#

Description
Price

1

FRAME

(39K-21110-00-33)

Unavailable

1

FRAME

(39K-21110-00-FH)

Unavailable

2

BOLT, FLANGE

95817-08125-00

$7.61

3

BOLT,FLANGE

95817-08135-00

Unavailable

4

NUT, SELF-LOCKING

90185-08169-00

$6.62

5

TENSIONER

30X-22178-00-00

$29.42

6

BUSH

4V4-22184-00-00

$3.32

7

WASHER, PLATE (4X4)

90201-067A0-00

$6.22

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER(6TA)

92907-06700-00

$1.24

10

GUARD, RADIATOR

39K-2174F-00-00

Unavailable

11

BOLT, FLANGE(2UJ)

95024-08012-00

$5.75

12

TOOL KIT

(39K-28100-00-00)

Unavailable
