Description

Price

1

FENDER, FRONT

5X2-21511-00-00

Unavailable

1

FENDER, FRONT

5X2-21511-10-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

3

PLATE 1

22W-21523-00-00

Unavailable

4

WASHER (3R8)

90209-06187-00

$8.49

5

FENDER, REAR

22W-21611-00-00

Unavailable

5

FENDER, REAR

22W-21611-10-00

Unavailable

6

SCREW, PAN

98507-06014-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE

90201-06020-00

$9.49

9

WASHER, PLATE (12X)

90201-087F0-00

$5.60

10

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

11

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

12

NUT, SELF-LOCKING

90185-08169-00

$8.49

13

GUARD, MUD

39K-21620-01-00

Unavailable

14

FLAP

4V0-21621-00-00

Unavailable

15

BAND, SWITCH CORD

437-83936-01-00

Unavailable

15

BAND, SWITCH CORD

437-83936-01-00

Unavailable

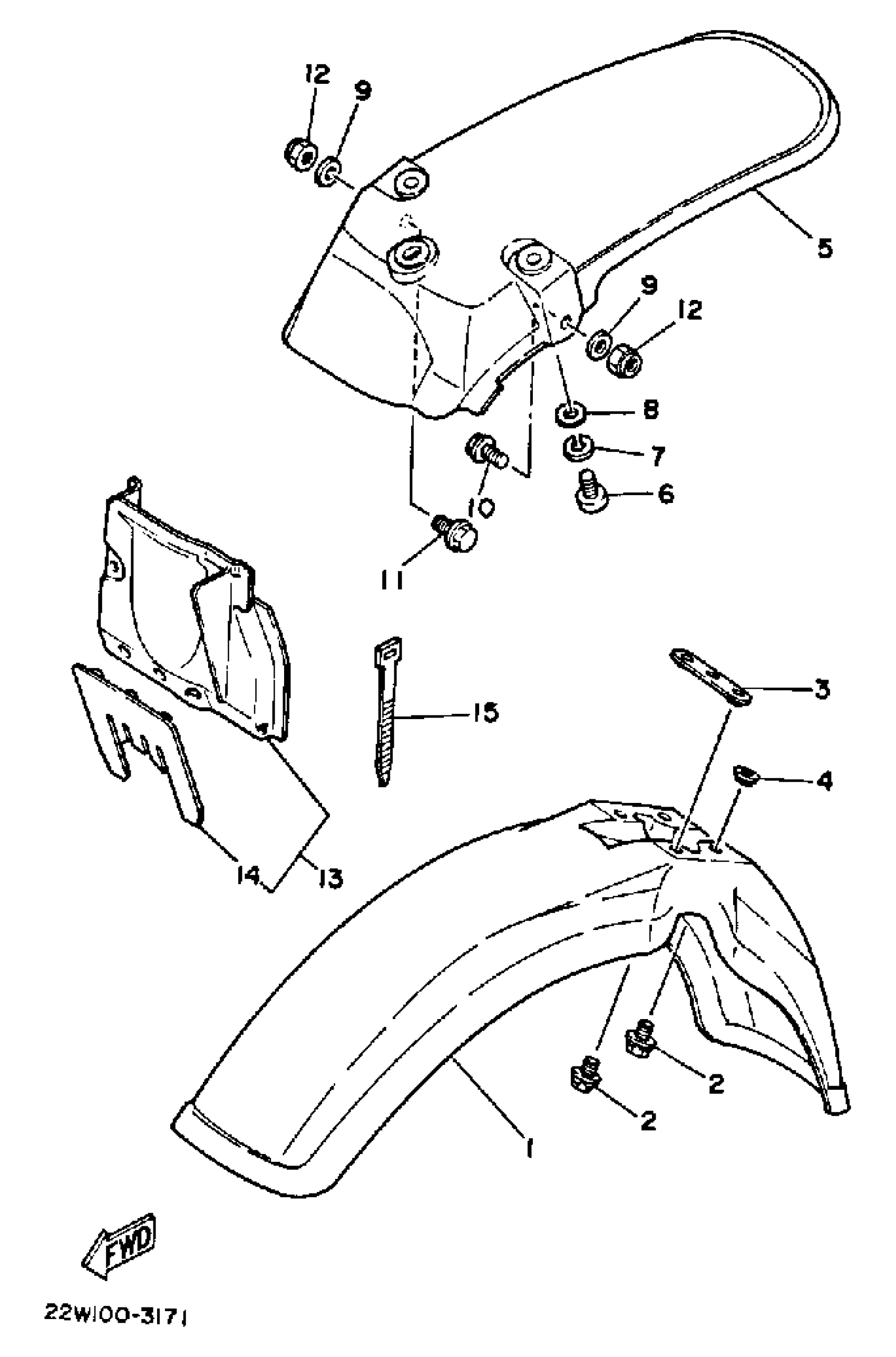

Yamaha YZ80L (YZ80L_N) 39K 1984 FENDER Diagram

FENDER, FRONT

FENDER, FRONT

BOLT, WITH WASHER (10V)

PLATE 1

WASHER (3R8)

FENDER, REAR

FENDER, REAR

SCREW, PAN

WASHER, SPRING

WASHER, PLATE

WASHER, PLATE (12X)

BOLT, FLANGE(4LN)

BOLT, FLANGE(8AB)

NUT, SELF-LOCKING

GUARD, MUD

FLAP

BAND, SWITCH CORD

BAND, SWITCH CORD
