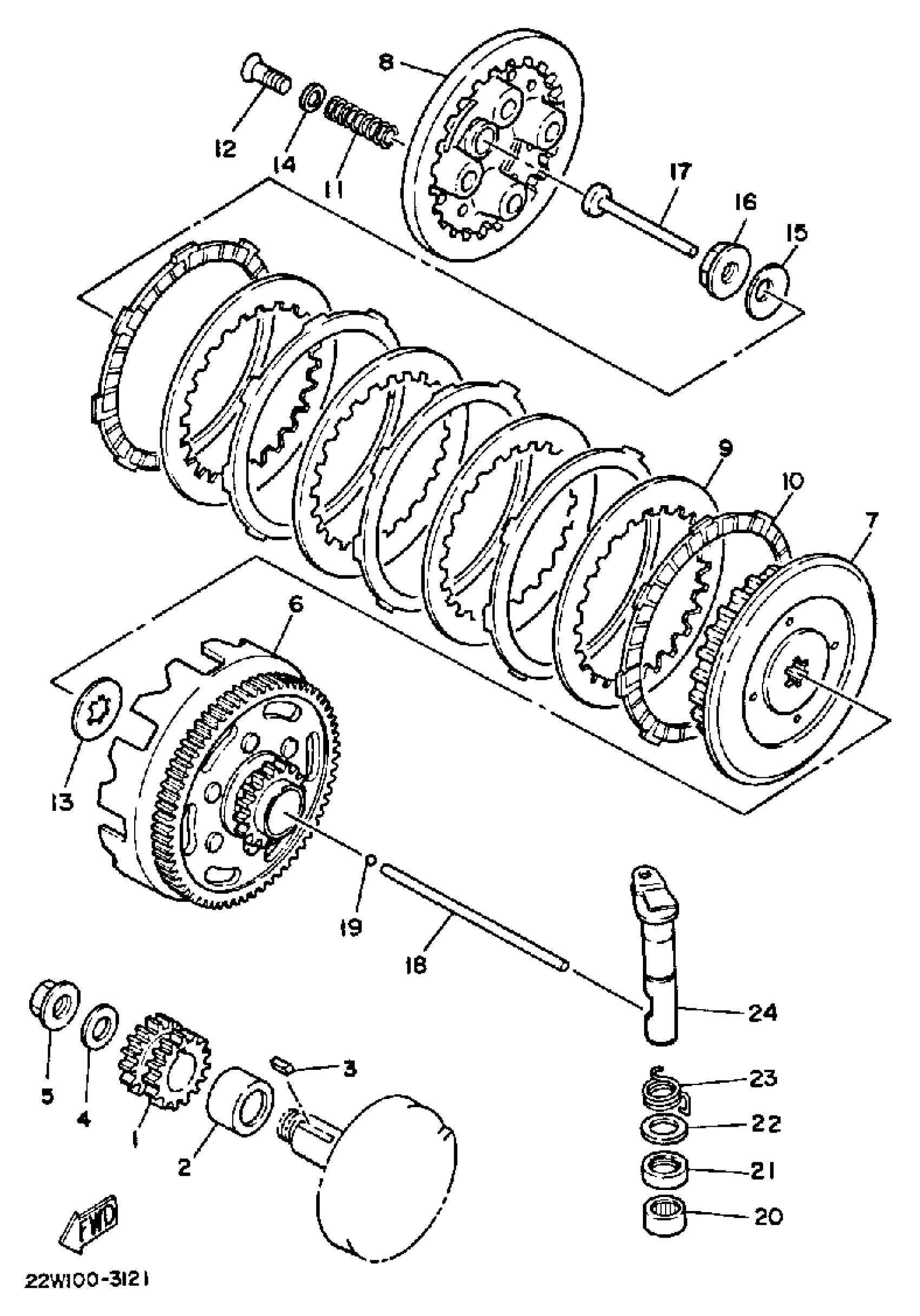

Yamaha YZ80L (YZ80L_N) 39K 1984 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
39K-16111-00-00
Unavailable
1
GEAR, PRIMARY DRIVE
5X2-16111-00-00
Unavailable
2
COLLAR
90387-202F0-00
Unavailable
4
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
5
NUT (4V2)
90179-12335-00
Unavailable
6
PRI DRIVEN GEAR COMP.
39K-16150-00-00
Unavailable
6
PRI DRIVEN GEAR COMP. (4V1-16150-00)
4V1-16150-01-00
Unavailable
7
BOSS, CLUTCH
1V1-16371-02-00
Unavailable
8
PLATE, PRESSURE
4Y2-16351-01-00
Unavailable
12
SCREW, FLAT
98707-05020-00
Unavailable
13
PLATE, THRUST 1
4V0-16154-00-00
Unavailable
14
WASHER, PLATE
90201-05775-00
Unavailable
15
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
16
NUT(1EE)
90179-12659-00
Unavailable
17
ROD,PUSH (1)
137-16356-00-00
Unavailable
18
ROD, PUSH 2
2X3-16357-00-00
Unavailable
19
BALL
93503-16003-00
Unavailable
20
BEARING, CYLINDRICAL (3R3)
93315-21429-00
Unavailable
21
OIL SEAL (2K8)
93109-14021-00
Unavailable
22
WASHER, PLAIN (434)
90201-14411-00
Unavailable
23
SPRING, TORSION
90508-18463-00
Unavailable
24
AXLE, PUSH LEVER
58T-16382-00-00
Unavailable
24
AXLE, PUSH LEVER
58T-16382-00-00
Unavailable
