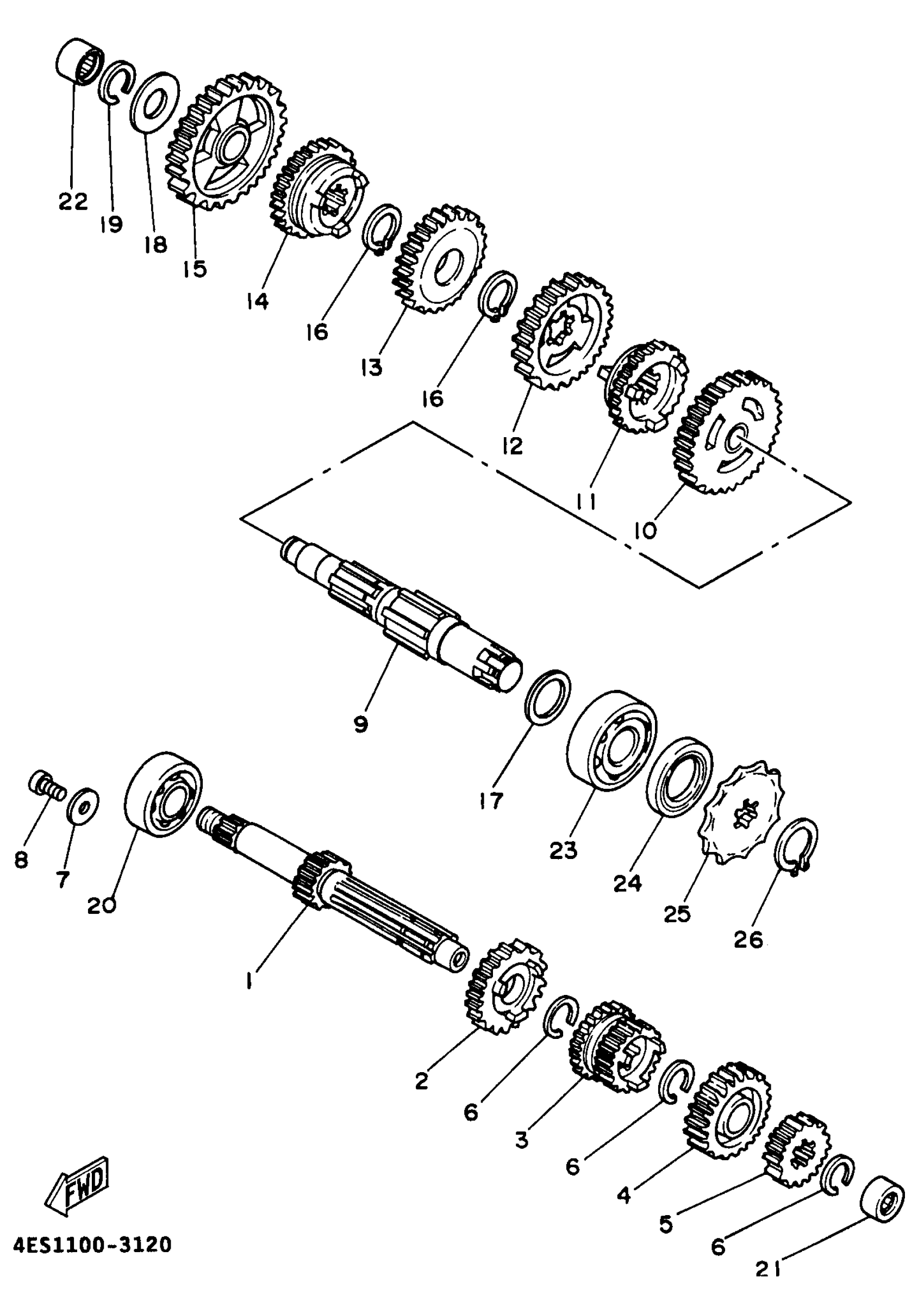

Yamaha YZ80K1 (YZ80) 1998 TRANSMISSION Diagram

AXLE, MAIN

4ES-17411-01-00

Unavailable

GEAR, 5TH PINION

4ES-17151-10-00

$79.99

GEAR, 3RD PINION

4ES-17131-10-00

$124.99

GEAR, 6TH PINION

4ES-17161-10-00

Unavailable

GEAR, 2ND PINION

4ES-17121-01-00

Unavailable

CIRCLIP (2K7)

93440-17064-00

$8.49

WASHER, PLATE

90201-06020-00

$9.49

SCREW, PAN

98517-06012-00

$3.78

AXLE, DRIVE

4ES-17421-00-00

Unavailable

GEAR, 2ND WHEEL

4ES-17221-01-00

Unavailable

GEAR, 6TH WHEEL

4ES-17261-01-00

Unavailable

GEAR, 3RD WHEEL

B4B-17231-00-00

Unavailable

GEAR, 4TH WHEEL

4ES-17241-00-00

Unavailable

GEAR, 5TH WHEEL

4ES-17251-00-00

$108.99

GEAR, 1ST WHEEL

1SN-17211-00-00

$85.99

CIRCLIP (525)

93410-20038-00

Unavailable

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

CIRCLIP

93440-15012-00

Unavailable

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

BEARING, CYLINDRICAL(39K)

93317-11245-00

Unavailable

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

BEARING(1YW)

93306-20461-00

Unavailable

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

DRIVE SPROCKET ASSY (12T)

3TU-17460-00-00

Unavailable

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

CIRCLIP(13H)

99009-18400-00

Unavailable
