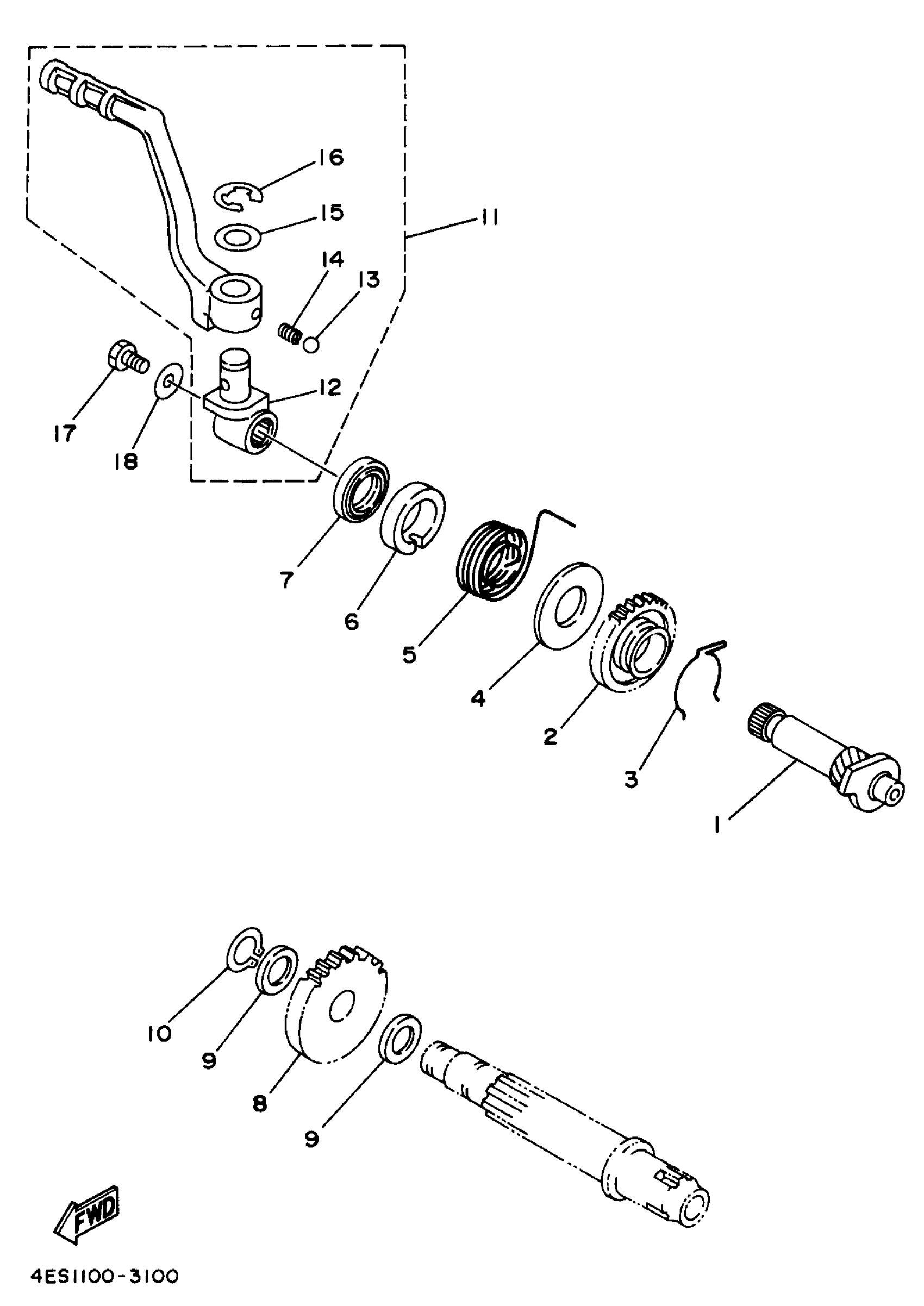

Yamaha YZ80K1 (YZ80) 1998 STARTER Diagram

KICK AXLE ASSY

4ES-15660-00-00

Unavailable

GEAR, KICK

4ES-15641-00-00

Unavailable

CLIP(4ES)

90468-23194-00

$9.49

WASHER, PLATE(2UV)

90201-176L4-00

$9.49

SPRING, TORSION(2UV)

90508-26750-00

$12.49

GUIDE, SPRING

4ES-15664-00-00

$30.99

OIL SEAL (15A)

93102-17263-00

$10.49

GEAR, KICK IDLE

4ES-15651-00-00

Unavailable

WASHER, PLATE (10X)

90201-124F8-00

$9.49

CIRCLIP(10Y)

99009-12400-00

$3.59

KICK CRANK ASSY

4ES-15620-00-00

Unavailable

. BOSS, KICK CRANK

4ES-15621-00-00

Unavailable

BALL (12R)

93507-32031-00

$4.73

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

WASHER, PLATE (583)

90201-12631-00

$9.49

CIRCLIP (137)

93430-08007-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

WASHER, PLATE

90201-06020-00

Unavailable
