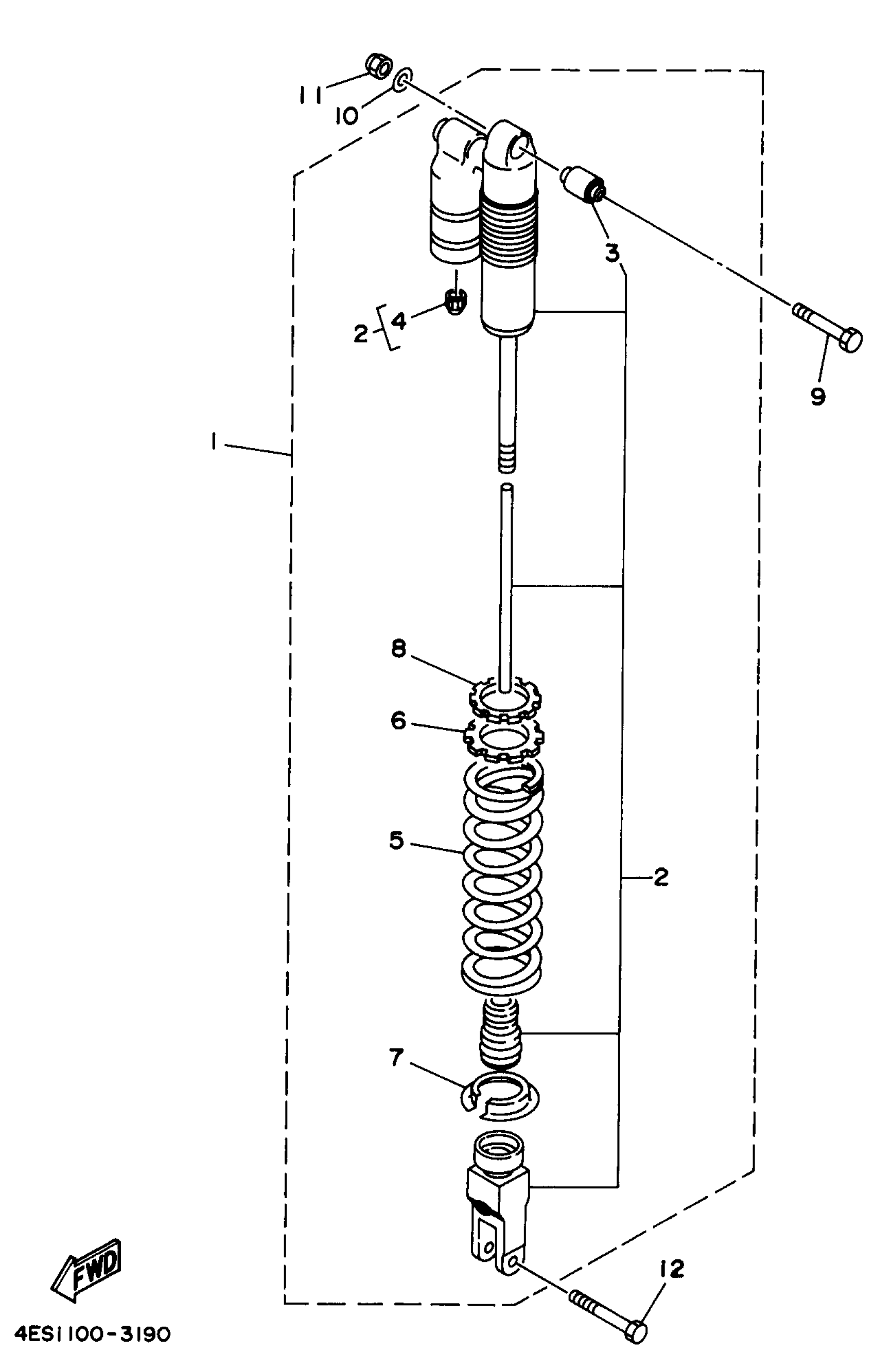

Yamaha YZ80K1 (YZ80) 1998 REAR SUSPENSION Diagram

SHOCK ABSORBER ASS

4ES-22210-D0-00

Unavailable

DAMPER SUB ASSY

4ES-22201-50-00

Unavailable

BUSH, REAR SHOCK ABSORBER

4ES-22216-00-00

$37.99

CAP, AIR VALVE

58T-23184-L0-00

$7.99

SPRING (K=5.0)

4ES-22212-F0-00

Unavailable

GUIDE, SPRING 1

4ES-22214-00-00

Unavailable

GUIDE, SPRING 1

3JD-22214-00-00

$28.99

NUT 1

4ES-22251-00-00

Unavailable

BOLT (22W)

90109-10729-00

$7.49

WASHER(6TA)

92907-10600-00

$8.49

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

BOLT, WASHER BASED(3XJ)

90105-10614-00

$12.49
